CHAPTER 4: CROSSFIRE FUNCTION
4.1 R
EQUIREMENTS
Only Windows XP/Vista supports CrossFire (Dual Video) function.
Two identical CrossFire-ready graphics cards that are ATI certified.
The graphics card driver should support CrossFire technology.
The power supply unit must provide at least the minimum power required by
the system, or the system will be unstable. A power supply above 500W is
recommended under CrossFire mode.
4.2 INSTALLING CROSSFIRE-READY GRAPHICS CARDS

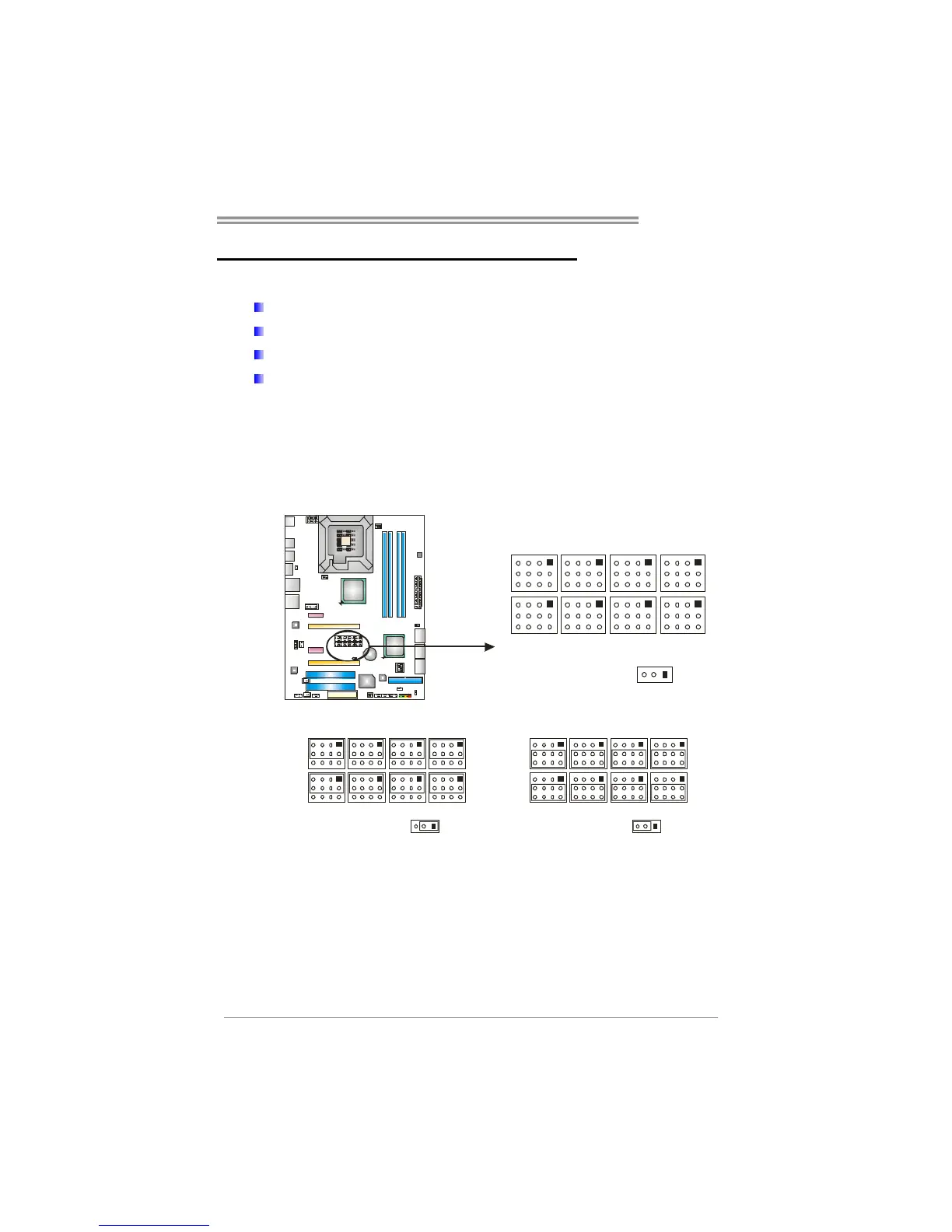

Step 1: Power off the computer and set JPE1~JPE9 to Pin2-3 close.
JPE1 JPE3 JPE5 JPE7
JPE9
1
3
1
3
13
1
3
1
3
JPE2 JPE4 JPE6 JPE8
JPE1 JPE3 JPE5 JPE7
JPE 9
1
3
1
3
13
1
3
1
3
JPE2 JPE4 JPE6 JPE8
Pin 1-2 Close
Norma l Ope ration
PEX16_1: x16 Speed
PEX16_2: Not Functional
JPE1 JPE3 JPE5 JPE7
JPE 9
1
3
1
3
13
1
3
1
3
JPE2 JPE4 JPE6 JPE8
Pin 2-3 Close:
CrossFire Operation
PEX16_1: x8 Speed
PEX16_2: x8 Speed

Biostar TPower I45 Specifications

General

Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron Dual-Core, Intel Pentium Dual-Core
USB 2.0 connectors	3
S/PDIF out connector	Yes
Number of SATA connectors	6
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	-
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888S
Motherboard form factor	ATX
Compatible operating systems	Windows 2000/XP/Vista
RAID levels	0, 1, 5, 10
LAN controller	Realtek RTL8111C
Networking features	Gigabit Ethernet
