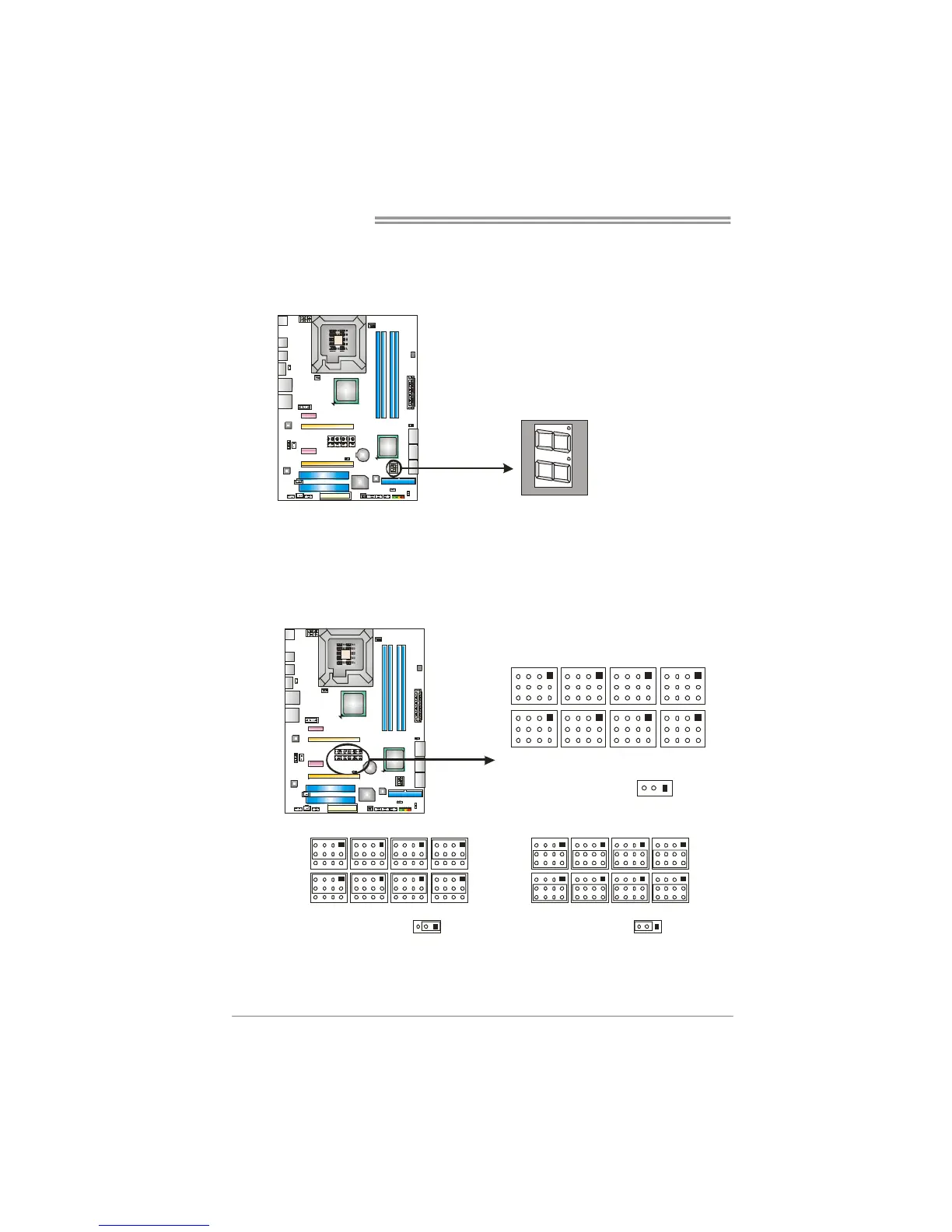

BIOS POST Code/CPU Temperature Indicator
This indicator will show POST code while booting; after the booting sequence, it
will show current CPU temperature. Please refer to Chapter 7.4 for all the
BIOS POST codes.
JPE1~JPE9: CrossFire Switch Jumpers
The setting of these jumpers determines the operation mode of PEX16_1 and
PEX16_2. If you want to use the CrossFire function, these jumpers should be
set to Pin 2-3 close; and PEX16_1 and PEX16_2 will both run with x8 speed. If
these jumpers are set to Pin 1-2 close, PEX16_1 will run with x16 speed and
PEX16_2 will not be functional.
JPE1 JPE3 JPE5 JPE7
JPE9
1
3
1
3
13
1
3
1
3
JPE2 JPE4 JPE6 JPE8
JPE1 JPE3 JPE5 JPE7
JPE 9
1
3
1
3
13
1
3
1
3
JPE2 JPE4 JPE6 JPE8
Pin 1-2 Close
Norma l Ope ration
PEX16_1: x16 Speed
PEX16_2: Not Functional
JPE1 JPE3 JPE5 JPE7
JPE 9
1
3
1
3
13
1
3
1
3
JPE2 JPE4 JPE6 JPE8
Pin 2-3 Close:
CrossFire Operation
PEX16_1: x8 Speed
PEX16_2: x8 Speed

Biostar TPower I45 Specifications

General

Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron Dual-Core, Intel Pentium Dual-Core
USB 2.0 connectors	3
S/PDIF out connector	Yes
Number of SATA connectors	6
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	-
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888S
Motherboard form factor	ATX
Compatible operating systems	Windows 2000/XP/Vista
RAID levels	0, 1, 5, 10
LAN controller	Realtek RTL8111C
Networking features	Gigabit Ethernet
