Biostar TPower I45 User Manual

TPower I45
19

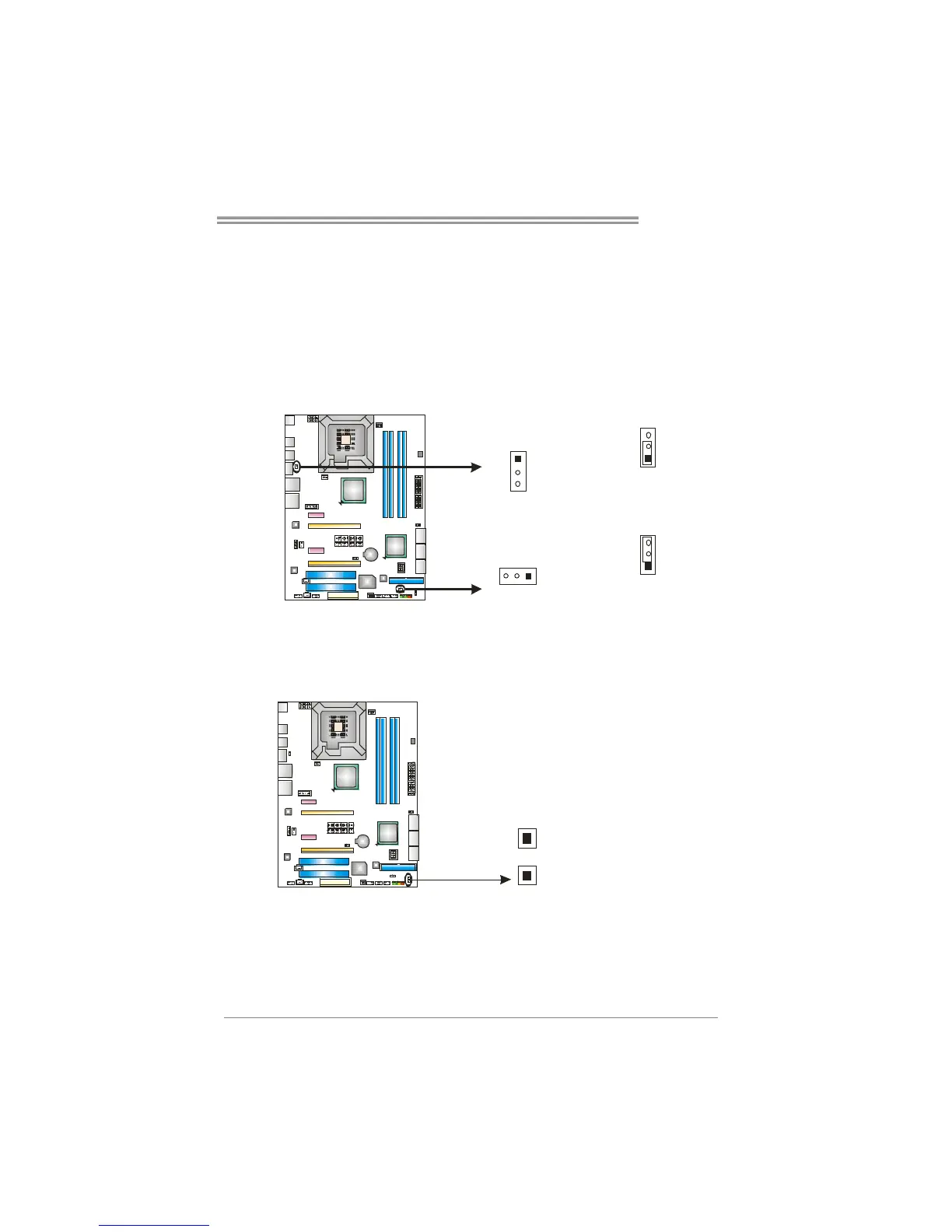

JUSBV1/JUSBV2: Power Source Headers for USB Ports
Pin 1-2 Close:
JUSBV1: +5V for USB ports at JUSB1/JUSB2/JRJ45USB1.
JUSBV2: +5V for USB ports at JUSB3/JUSB4/JUSB5.
Pin 2-3 Close:
JUSBV1: +5V STB for USB ports at JUSB1/JUSB2/ JRJ45USB1.
JUSBV2: +5V STB for USB ports at JUSB3/JUSB4/JUSB5.
1
3
Pin 1-2 close
13
1
3
JUSBV1
JUSBV2
1
3
Pin 2-3 close
On-Board Buttons
There are 2 on-board buttons.
RSTSW2
PWRSW1
PWRSW1:
This is an on-board Power Switch button.
RSTSW2:
This is an on-board Reset button.

Biostar TPower I45 Specifications

General

Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron Dual-Core, Intel Pentium Dual-Core
USB 2.0 connectors	3
S/PDIF out connector	Yes
Number of SATA connectors	6
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	-
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888S
Motherboard form factor	ATX
Compatible operating systems	Windows 2000/XP/Vista
RAID levels	0, 1, 5, 10
LAN controller	Realtek RTL8111C
Networking features	Gigabit Ethernet
