Biostar TPower I45 User Manual

TPower I45
7
2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.

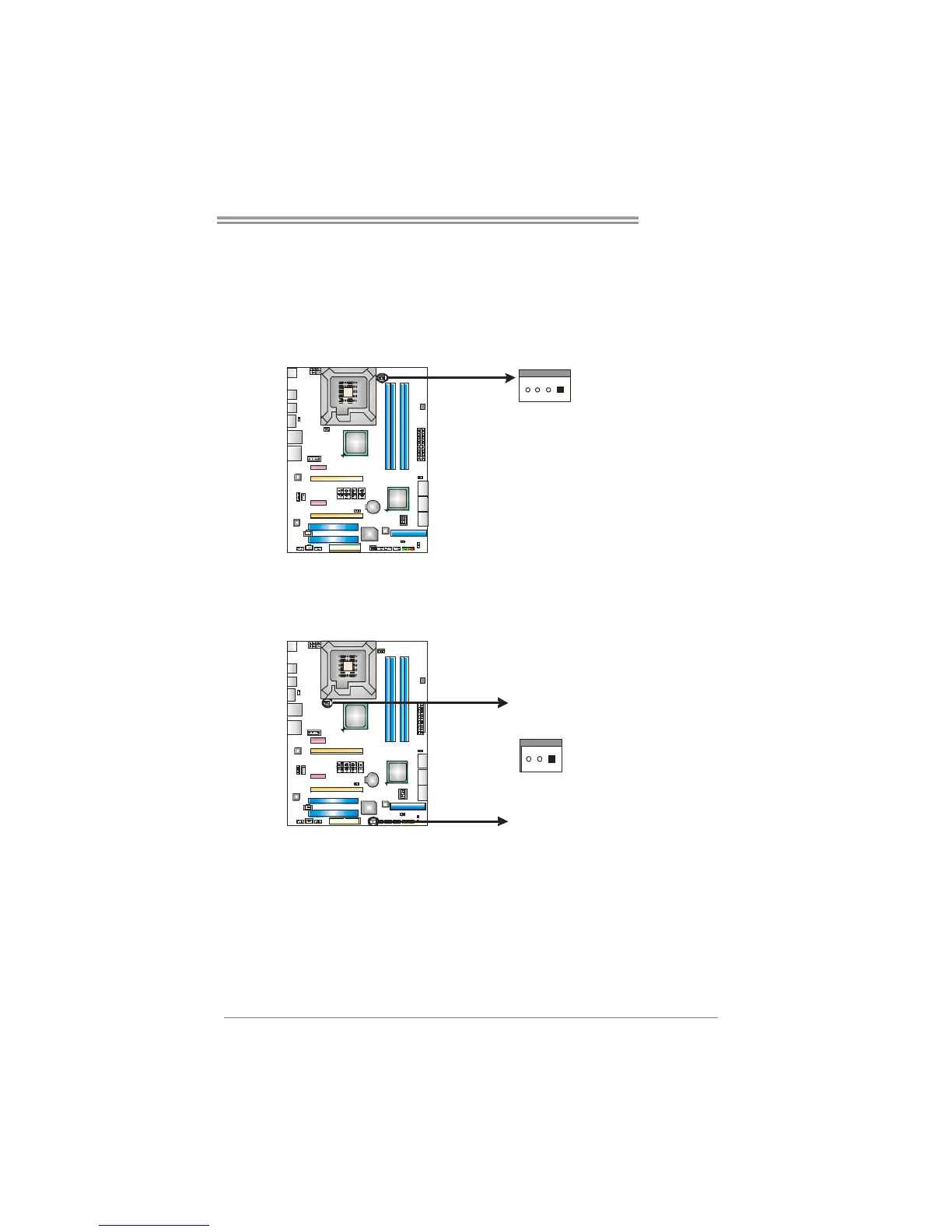

JCFAN1: CPU Fan Header
Pin
Assignment
1 Ground
2 +12V
3
FAN RPM rate
sense
14
4 Smart Fan
Control
JNFAN1: NorthBridge Fan Header
JSFAN1: System Fan Header
Pin
Assignment
1 Ground
2 +12V
13
JSFAN1
JNFAN1
3 FAN RPM rate
sense
Note:
The JNFAN1/JSFAN1 support 3-pin head connectors, and the JCFAN1 supports 4-pin
head connector. When connecting with wires onto connectors, please note that the red
wire is the positive and should be connected to pin#2, and the black wire is Ground and
should be connected to GND.

Biostar TPower I45 Specifications

General

Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron Dual-Core, Intel Pentium Dual-Core
USB 2.0 connectors	3
S/PDIF out connector	Yes
Number of SATA connectors	6
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	-
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888S
Motherboard form factor	ATX
Compatible operating systems	Windows 2000/XP/Vista
RAID levels	0, 1, 5, 10
LAN controller	Realtek RTL8111C
Networking features	Gigabit Ethernet
