BIQU B1 - Mounting Z-Axis Limit Module

16
WWW.BIQU.EQUIPMENT
Step 18
1. M4×16 hexagon round-head screws（1pcs）
2. Z axis limit module

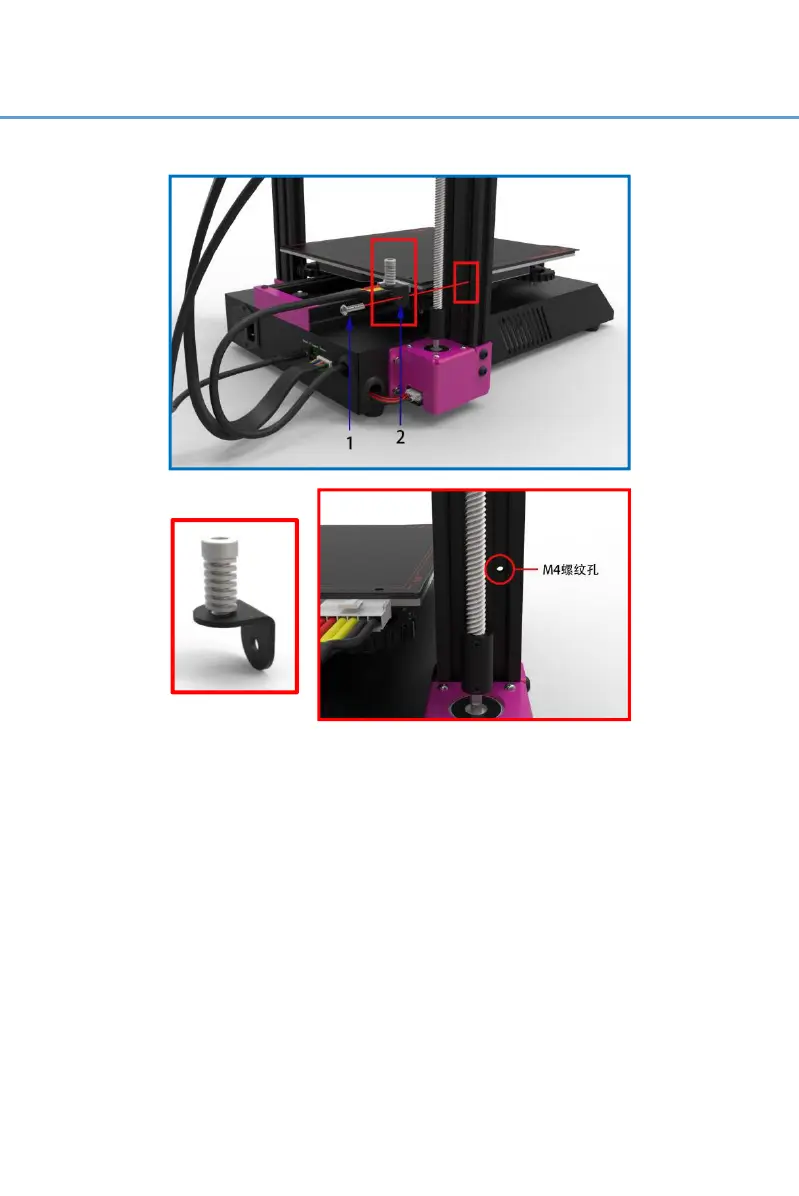

Fixing the Z-axis limit module on the aluminum profile by using the
M4 threaded holes and the above screws.
Awareness: Please check all the screws and make sure that they are
properly installed.
Installation Finished！
