Biral ModulA RED Series User Manual

961578_00
961579_00
961580_00
BA

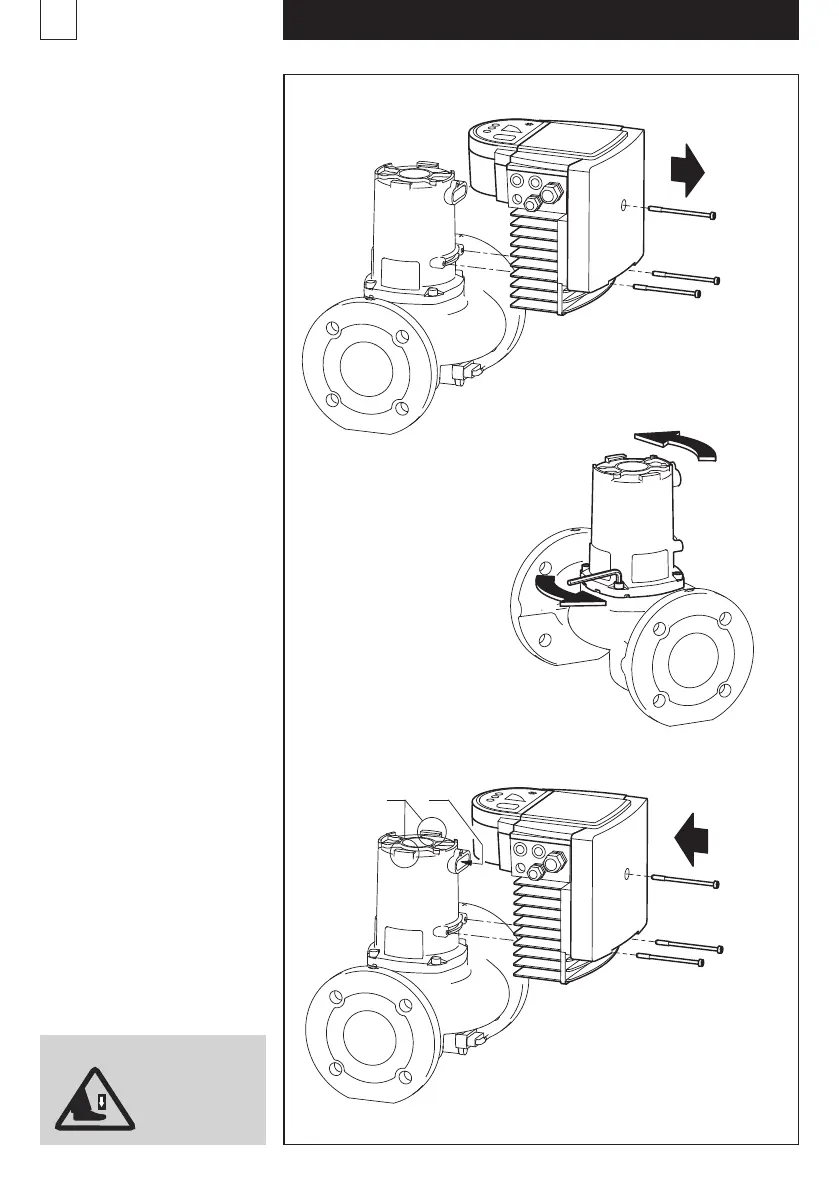

4.3.1 Rotate the pump head
➀ Remove the three Torx
screws
➁ Carefully pull out
the electronics
➂ Remove the four inner
hexagonal screws
➃ Turn the pump head
carefully in the desired
position.
(If the pump head is firmly
connected with the pump
casing, loosen the pump
head via light blows
from a rubber hammer.)
➄ Put in four inner hexagonal
screws and tighten. (XNm)
➅ Carefully push
in the electronics:
«A»: connector plug
«B»: Holder
➆ Put in three Torx screws
and tighten (XNm)
15
english
Warning
Do not drop
the disassem-
bled pump
parts!
➀
➁
➃
➄
➅
➆
➂
90°/180°/270°

Biral ModulA RED Series Specifications

General

Brand	Biral
Model	ModulA RED Series
Category	Water Pump
Language	English
