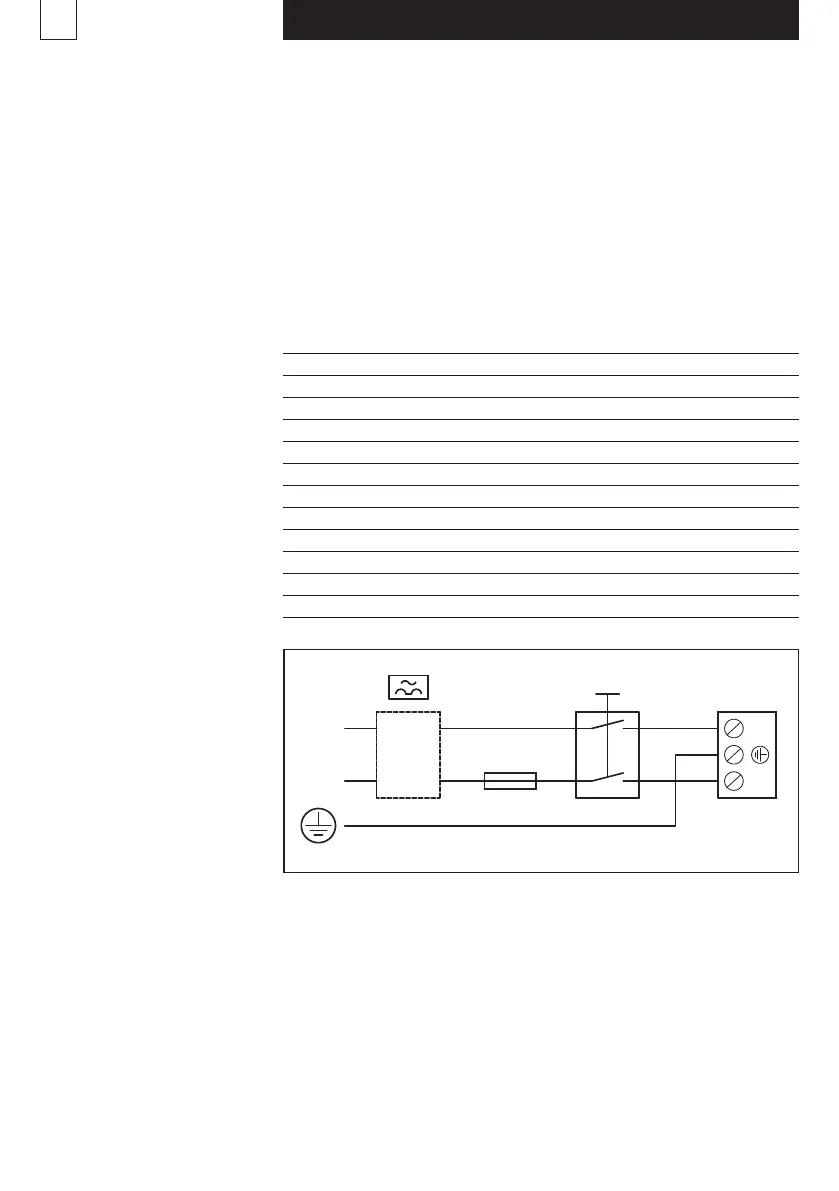

5.2 Connection of the power supply
The pump must be protected on-site (min. 10 A, slow)
and must be connected to an external mains switch.
All cables used must have a heat resistance of up to 85°C.
They must not be in contact with the pipe or the pump
and motor casing.
All cables must be connected in accordance with EN 60204-1
and EN 50174-2: 2000.
The electrical connection must be made as indicated
on the nameplate. For simpler subsequent replacement,
we recommend strapping the cable.
Nominal Output P
1
current
ModulA…RED, ModulA BLUE [A] [W]
ModulA 40-10 220 0.19 – 1.54 18 – 341
ModulA 40-12 250, ModulA-D 40-12 250 0.18 – 1.91 17 – 421
ModulA 40-18 250, ModulA-D 40-18 250 0.18 – 2.63 16 – 594
ModulA 50-6 240, ModulA-D 50-6 240 0.21 – 1.09 21 – 236
ModulA 50-12 270, ModulA-D 50-12 270 0.21 – 2.32 20 – 516
ModulA 50-18 270, ModulA-D 50-18 270 0.21 – 3.34 22 – 742
ModulA 65-8 270, ModulA-D 65-8 340 0.24 – 2.10 22 – 464
ModulA 65-12 340, ModulA-D 65-12 340 0.22 – 3.32 21 – 736
ModulA 65-15 340, ModulA-D 65-15 340 0.28 – 5.68 30 – 1254
ModulA 80-8 360, ModulA-D 80-8 360 0.29 – 3.08 29 – 704
ModulA 80-12 360, ModulA-D 80-12 360 0.32 – 5.56 32 – 1282
ModulA 100-12 450, ModulA-D 100-12 450 0.32 – 6.78 35 – 1563
