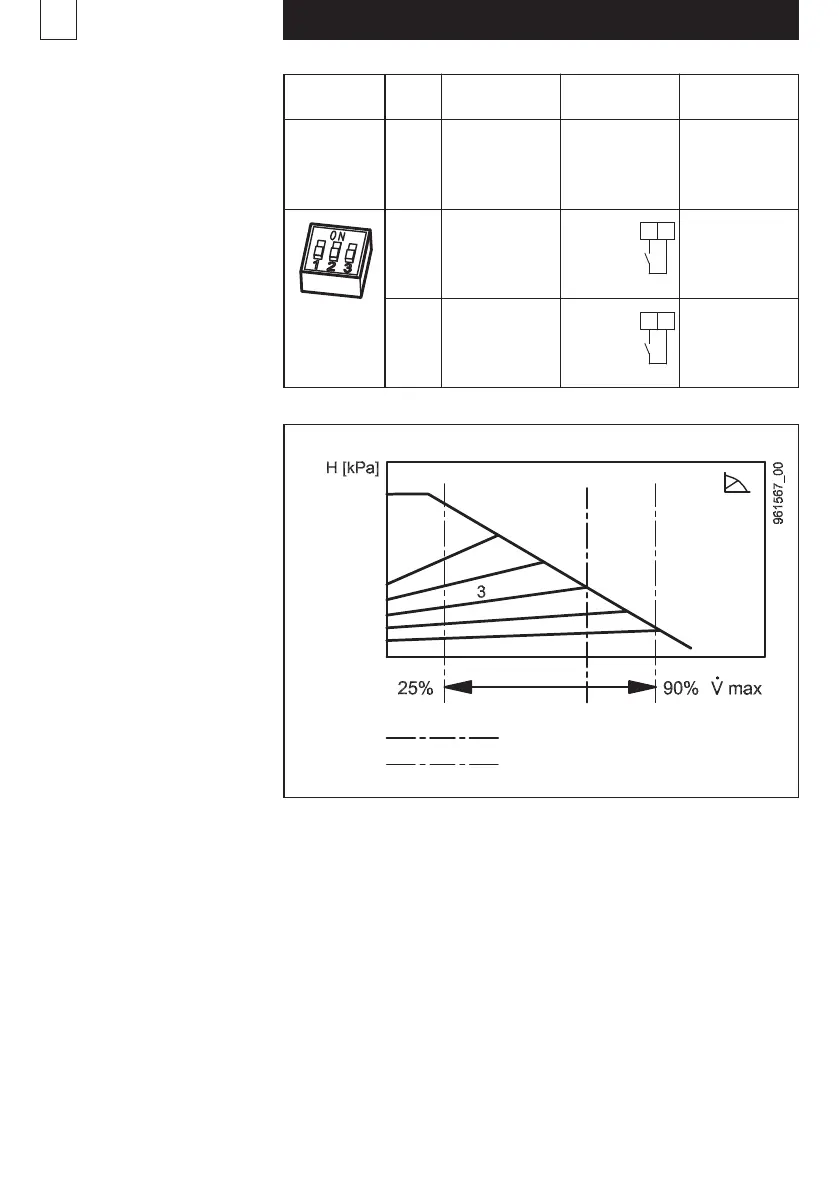

5.4 SWITCH settings
− Fault or operating signal
(can be switched over)
– External OFF or
external ON
(can be switched over)
– Power limit
(can be activated)
Bold lettering
= as delivered
Function
Switch 1
Fault
or operating
signal
Clamps
operating
signal
52, 54, 51
Clamps fault
signal
52, 54, 51
Switch 2
Default
external OFF
or
external ON
External
ON
External
OFF
Switch 3
Power Limit
ON
OFF
OFF
ON
5.5 Power Limit
The pre-set maximum
volume flow is at the end
of control characteristic
curve 3 (proportional
pressure).
Via Biral Remote, the volume
flow limit can be set from
25…90%.
Power Limit ON
Setting range
1011
1011
