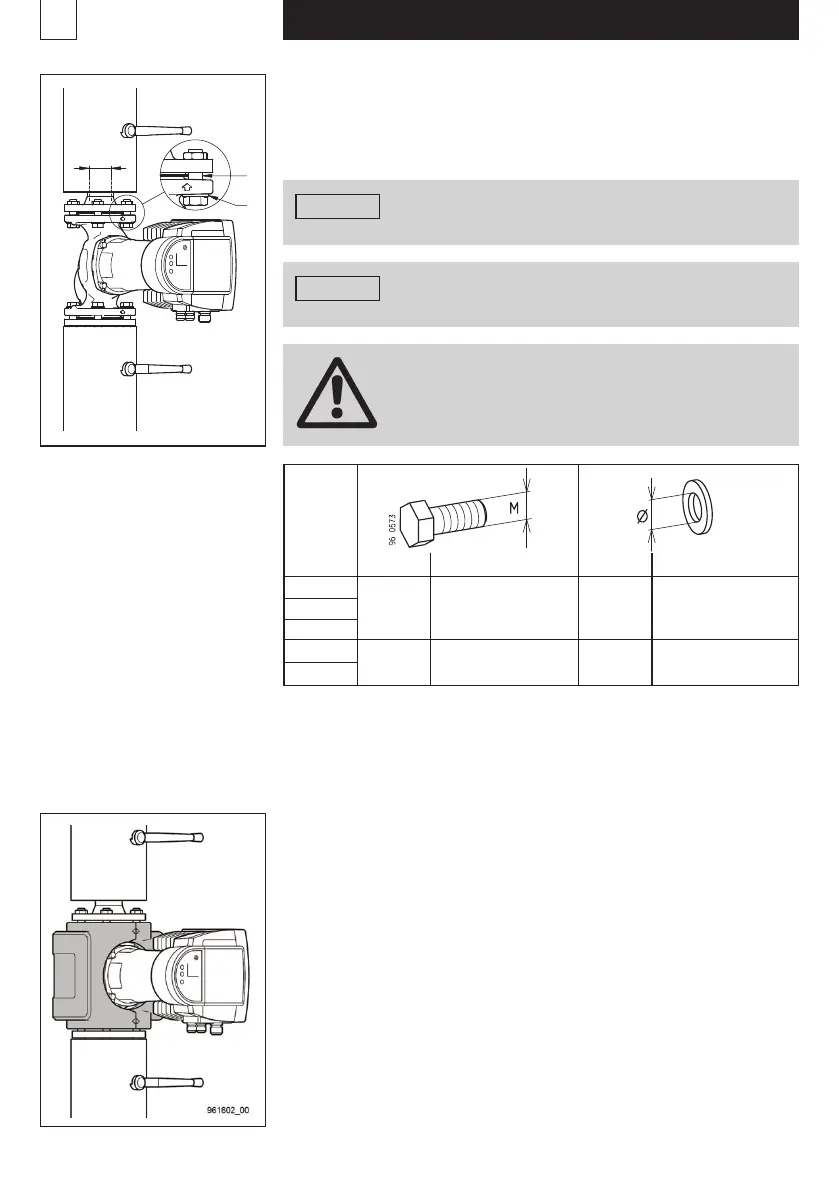

The pump flanges are drilled with mounting holes, PN6/PN10/PN16.
For safe screwing of the flanges, the shims supplied (B)
must be fitted.
Warning
Safety elements (e.g. snap rings)
are not permissible.
Warning
For PN 10/16, special seals and screws
must be used.
Warning
Use the relevant screws
for nominal pressure PN.
After installation is completed, put on the heat insulation shells
and secure with cable bands.
Recommended screw tightening torque
for M 12 <40 Nm
for M 16 <95 Nm
Installation of combined flange with combined flange
is not permissible.
PN 6 PN 10 / PN 16 PN 6 PN 10 / PN 16
DN 40
DN 50 M 12 M 16 Ø 14 Ø 18
DN 65
DN 80
DN 100 M 16 M 16 – –
AB
