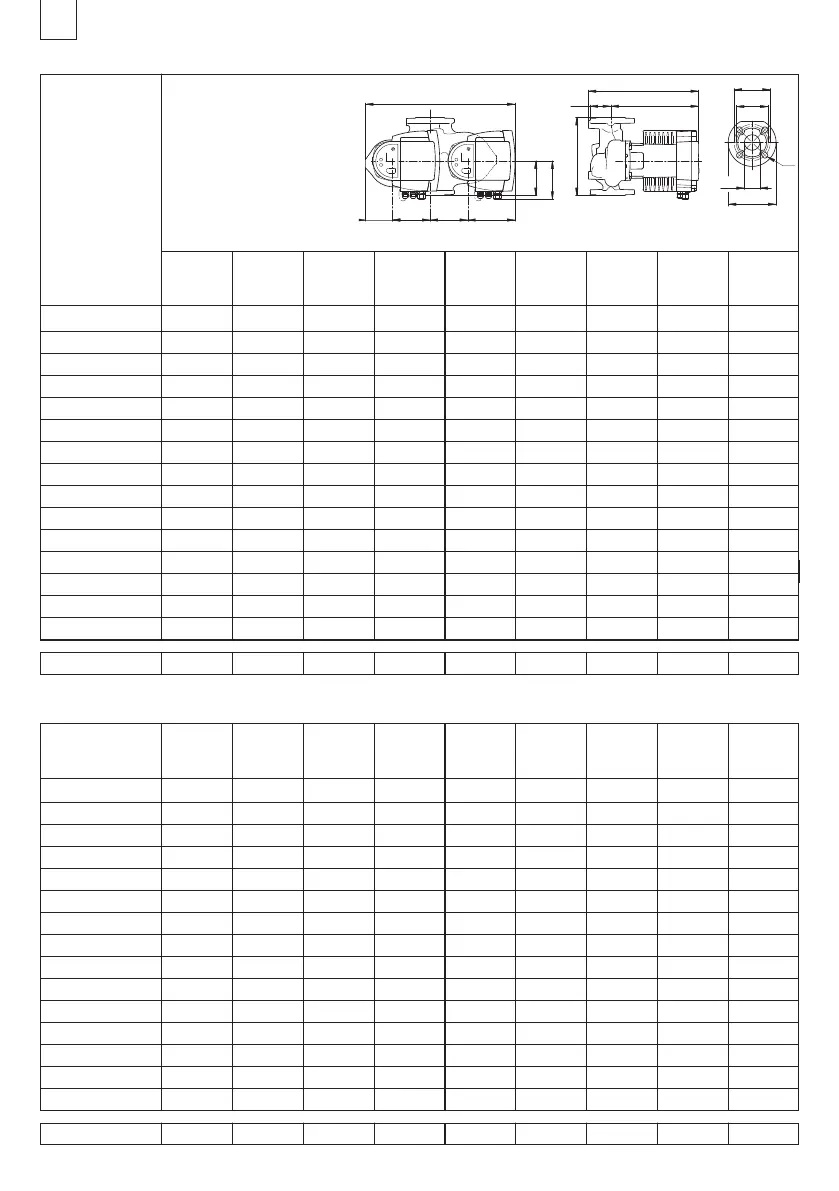

Biral ModulA RED Series User Manual

40-12 250 40-18 250 50-6 240 50-12 270 50-18 270 65-8 340 65-12 340 65-15 340
PN6-16 PN6-16 PN6-16 PN6-16 PN6-16 PN6-16 PN6-16 PN6-16
DN 40 40 50 50 50 65 65 65
L1 250 250 240 270 270 340 340 340
B1 512 512 515 517 517 522 522 522
B2 88 88 91 93 93 98 98 98
B3 130 130 130 130 130 130 130 130
B4 164 164 164 164 164 164 164 164
D 150 150 165 165 165 185 185 185
k1 (PN 6) 100 100 110 110 110 130 130 130
k2 (PN10/16) 110 110 125 125 125 145 145 145
d1 4×14/19 4×14/19 4×14/19 4×14/19 4×14/19 4×14/19 4×14/19 4×14/19
L2 115 115 125 120 120 140 140 140
L3 133 133 133 133 133 133 133 133
T1 376 376 383 381 381 391 391 391
T2 65 65 71 72 72 74 74 74
T3 304 304 303 303 303 311 311 311
4
Dimensions
Dimension
Dimensiuni
Series
Series
Seria
kg 32 32 35 36 36 42 42 48
B3 B4B3
L3
B2
B1
L2
T3T2
T1
L1
961559_00
k1
k2
D
d1
DN
ModulA-D… RED
80-8 360 80-8 360 80-12 360 80-12 360 100-12 450 100-12 450
PN6 PN10/16 PN6 PN10/16 PN6 PN10/16
DN 80 80 80 80 100 100
L1 360 360 360 360 450 450
B1 538 538 538 538 546 546
B2 114 114 114 114 122 122
B3 130 130 130 130 135 135
B4 164 164 164 164 164 164
D 200 200 200 200 220 220
k1 (PN 6) 150 – 150 – 170 –
k2 (PN10/16) – 160 – 160 – 180
d1 4×19 8×19 4×19 8×19 4×19 8×19
L2 160 160 160 160 190 190
L3 133 133 133 133 133 133
T1 418 418 418 418 436 436
T2 94 94 94 94 99 99
T3 318 318 318 318 330 330
kg 58 58 58 58 68 68
