BIRD 5012D - 5012 D Specifications (Continued); Average Power; Match Measurement

Specifications
13
Average Power
RF Power Range 0.15 – 150 W
Peak/Average Ratio, Max 12 dB
Measurement Uncert. ± (4% of reading ± 0.05 W)
1
1 Above 35 °C or below 15 °C add 3%
Match Measurement
Measurement Range:
Return Loss
Rho (
)
VSWR
0 to 23 dB
0.07 to 0.999
1.15 to 99.9
Forward Power, Min .5 W
Measurement Uncert. See
Figure 7 on page 13 .

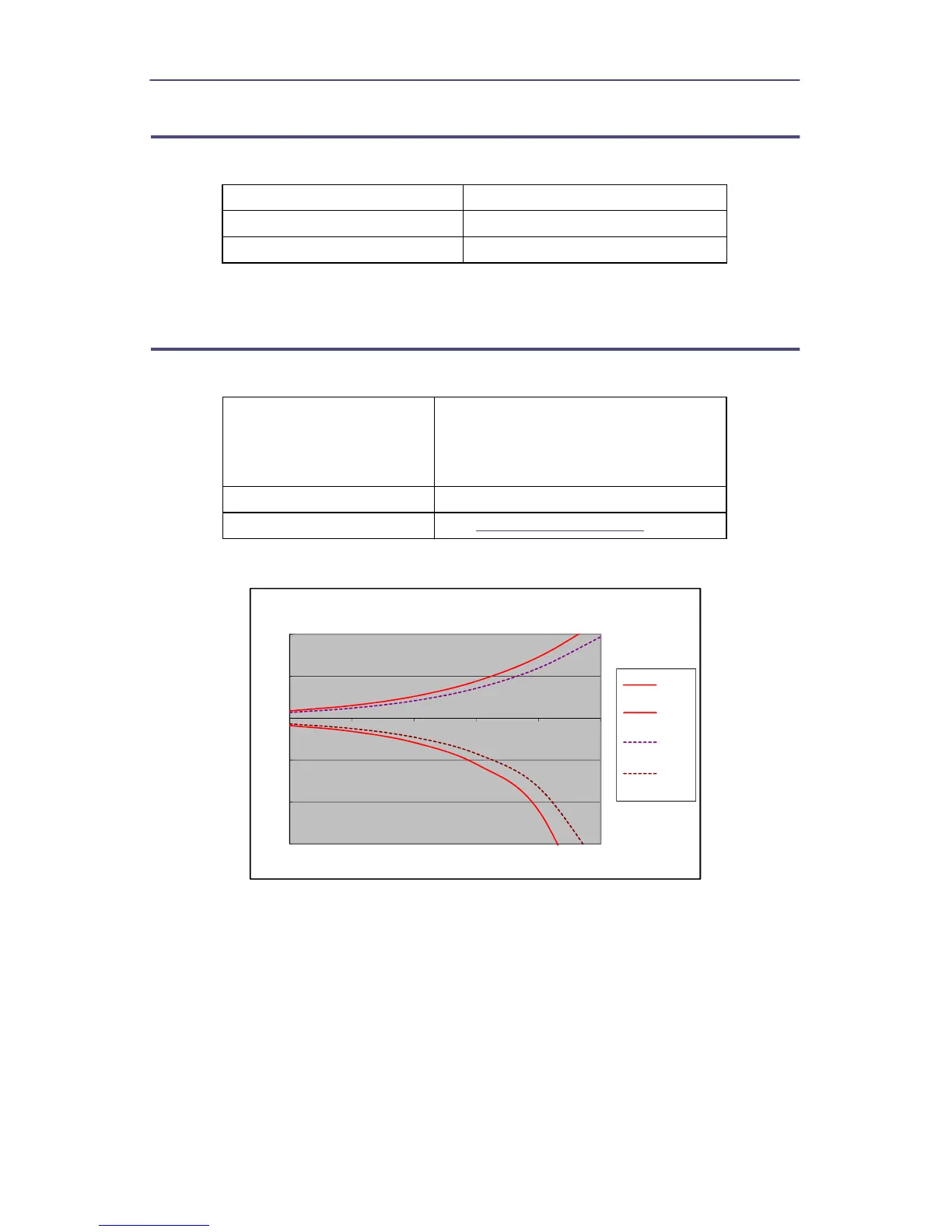

Figure 7 5012D Match Measure Uncertainty
-6
-4
-2
0
2
4
-25 -20 -15 -10 -5 0
Uncertainty(dB)
Return Loss
Measurement Uncertainty
Above
3GHz+
Above
3GHz-
Below
3GHz+
Below
3GHz-
