BIRD 5012D - 5018 D Specifications (Continued); Burst Average Power; Crest Factor; Complementary Cumulative Distribution Function (CCDF)

Specifications
29

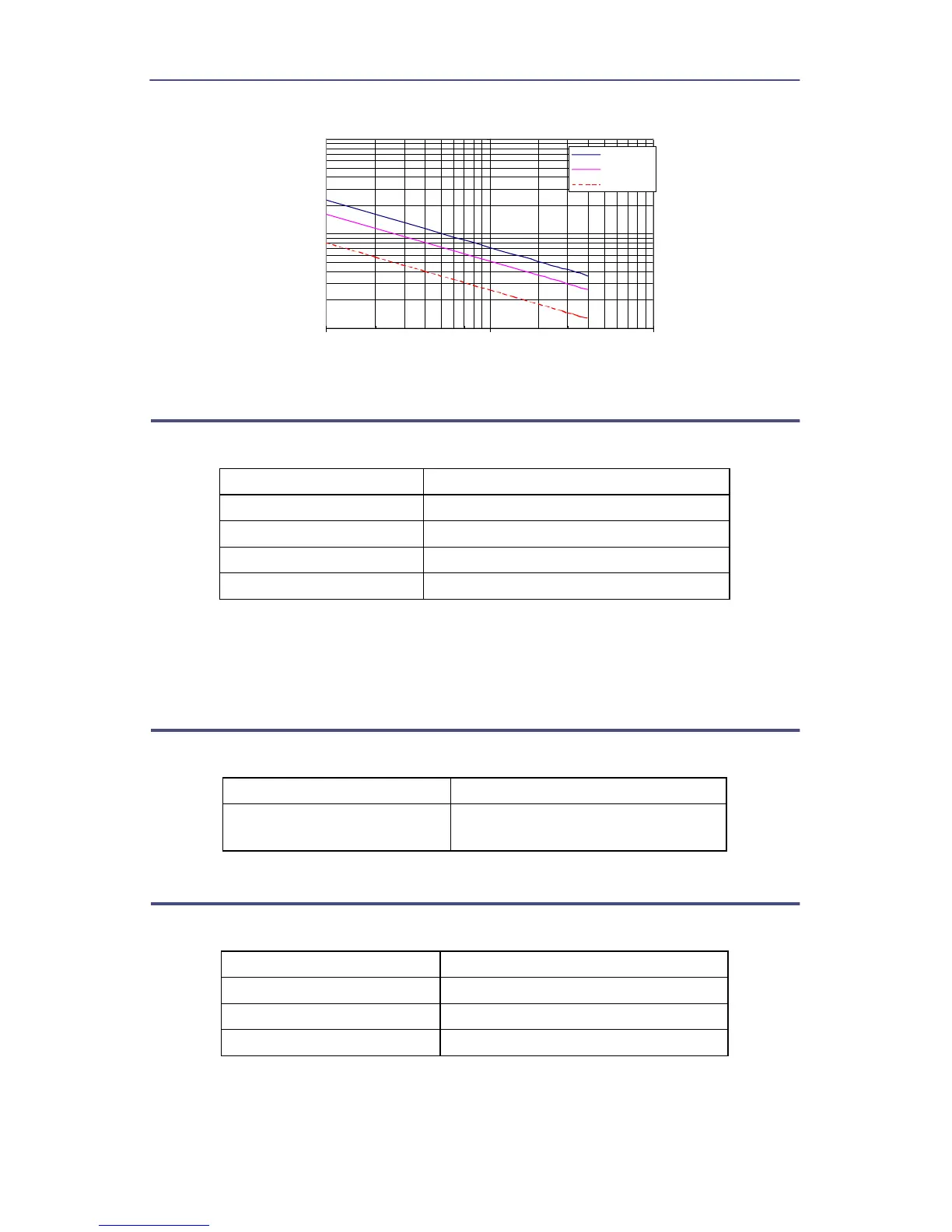

Figure 17 Max. Peak Power
100
1000
10000
0.1 1 10
Fre
q
uenc
y
(
GHz
)
Power (Watts)
VSWR=1
VSWR=1.5
VSWR=3
Burst Average Power
Power Range 25 mW – 25 W average
Burst Width 1 μs – 5 ms
Repetition Rate, Min 5 Hz (with 12 dB Peak/Avg ratio)
Duty Cycle (D)
1
1 Duty Cycle and CCDF read out dependent on display
method.
0.02 to 1 (D = Burst Width / Period)
Measurement Uncert. ± (6% of reading + 0.008/D W)
2
2 Above 35 °C or below 15 °C add 3%
Crest Factor
RF Power Range 25 mW to 25 W
Measurement Uncert. Linear sum of peak and average
power uncertainty
Complementary Cumulative Distribution Function (CCDF)
Measurement Range
1
1 Duty Cycle and CCDF read out dependent on display
method.
0.1 – 100%
Measurement Uncert. ± 2%
Threshold Level Range 25 mW to 60 W
Level Set Accuracy As peak power uncert. + 2%
