Specifications
19

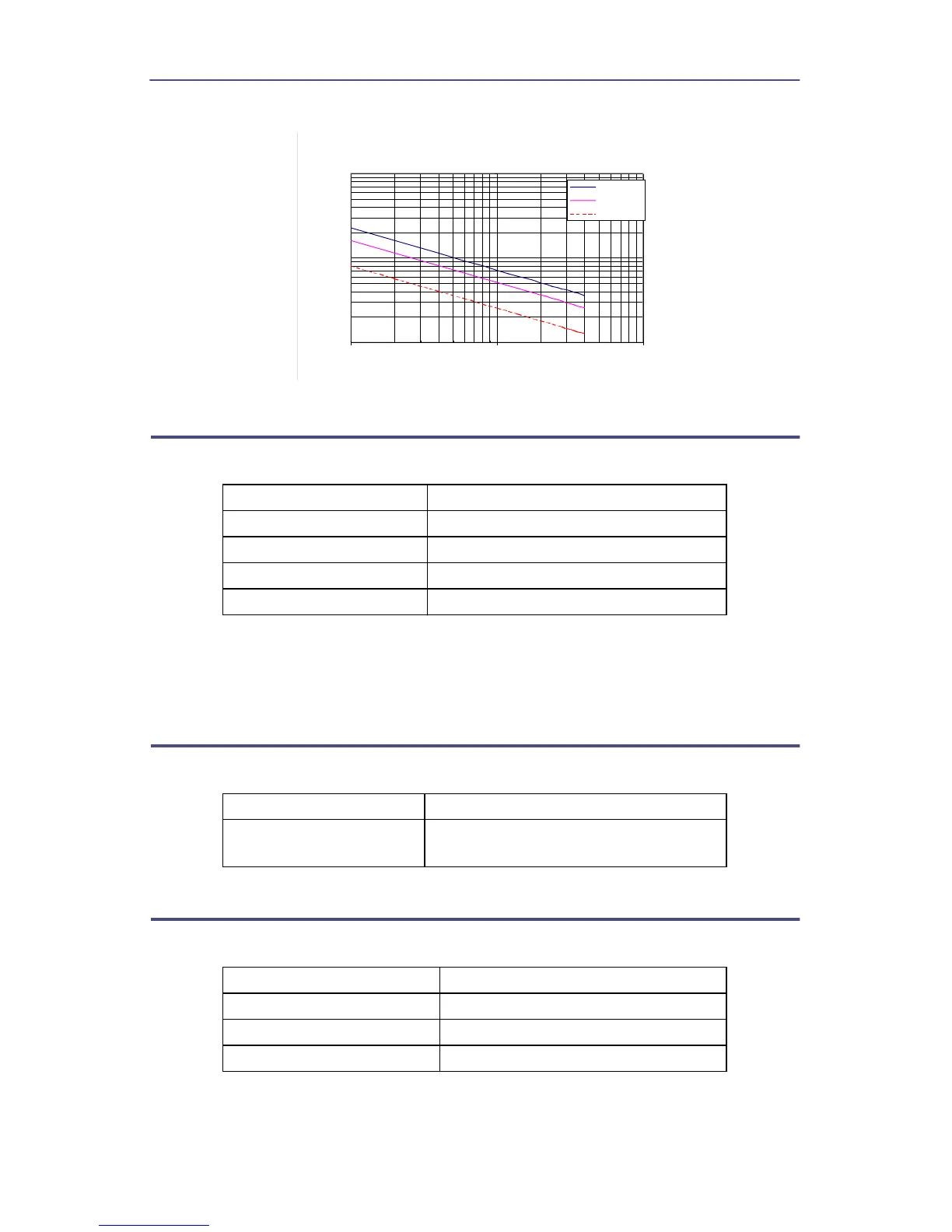

Figure 11 Max. Peak Power
Maximum Power, N Connector
100
1000
10000
0.1 1 10
Frequency (GHz)
Power (Watts)
VSWR=1
VSWR=1.5
VSWR=3
Burst Average Power
Power Range 1.0 W – 25 W average
Burst Width 1 μs – 5 ms
Repetition Rate, Min 5 Hz (with 12 dB peak/average ratio)
Duty Cycle (D)
1
1 Duty Cycle and CCDF read out dependent on display
method.
0.02 to 1 (D = Burst Width / Period)
Measurement Uncert. ± (6% of reading + 8/D W)
2
2 Above 35 °C or below 15 °C add 3%
Crest Factor
RF Power Range 25 mW to 25 W average
Measurement Uncert. Linear sum of peak and average
power uncertainty
Complementary Cumulative Distribution Function (CCDF)
Measurement Range
1
1 Duty Cycle and CCDF read out dependent on display
method.
0.1 – 100%
Measurement Uncert. ± 2%
Threshold Level Range 25 mW to 60 W
Level Set Accuracy As peak power uncert. + 2%
