Specifications
23
Average Power
RF Power Range
1
500 mW – 500 W
1
1 Derate maximum average power rating from 500W at 300MHz to 100W
at 1GHz using a straight line on a log-log scale
Peak/Average Ratio, Max 12 dB
Measurement Uncert. ± (4% of reading + 166 mW)
2
2 Above 35 °C or below 15 °C add 3%
Match Measurement
Measurement Range:
Return Loss
Rho (
)
VSWR
0 to 23 dB
0.07 to 1.0
1.15 to 99.9
Forward Power, Min 0.05 W
Measurement Uncert. See
Figure 13 on page 23
.

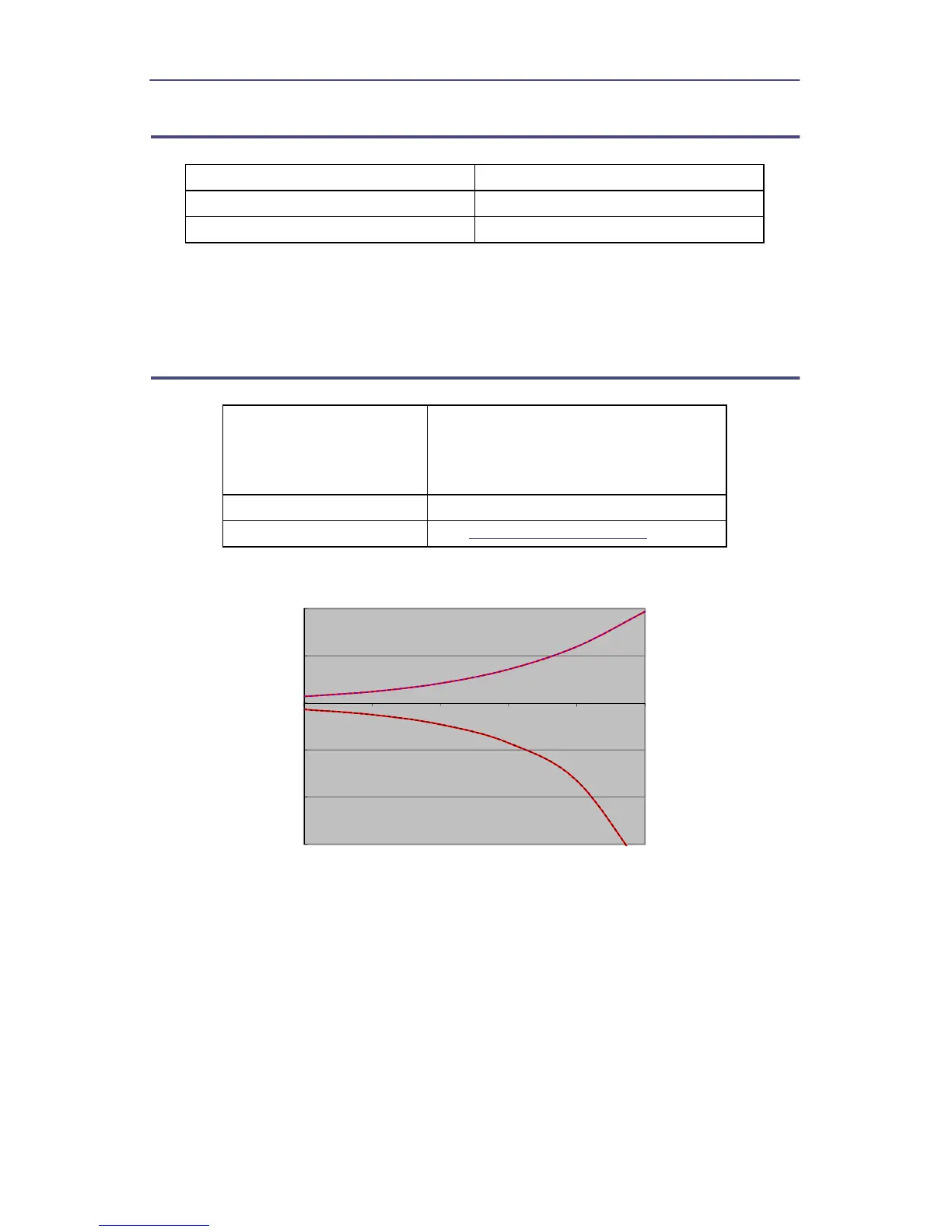

Figure 13 Match Measure Uncertainty
-6
-4
-2
0
2
4
-25 -20 -15 -10 -5 0
Uncertainty(dB)
Return Loss
