BIRO AFMG-24 - Frame and Case; Frame & Case Fasteners

11

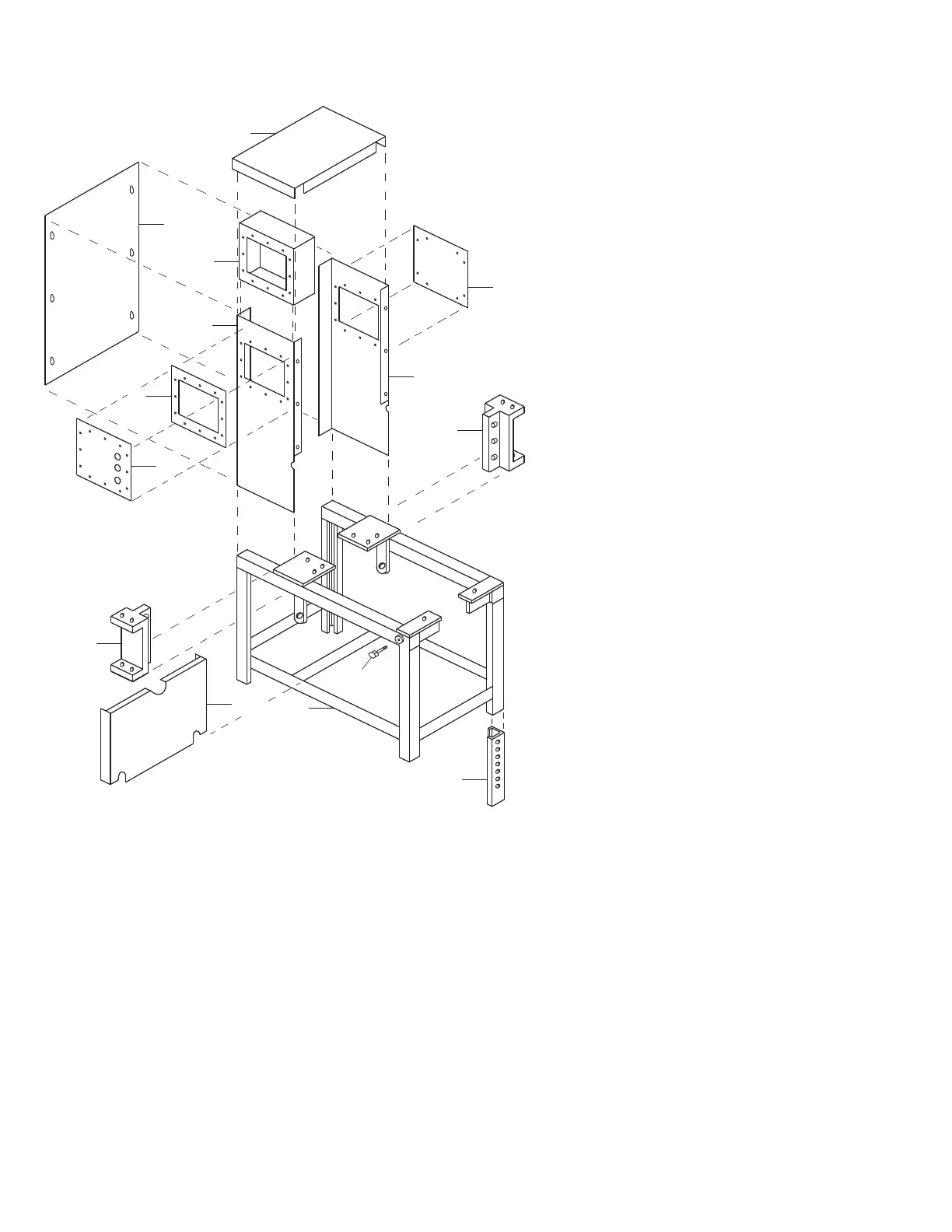

FRAME AND CASE
FRAME & CASE
FASTENERS
ADJUSTABLE LEGS TO FRAME
HHS067S
Hex head screw, ⅜-16 x ¾, SS, (8 ea.)
HN35S
Hex nut, ⅜-16, SS, (8 ea.)
Item No.
LW20S
Lock washer, ⅜”, SS, (8 ea.)
CONTROL BOX TO SIDE COVER
LW05S
Lock washer, #10, SS, (2 ea.)
Item No.
TRANSMISSION MOUNTING PLATE SUPPORTS
TO FRAME
HHS075S
Hex head screw, ⅜-16 x 1¼, SS, (4 ea.)
LW20S
Lock washer, ⅜, SS, (4 ea.)
Item No.
S217C
Dowel pin, 5⁄16 x ¾, (4 ea.)
SIDE PANEL FILLER PLATE TO
SIDE DRIVE COVER
2563
Hex washer-head screw, 10-32 x ½, SS, (8 ea.)
LW05S
Lock washer, #10, SS, (8 ea.)
Item No.
HN10S
Hex nut, 10-32, SS, (8 ea.)
CONTROL BOX COVER TO CONTROL BOX
THROUGH DRIVE COVER
2563
Hex washer-head screw, 10-32 x ½, SS, (12 ea.)
Item No.
2563
Hex washer-head screw, 10-32 x ½, SS, (2 ea.)
HN10S
Hex nut, 10-32, SS, (2 ea.)
DRIVE COVER BACK TO DRIVE COVER
HHS025S
Hex head screw, ¼-20 x ½, SS, (6 ea.)
Item No.
LW10S
Lock washer, ¼”, SS, (6 ea.)
DRIVE COVER TOP TO DRIVE COVER
Item No.
LOWER FRONT COVER TO SIDE DRIVE COVER
Item No.
HHS025S
Hex head screw, ¼-20 x ½, SS, (4 ea.)
LW10S
Lock washer, ¼”, SS, (4 ea.)
HHS025S
Hex head screw, ¼-20 x ½, SS, (4 ea.)
LW10S
Lock washer, ¼”, SS, (4 ea.)
DRIVE COVER SIDES TO FRAME
Item No.
HHS025S
Hex head screw, ¼-20 x ½, SS, (4 ea.)
LW10S
Lock washer, ¼”, SS, (4 ea.)
DRIVE COVER SIDES TO TUB
Item No.
HHS055S
Hex head screw, 5/16-18 x ¾, SS, (6 ea.)
LW15S
Lock washer, 5/16, SS, (6 ea.)
FW10S
Flat washer, 5/16, SS, (6 ea.)
Description
Item No.
56319/56320
Adjustable leg assembly, See Note below
56240
Frame fabricated, SS, s/n: 20200 on
56062
Transmission mounting plate supports (2 req.)
56274
Drive cover top w/prox. switch mounting
bracket, s/n: 20200 on
Rear drive cover, s/n: 20026 on
56164
Seal for control box, s/n: 20026 on
56239
Drive cover, left side, s/n: 20200 on
56238
Drive cover, right side, s/n: 20200 on
Fig.
1
2
3
4
5
6
7
8
9 Control box cover, s/n: 20026 on
56089
Drive cover lower front, w/ lug holder cutouts
56338
Drive cover lower front
10
10A
11
Control box, s/n: 20026 on
56144
Side panel ller plate s/n: 20026 on12
56165
56155
56161
14572
Ring hanger
1
2
3
3
4
5
6
7
8
9
10
10A
11
12
13
56319
Leg w/ caster pad, Right Front, Left Rear
56320
Leg w/ caster pad, Left Front, Right Rear
NOTE:
OPTIONAL CASTER TO LEG WITH CASTER PAD
Item No.
HHS055S
Hex head screw, 5/16-18 x ¾, SS, (4 ea.)
LW15S
Lock washer, 5/16, SS, (4 ea.)
FW10S
Flat washer, 5/16, SS, (4 ea.)
HN20S
Hex nut, 5/16-18, SS, (4 ea.)
SEE PAGE 23 FOR CASTER AND FASTENER KITS
13
