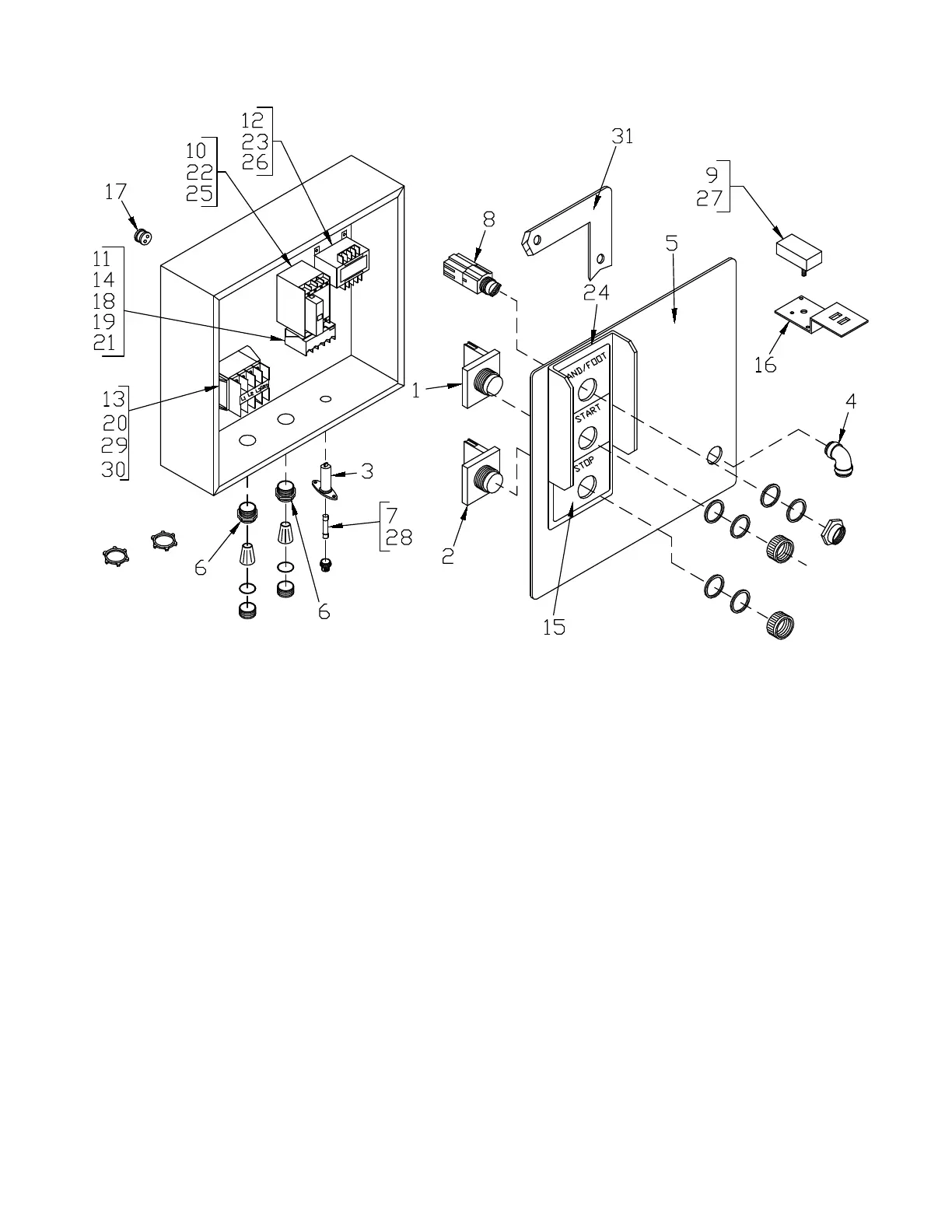

BIRO AFMG-24 - Power Controls

17
Description
Item No.
42MC-Y73
Start button, Green
42MC-Y74
Stop button, Red
51991
Fuse holder
56301G
Watertight 90° cord connector
56155
Cover control panel
53689
Cable connector assembly (2 req’d)
53851
Fuse, 1 amp, 250V
56105
Switch, selector, hand/foot
DescriptionItem No.
H281EE-52
Overload, B18K-L 5.5-8.5Amps
5HP, 3Ph 460-575V, 60Hz
H281EE-53
Overload, B18K-M 8-12Amps
7½HP, 3Ph 460-575V, 60Hz
35375
End barrier, Terminal block
H281EE-321
Overload, B18K-ON 21-16Amps
5HP, 1Ph, 208-230V, 60Hz; 7½HP,
3Ph 208-230V, 60Hz
56339
24V Contactor, 7½HP, 3Ph 380-415V,
50Hz
BES16257
Transformer, 380/24V
55053
Magnetic safety interlock switch
250-600V (24 volt system)
BES16259
3Amp fuse for 24 volt system
35241
Mount rail, terminal block
35376
End anchor, terminal block
56164
Control box seal
Fig.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Fig.
18
19
20
21
22
23
24
25
26
27
28
29
30
31
56125
Legend plate (controls)
42MC-Y70
Safety switch bracket
35067
Grommet, wire to safety switch
226EE-AO11K
Contactor, LS11K.11S-AO 5HP, 3Ph
208-230/460V, 60Hz 5HP, 3Ph 575V,
60Hz; 7½HP, 3Ph 220/380-415V, 50Hz
56261
Transformer, 575V/115V
56337
Shroud, selector switch
42MC-Y64
Magnetic safety interlock switch 240V
226EE-AO15K
Contactor, LS15K.11S-AO
5HP, 1Ph, 208-230V, 60Hz; 7½HP, 3Ph
208-230/460V, 60Hz
H281EE-31
56110
Transformer, 230/460V Pri, 120V Sec
35374
Terminal block (4 req’d)
226EE-OL18O
Overload, B18K-O 14.5-18Amps
7½HP, 3Ph 220V, 50Hz
Overload, B18K-N 10-16Amps
5HP, 3Ph, 208-230V, 60Hz; 7½HP, 3Ph
380-415V, 50Hz
POWER CONTROLS
