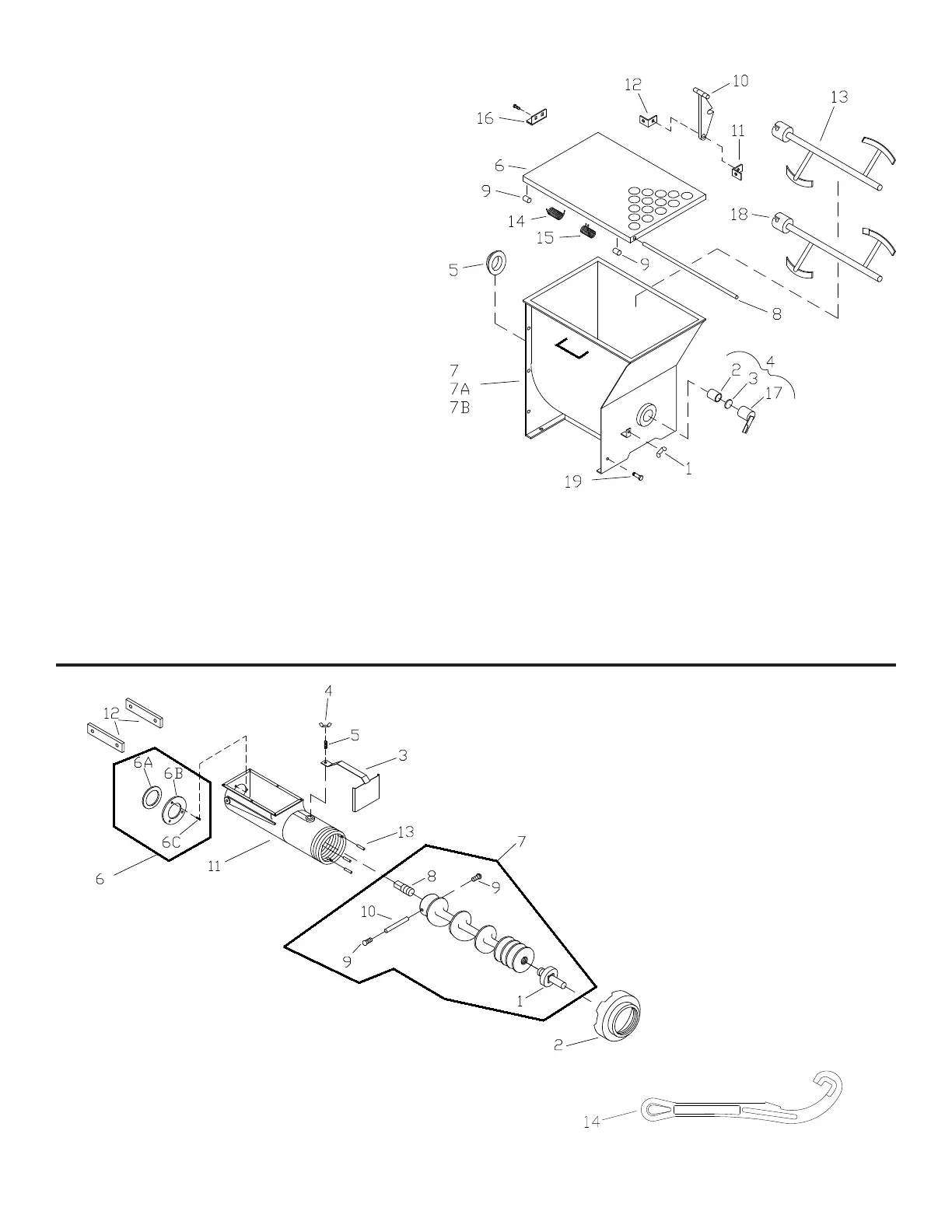

BIRO AFMG-24 - Mixer; Mixer Fasteners; Grinder; Grinder Fasteners

12
GRINDER
Description
Item No.
HK48
Knife drive pin
HR42/48
Bowl end ring
52392
Product splash shield
WN20S
Wing nut, ⅜-16
Stud, ⅜-16 x 1
57159K
Auger drive shaft seal kit
57159
Auger drive shaft seal, double lip
57160
Seal retainer, SS
Fig.
1
2
3
4
5
6
6A
6B
6C Oval head screw, 10-32 x ¾, SS
54278-CTN
Auger assembly
54278B
Square drive insert
7
8
9
Shear pin screw
54278C
Auger shear pin10
11
56049
Grinding bowl
56067
Torque link, ( 2 req.)
HP48
Bowl plate pins (3 req.)
12
13
14
H340
Ring wrench
Description
Item No.
53568
Mixer paddle lock set screw
53594
Lock arm radial bearing
53517
Lock arm thrust bearing
53852
Lock arm assembly, w/ bearings
53953
Seal, mixer drive shaft thru tub
56039
Product mixer safety cover
56040
Product mixer tub, no side inlet
56121
Product mixer tub, RH side inlet
Fig.
1
2
3
4
5
6
7
7A
7B Product mixer tub, LH side inlet
56044
Safety cover hinge rod
56045
Safety cover hinge rod spacer (2 ea.)
8
9
10
Safety cover latch
56073
Latch mounting bracket, LH11
12
56074
Latch mounting bracket, RH
56284
Product mixer paddle, 1st grind, SS
56221
Safety cover torsion spring, RH
13
14
15
56222
Safety cover torsion spring, LH
53853
Mixer paddle lock arm assembly
56230
Product mixer paddle, 2nd grind, SS, w/hook
17
18
16
56273-1
Magnetic switch bracket & magnet
GRINDER FASTENERS
BOWL TO TUB
HHS067S
Hex head screw, ⅜-16 x ¾, SS, (6 ea.)
LW20S
Lock washer, ⅜, SS, (6 ea.)
S217C
Dowel pin, 5⁄16 x ¾, (2 ea.)
Item No.
BOWL TO TORQUE LINK
HHS126S
Hex head screw, ½-13 x 1¼, SS, (2 ea.)
LW30S
Lock washer, ½, SS, (2 ea.)
Item No.
MAGNET TO MOUNTING BRACKET
FHS24S
Flat head screw, 10-32 x ⅝, SS, (1 ea.)
LW05S
Lock washer, #10, SS, (1 ea.)
HN10S
Hex nut, 10-32, (1 ea.)
Item No.
TUB TO FRAME
HHS067S
Hex head screw, ⅜-16 x ¾ , SS, (4 ea.)
LW20S
Lock washer, ⅜, SS, (4 ea.)
Item No.
HINGE ROD ENDS
AN20S
Acorn nut, ⅜-16, SS, (2 ea.)
HNNL15S
Hex nut, nylok,¼-20, SS, (3 ea.)
Item No.
LID LATCH TO LID
RHS24S
Round head screw,¼-20 x ½, SS, (2 ea.)
RHS31S
Round head screw,¼-20 x 1, SS, (1 ea.)
Item No.
56124
56072
SSS45S
OHS26S
FHS33S
14572
Ring hanger
MIXER
MIXER FASTENERS
19
