BIRO AFMG-24 - Power Transmission; Power Transmission Fasteners

13

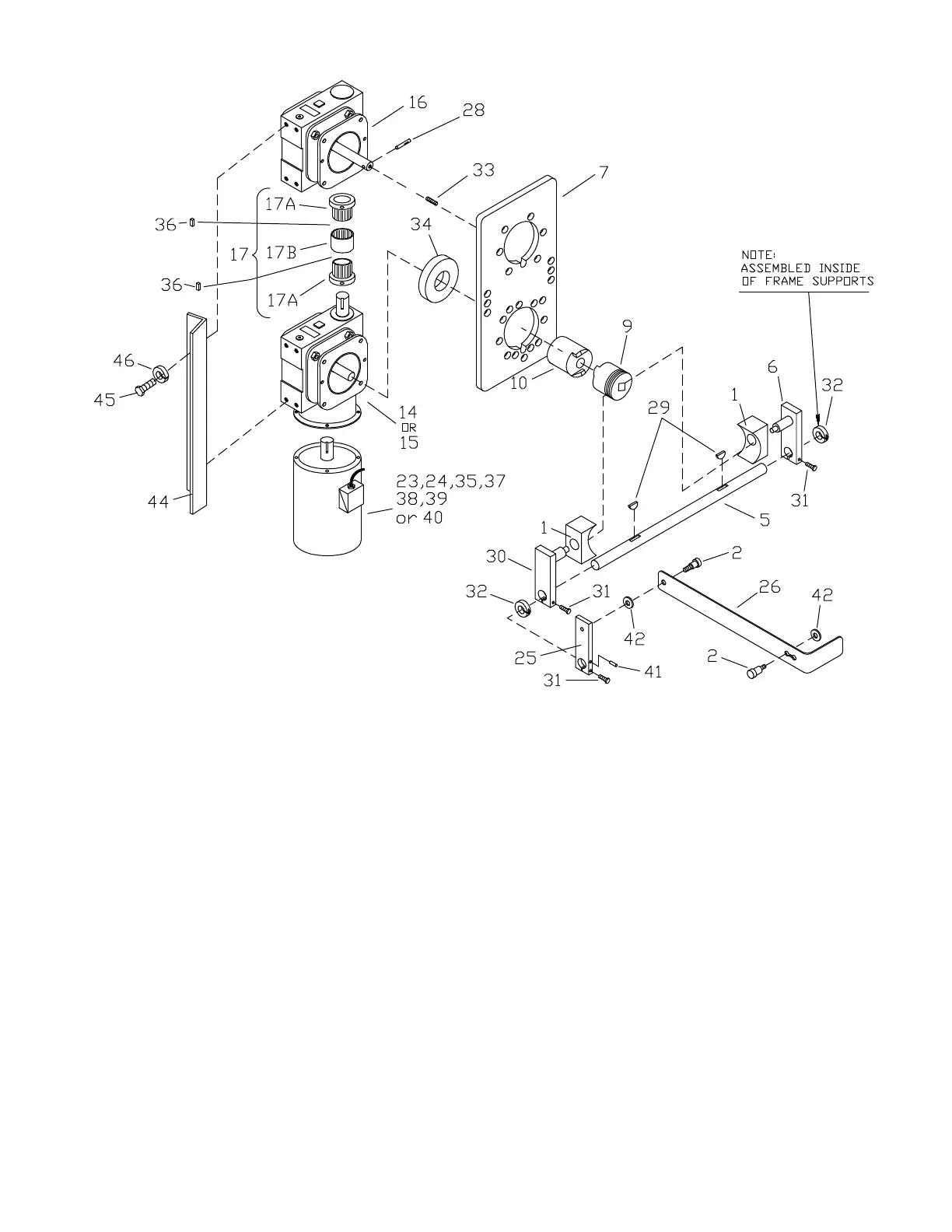

POWER TRANSMISSION
POWER TRANSMISSION
FASTENERS
MIXER TRANSMISSION TO MOUNTING PLATE
HHS126S
Hex head screw, ½-13 x 1¼, SS, (4 ea.)
LW30S
Lock washer, ½”, SS, (4 ea.)
Item No.
S217C
Dowel pin, 5⁄16 x ¾, (2 ea.)
MOTOR TO TRANSMISSION
HHS126S
Hex head screw, ½-13 x 1¼, SS, (4 ea.)
LW30S
Lock washer, ½, SS, (4 ea.)
Item No.
GRINDER TRANSMISSION TO MOUNTING PLATE
HHS126S
Hex head screw, ½-13 x 1¼, SS, (4 ea.)
LW30S
Lock washer, ½”, SS, (4 ea.)
Item No.
S217C
Dowel pin, 5⁄16 x ¾, (2 ea.)
TRANSMISSION MOUNTING PLATE TO
MOUNTING PLATE SUPPORT
HHS075S
Hex head screw, ⅜-16 x 1¼, SS, (6 ea.)
LW20S
Lock washer, ⅜, SS, (6 ea.)
Item No.
S217C
Dowel pin, 5⁄16 x ¾, (2 ea.)
LOVEJOY COUPLING TO TRANSMISSION SHAFTS
SSS10Z
Set screw, ¼-20 x ¼, (4 ea.)
Item No.
JOURNAL BOX TO MOUNTING PLATE
HHS070S
Hex head screw, ⅜-16 x 1, SS, (4 ea.)
LW20S
Lock washer, ⅜, SS, (4 ea.)
Item No.
S217C
Dowel pin, 5⁄16 x ¾, (2 ea.)
DRIVING CLUTCH MOTOR OUTPUT TO
TRANSMISSION SHAFT
SSS17KL
Set screw, knurled, cup 5/16-18 x ⅜, (3 ea.)
Item No.
TORQUE LINK TO JOURNAL BOX
HHS126S
Hex head screw, ½-13 x 1¼, SS, (2 ea.)
LW30S
Lock washer, ½”, SS, (2 ea.)
Item No.
CLUTCH ENGAGEMENT ARM TO CLUTCH ARM LOCK
SSB50PS
Shoulder bolt, ⅜-16 x ⅜, (2 ea.)
Item No.
TRANSMISSION BRACE
HHS126S
Hex head screw, ½-13 x 1¼, SS, (4 ea.)
LW30S
Lock washer, ½”, SS, (4 ea.)
Item No.
