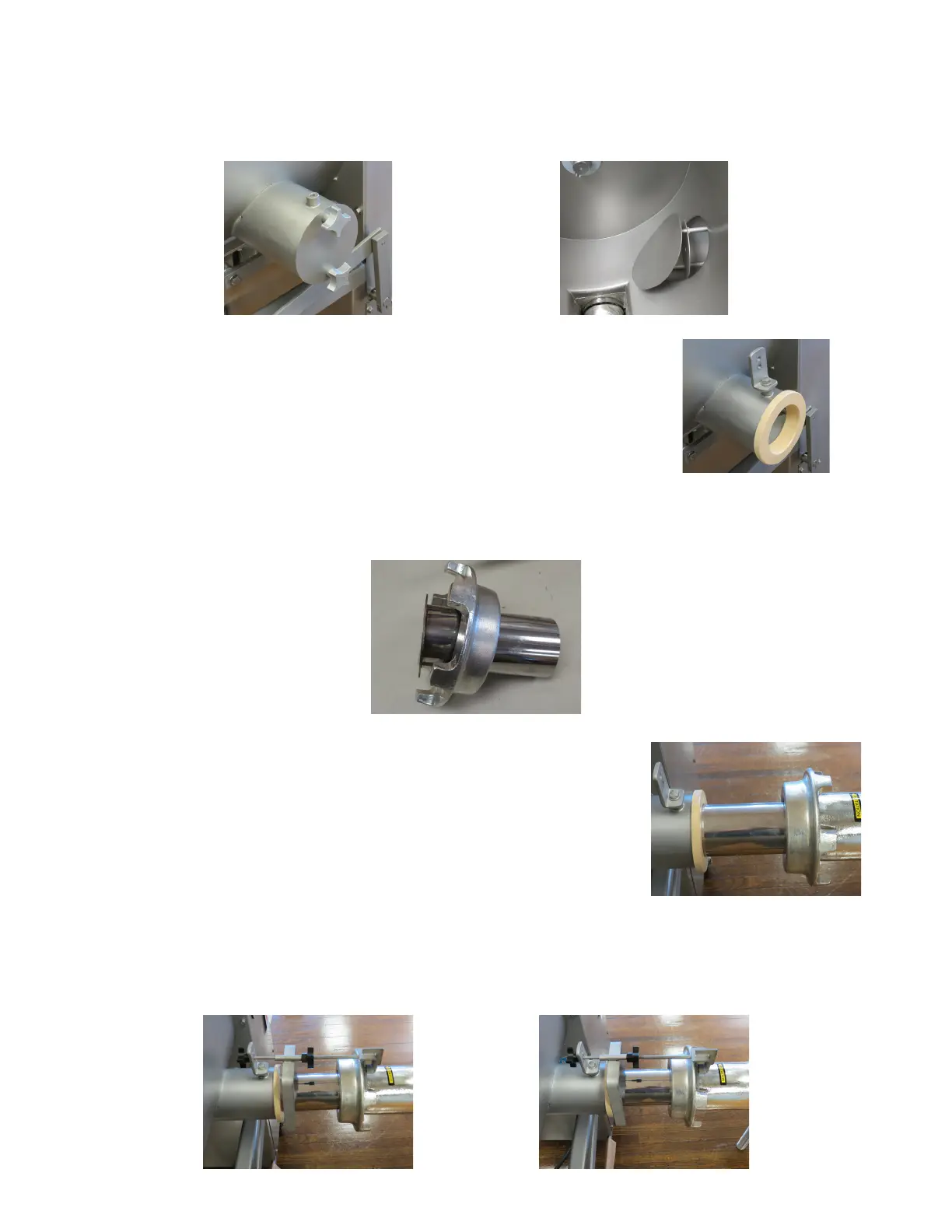

CONNECTION INSTRUCTIONS FOR TANDEM OPERATIONS

AFMG-24 into AFMG-24 or Heavy Horsepower Grinder into AFMG-24

Step 2. Install the Inlet Tube Seal Item No. 53671 or 53933 into the inlet

tube of the Second Grind Machine until fully seated. Bolt the

supplied connecting angle to the inlet tube.

Step 3. Remove the Ring from the First Grind Machine, Item No. HR42/48, HR52 or HR56. Insert the

Discharge Horn, Item No. 56137, 56135 or 56136 into the ring. Reinstall the ring on the machine.

Step 4. Insert the Discharge Horn with Ring into the Seal, pushing

it fully against the inlet tube internal ns.

Step 5. With the seal clamp in place. Install the connecting Bracket over the rst grinders ring, slide the

connecting bracket tod into the connecting angle. Install the lock knob and tighten. Tighten the

seal bracket lock knob to tighten against the seal.

RING SHOULD BE HAND TIGHTENED ONLY: USE NO TOOLS.

Step 1. Remove Lock Knobs, Item No. 14688; Outer disc, Item No. 54303 and Side Entrance Seal,

Item No. 56167 from the inlet tube of the Second Grind Machine. Clean out the tube if necessary.
