BIRO F1000N - Parts Breakdown

13
DescriptionItem No.
F9314100
Foot
F93M0003
Rear panel
F93M0040
Centering disc
F93M0085
Locking pin
F93M0096T
Plate cap
F93M0117B
Start switch, Green
F93M0118
NO Contact block
F93M0120B
Stop switch, Red
Description
Item No.
F93M0121
NC Contact block
F93M0122
Lampholder
F93M0123
White LED lamp 24V
GVT084
Hex nut, M4-0.7, SS
GVT085
Hex nut, M5-0.8, SS
GVT105
Acorn nut, M8-1.25, SS
GVT182
Hex head screw, M4-0.7 x 16, SS
GVT192
Hex head screw, M5-0.8 x 10, SS
GVT206
Hex head screw, M6-1.0 x 12, SS
GVT407
Pan head screw, M4-0.7 x 10, SS
F93Z1PLR
Main power switch
F93M0128
Hole plug
Fig No.
1
2
3
4
5
6
7
8
9
10
Fig No.
11
12
13
14
15
16
17
18
19
20

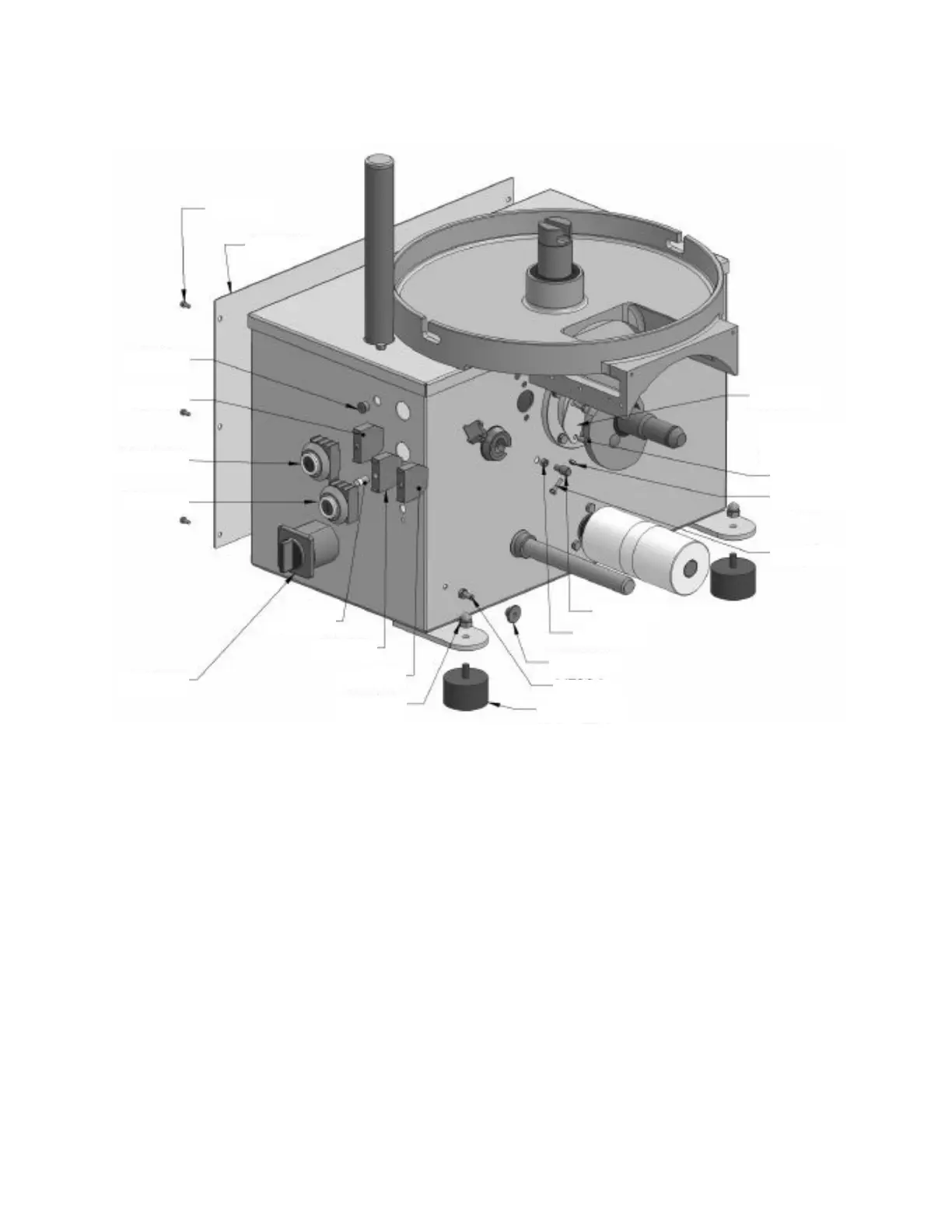

PARTS BREAKDOWN
2
3
4
5
6
7
8
9
12
10
11
15
16
17
19
20
13
1
18
14
