BIRO F1000N - Page 22

19

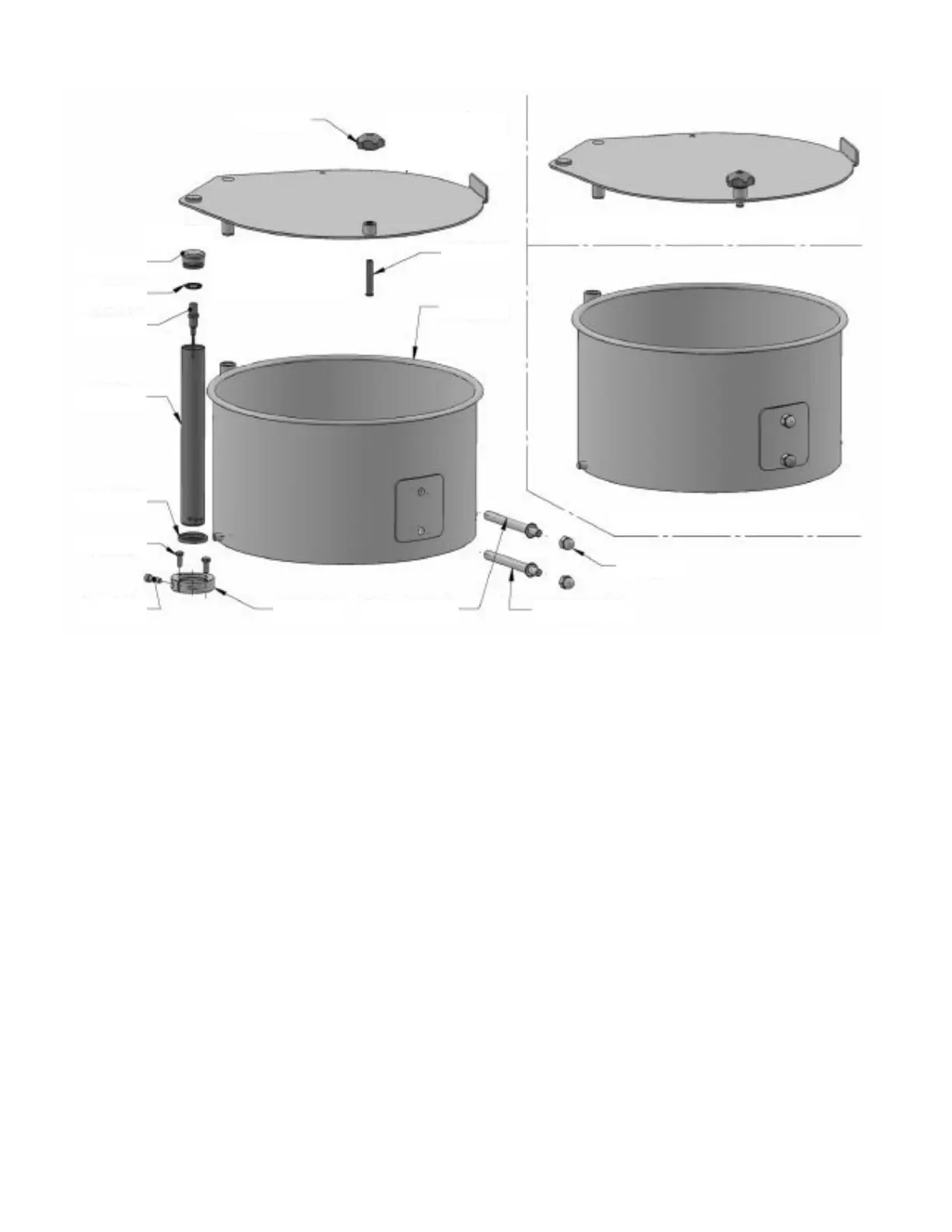

HOPPER AND COVER
DescriptionItem No.
F9340201
Hopper short pin, 12 x 110
F9340202
Hopper long pin, 12 x 130
F93M0023
Hopper
F93M0025
Sensor tube
F93M0026
Cap, sensor tube
F93M0027
Collar, sensor tube
F93M0073
Seal, DP6 32/40/5/7 NBR
F93M0081
O-ring, OR132
Fig No.
1
2
3
4
5
6
7
8
9
10
F93M0115
Stop cover pin
F93M0132A
Hopper assembly, F1000N
11
12
GG136
Aluminum knob
DescriptionItem No.
GG225
Hopper cover safety switch
GVT105
Acorn nut, M8-1.25, SS
GVT208
Hex head screw, M6-1.0 x 16, SS
GVT328
Socket head screw, M6-1.0 x 20, SS
Fig No.
13
14
15
16
F93M0133A
Hopper cover assembly, F1000N
1 2
3
4
5
6
7
8
9
10 Hopper Assembly
12
13
14
15
16
11 Hopper Cover Assembly
F9340201
Washer for hopper pins, Not Shown
17
