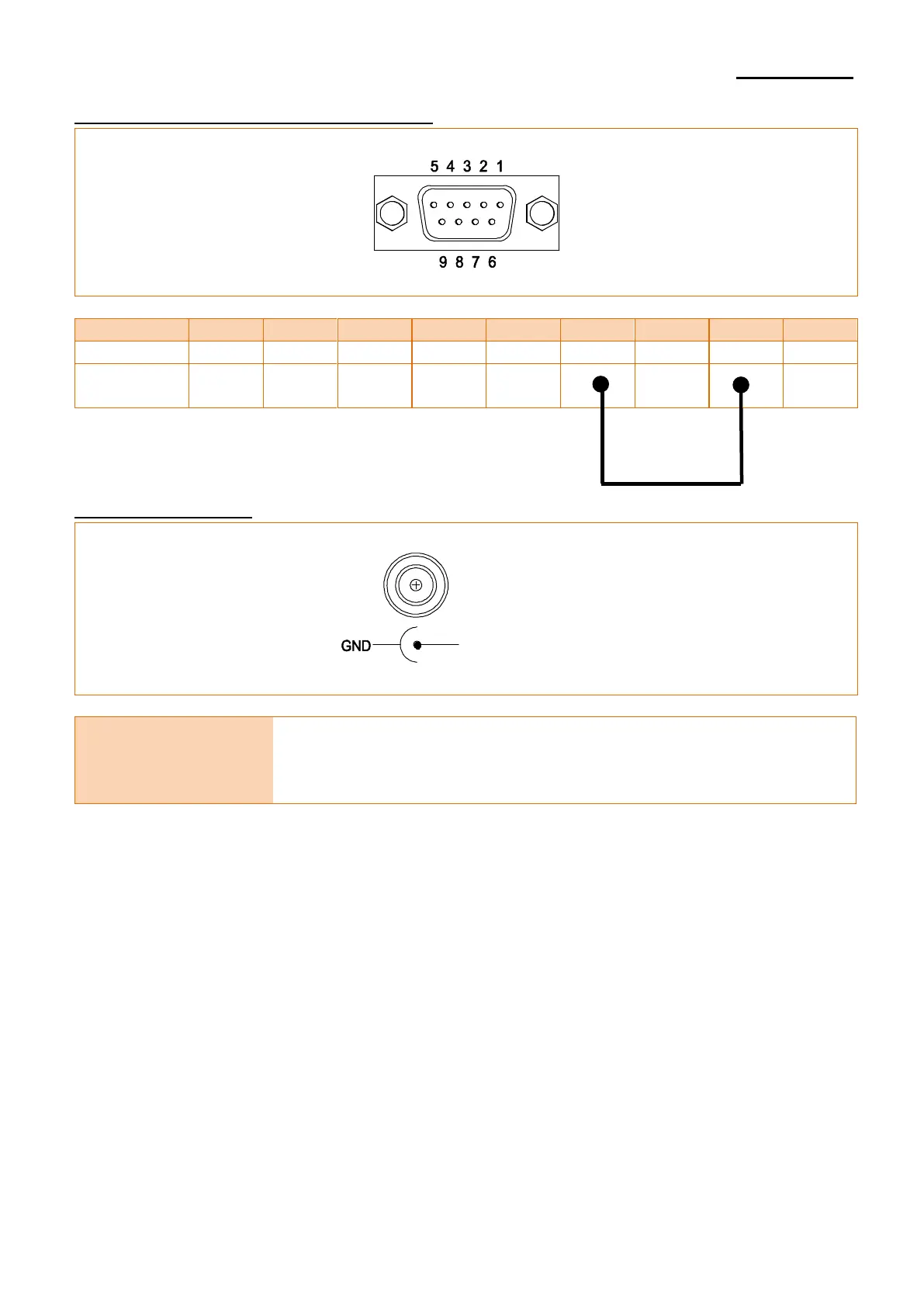

6-1-2 Serial Cable Pin Layout (D-SUB 9PF)
1
2
3
4
5
6
7
8
9
pin Name
NC
RXD
TXD
DTR
GND
DSR
NC
CTS
NC
Short
Connection
6-1-3 DC Power Jack
MAX +24VDC.
Caution or Warning
- Use only the genuine connection cable and adapter provided by
the manufacturer.
- The warranty does not cover damage caused by the use of
unauthorized cables.
