BIXOLON BCD-2000 User Manual

Rev. 1.02
- 9 -
BCD-2000

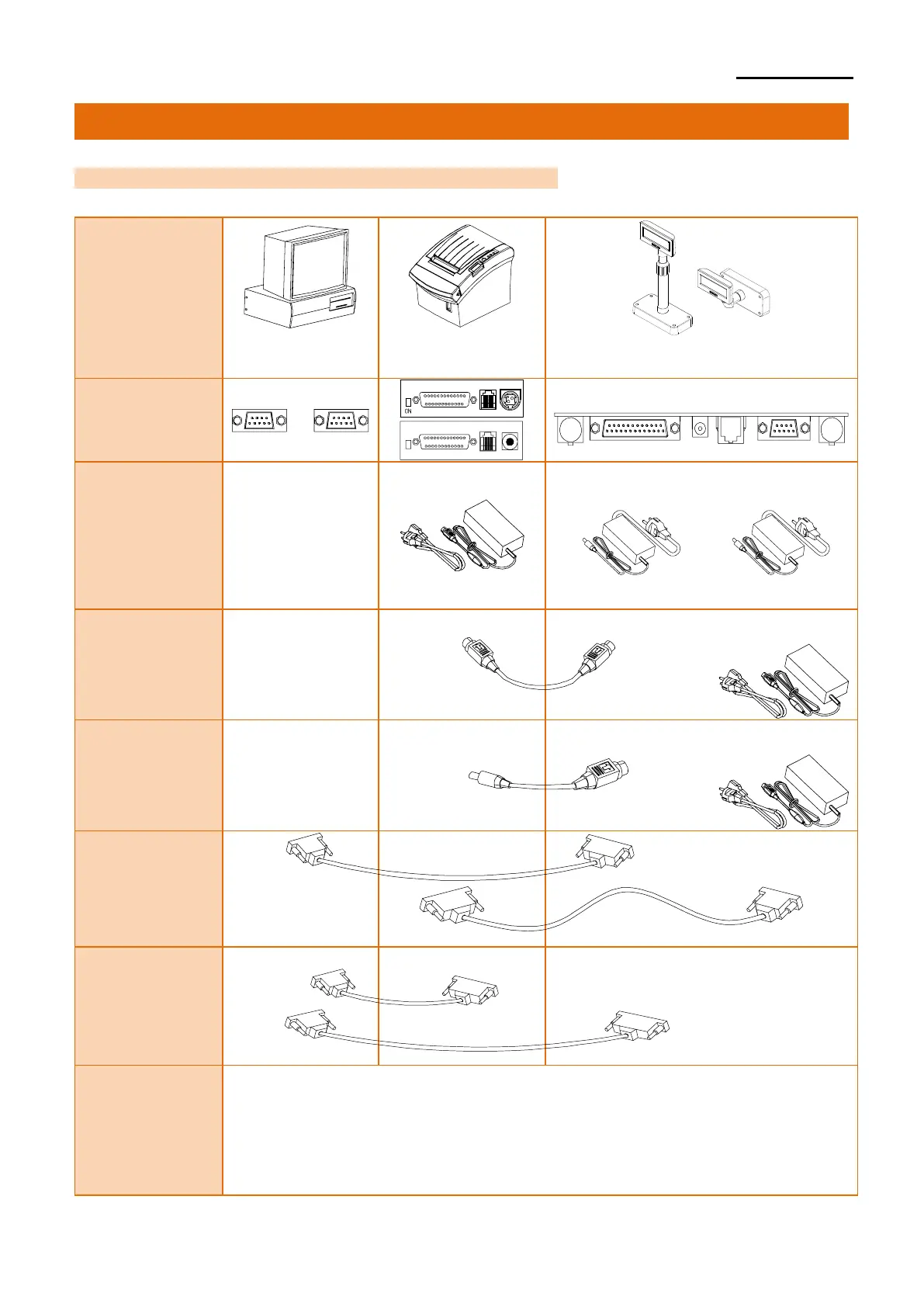

4. Connection Types & Sizes
4-1 Connection Types (BCD-2000A/N/DS/WA/WN/WDS)
Standard
Components
(Host PC Side)
▼
(Printer Side)
▼
(Display Side)
▼
Interface
A B C D E F
Power
Connection 1
(Separate power
supply needed
for
Rinter/Display)
-
24VDC
OR
Power
Connection 2
(SMPS→Display
→Printer)
-
24VDC
Power
Connection 3
(SMPS→Display
→Printer)
-
24VDC
Serial Cable
Connection 1
(Host→Display
→Printer)
Serial Cable
Connection 2
(Host→Printer)
(Host→Display)
Misc.
A: Power Supply Connector (Output 24VDC, 3pin)
B: Host Interface Connector (D-SUB 25pin, Female)
C: Power Supply Connector (Input 24VDC, 2pin)
D: Display Connector
E: Printer Interface Connector (D-SUB 9pin, Male)
F: Power Supply Connector (Input 24VDC, 3pin)
3 pin
3 pin
2 pin
3 pin
9 pin
25 pin
25 pin
9 pin
9 pin
9 pin
25 pin
25 pin
