BIXOLON BCD-2000 - Connecting the BIXOLON BCD-2000 Customer Display; Direct Connection Pin Configuration for BCD-2000

Rev. 1.02
- 14 -
BCD-2000
6. Connection
6-1 Connecting Direct Connection Pin

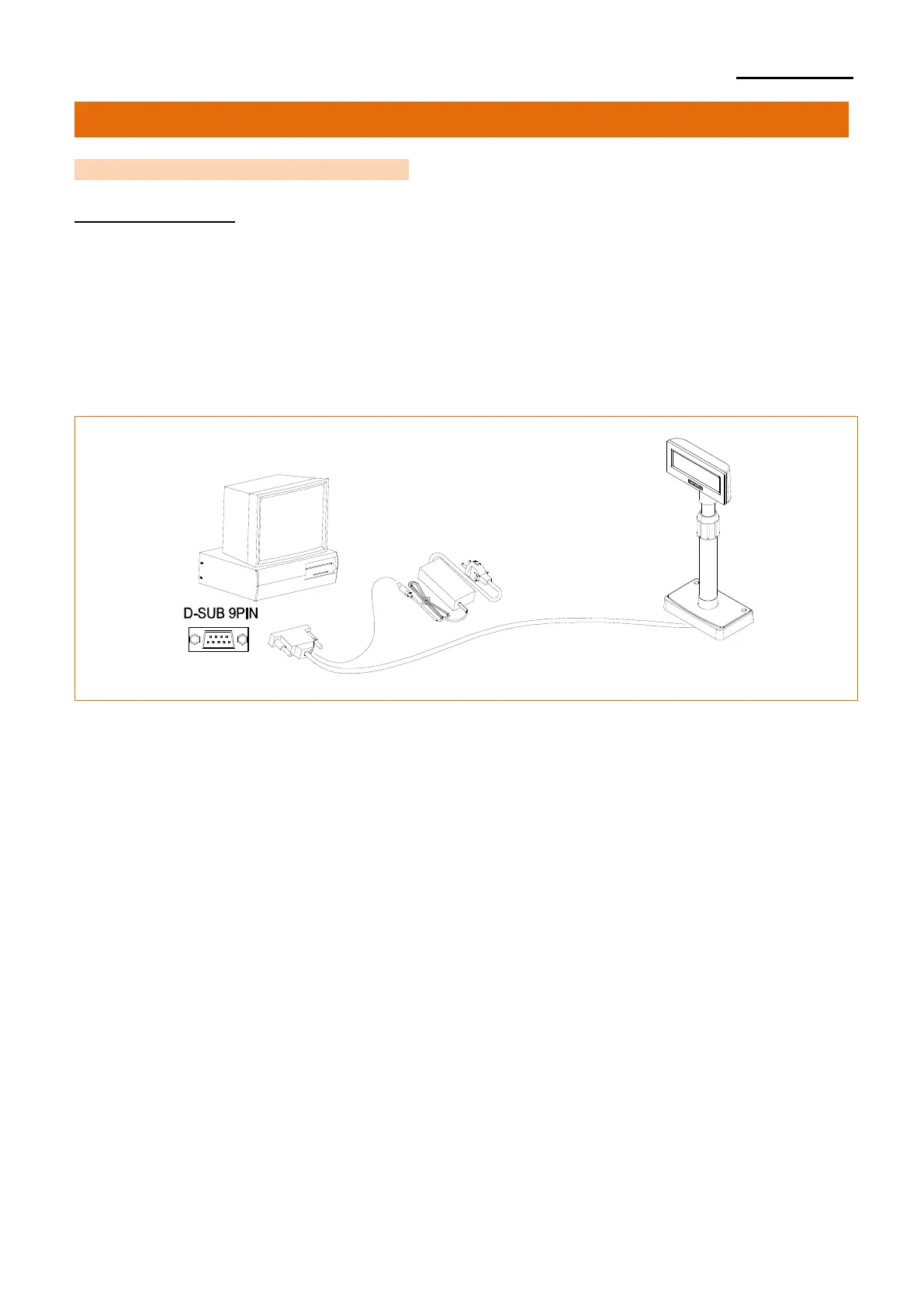

6-1-1 How to Install
1) Turn off the PC.
2) Connect the display cable to the RS-232 port on the PC.
3) Use a proper DC power adapter to connect the DC power.
4) Turn on the PC and display. The screen will turn on and ready for communication.
