BIXOLON BCD-2000 User Manual

Rev. 1.02
- 19 -
BCD-2000

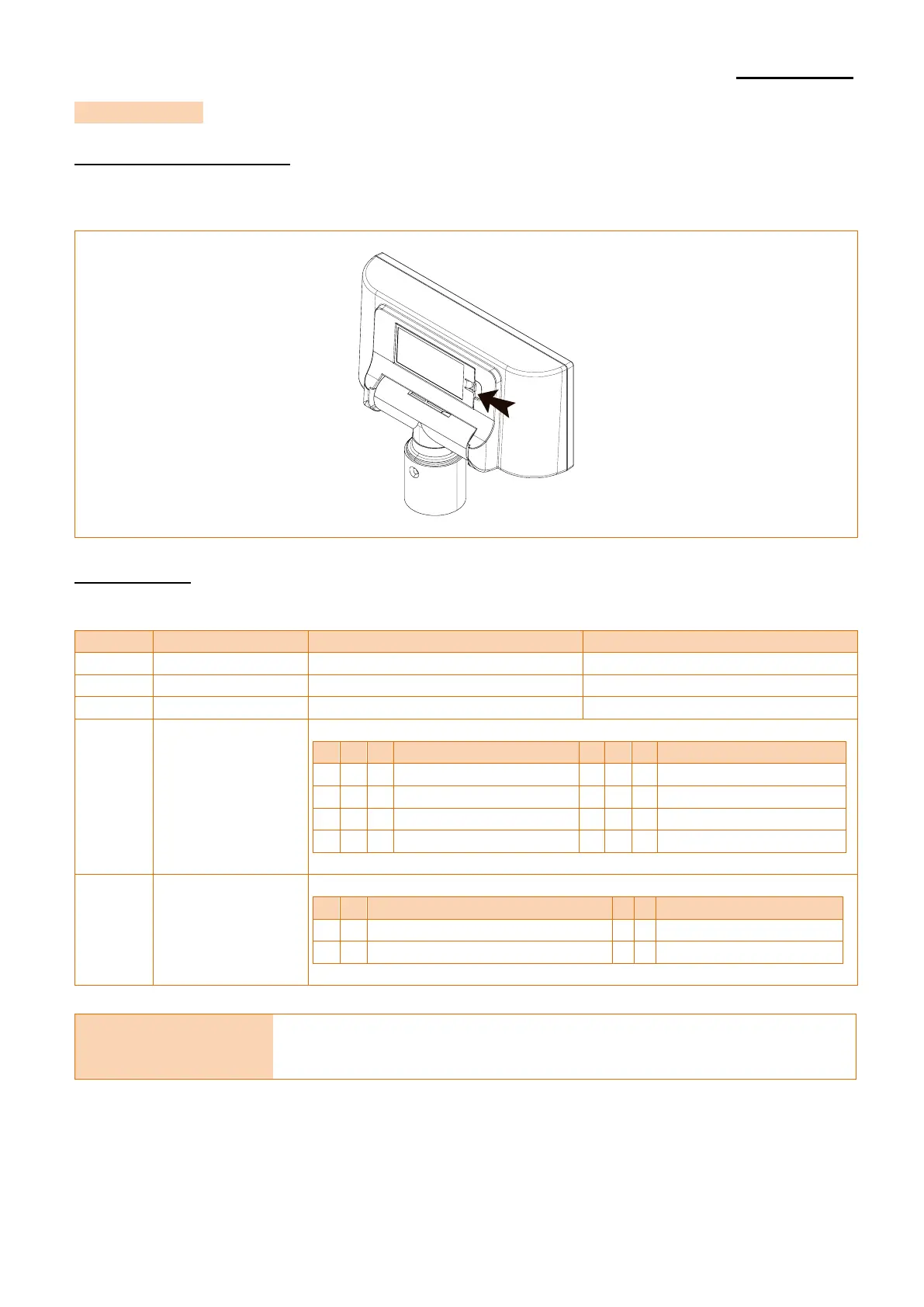

7-2 DIP Switch
7-2-1 Location & Features
• The 2 DIP switches are located on the backside of the panel.
The DIP switch cover can be removed by pressing the hook.
7-2-2 Settings
• RS-232 serial input and command emulation mode settings
No.
Function
Switch OFF
Switch ON
1
Data Length
8 bits
7 bits
2
Parity Check
Disable
Enable
3
Parity Selection
Odd
Even
4~6
Data Rate
4
5
6
Data Rate
4
5
6
Data Rate
0
0
0
9,600 bps
1
0
0
115,200 bps
0
0
1
4,800 bps
1
0
1
57,600 bps
0
1
0
2,400 bps
1
1
0
38,400 bps
0
1
1
1,200 bps
1
1
1
19,200 bps
(“0”: S/W OFF, “1”: S/W ON)
7~8
Command
Emulation
7
8
Command Emulation
7
8
Command Emulation
0
0
ESC/POS
0
1
Reserved
1
0
CD5220
1
1
Reserved
(“0”: S/W OFF, “1”: S/W ON)
Caution or Warning
- Close the DIP switch cover before operation.
- Turn off the DIP switch before changing the settings.
- New DIP switch settings apply when powered on.
