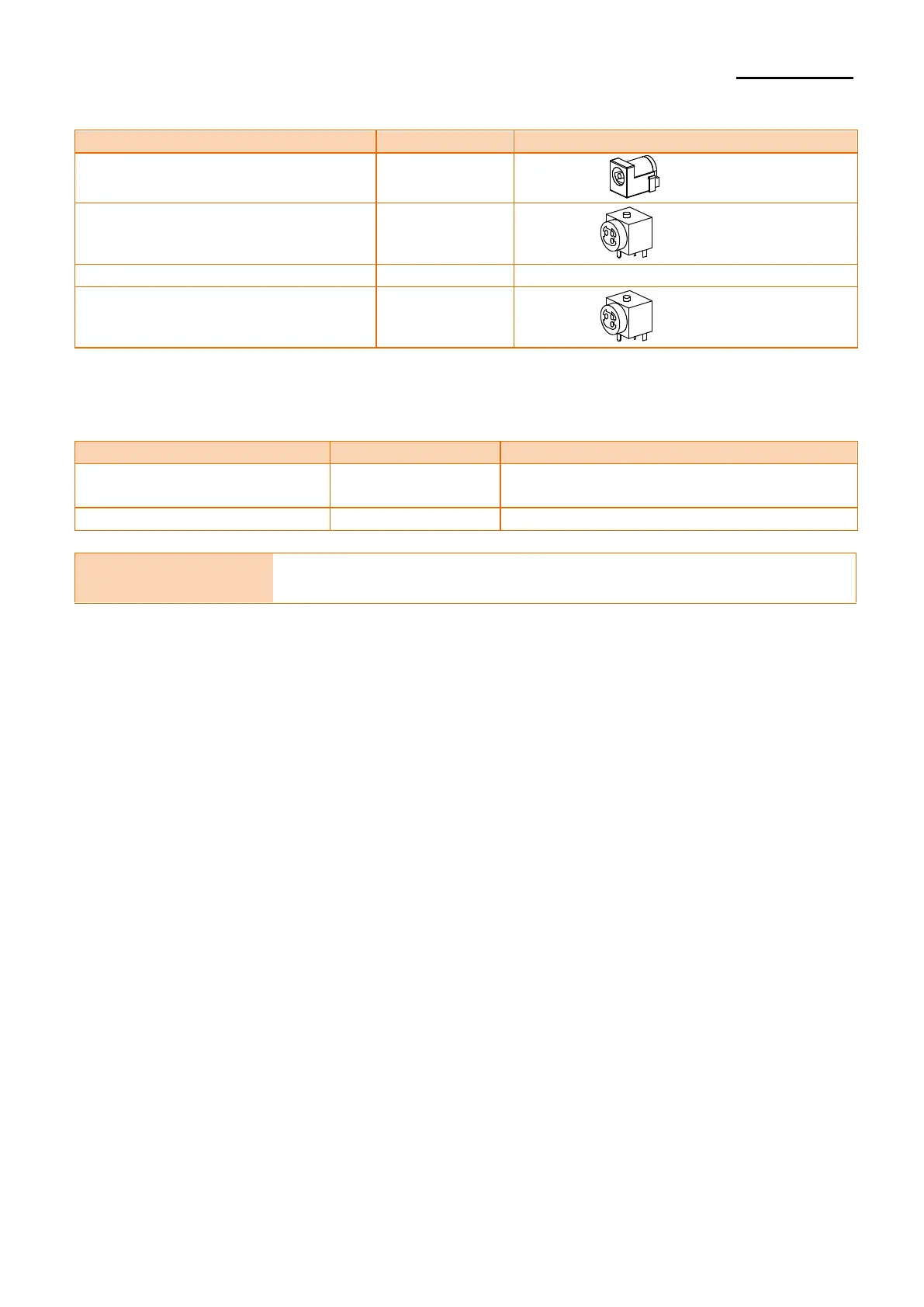

Rev. 1.02
- 23 -
BCD-2000
1) Jumper 1
Connection Mode
JP1
Jack Type
Input Power (24VDC)
1-2
Position J1
Input Power (24VDC)
2-3
Position CN1
N/C
4-5
-
Out power to print (24VDC)
(Pass Through)
5-6
Position CN2
2) Jumper 2
Can be used when Data Pass Through mode or Printer Disabled mode is selected.
Connection Mode
JP2
Function
Data Pass Through
(Default)
1-2, 4-5
Can be connected to a printer that does
not support ConneESC = command
Printer Disabled
2-3, 5-6
Do not use a printer
Caution or Warning
- Do not set the jumper switch other than how specified above to
avoid damage or malfunction.
