BIXOLON SRP-352plusIII User Manual

SRP-352plusIII
Rev. 1.01
- 34 -

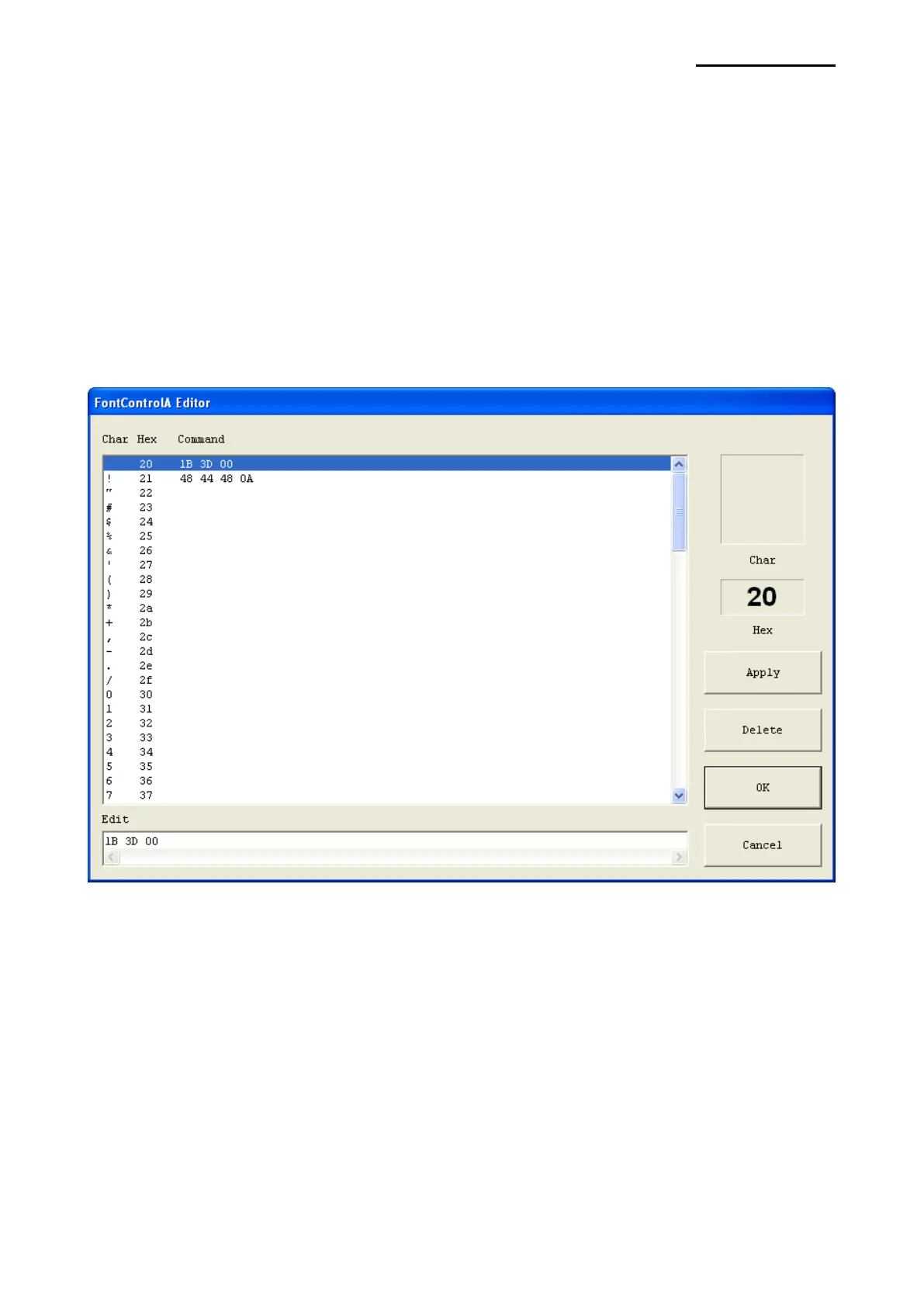

5-6-2 Special Font Edit Utility
The purpose of the “FontControlA” font is not for text printing. It is used to define the
printer command, assign the defined printer command to a specific ASCII character, and
send it to the printer. The range of ASCII code that the command can be assigned is from
0x20 to 0x7F, and the command can be easily assigned using this utility.
1) Click “Special Font Edit Utility”.
2) Select an ASCII code character and enter the printer command. All values should be
entered in hexadecimal number format.
3) Click “Apply” and then click “OK”.

BIXOLON SRP-352plusIII Specifications

General

Type	POS printer
Character size	24 x 24 mm
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Wi-Fi	-
Ethernet LAN	Yes
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Product color	Gray
Flash memory	32 MB
Internal memory	64 MB
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, ITF, ITF-14, ITF-25, Micro QR Code, QR Code, UPC-A, UPC-E
Autocutter durability	1.8 million cuts
Maximum roll diameter	83 mm
Supported paper width	80/58 mm
Maximum printing width	72 mm
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	146 mm
Width	145 mm
Height	200 mm
