BIXOLON SRP-352plusIII User Manual

SRP-352plusIII
Rev. 1.01
- 36 -
6) Select the file to print from the list and click “Print” to print the data stored in the file.

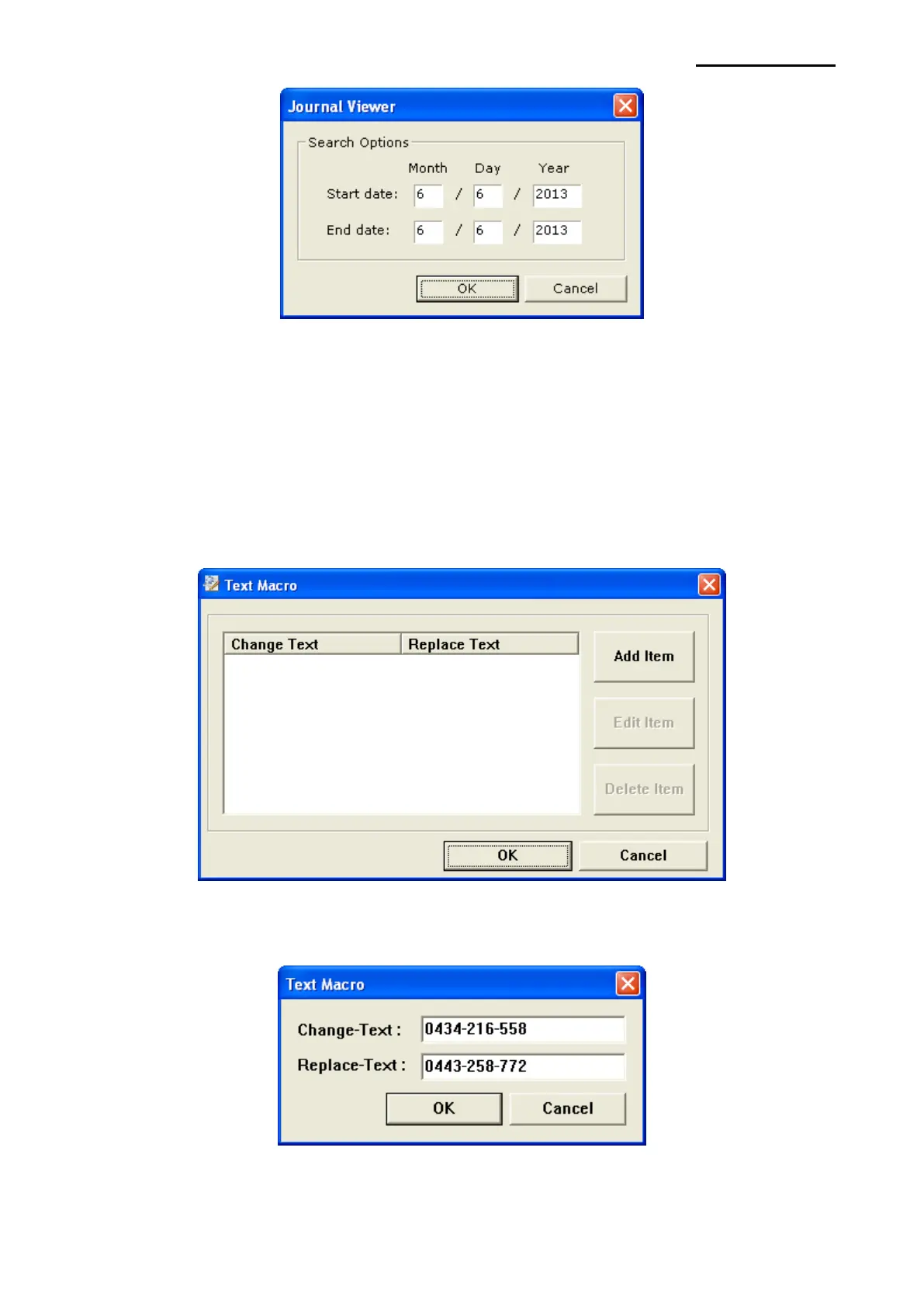

5-6-4 Text Macro
Text Macro is a utility to replace specific text with other text for printing. This function can
be used only when using Device Fonts and it has no effect when using True Type Fonts.
Detailed instructions are shown below.
1) Tick “Enable Text Macro” and click the “Text Macro” button.
2) Click “Add Item”, enter the text to change in the “Change-Text” field, enter the text to
place within the “Replace Text” field, and click “OK”.

BIXOLON SRP-352plusIII Specifications

General

Type	POS printer
Character size	24 x 24 mm
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Wi-Fi	-
Ethernet LAN	Yes
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Product color	Gray
Flash memory	32 MB
Internal memory	64 MB
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, ITF, ITF-14, ITF-25, Micro QR Code, QR Code, UPC-A, UPC-E
Autocutter durability	1.8 million cuts
Maximum roll diameter	83 mm
Supported paper width	80/58 mm
Maximum printing width	72 mm
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	146 mm
Width	145 mm
Height	200 mm
