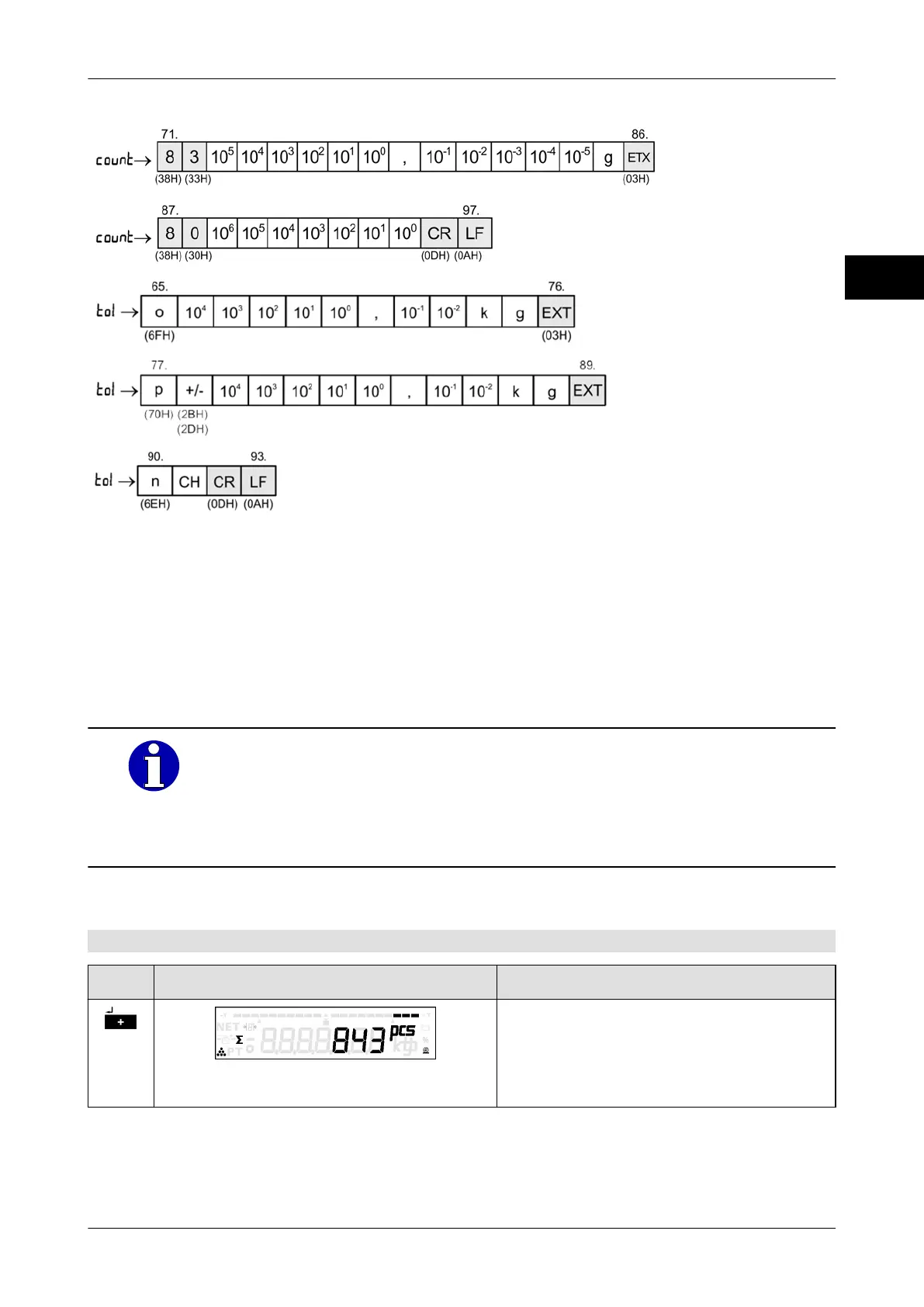

Operating instructions iS10 / iS20 Operation
38019417000 en 47
5
Reference weight
Quantity
Target value
Deviation +/-
Result +/-
Values of character CH:
3DH (=): Good weight
3CH (<): Under weight
3EH (>): Overweight
With activated dimension lb the item recording is also done in dimension lb and the weight
value is added to memory *lb.
For operating modes and parameter settings for printer and PC/EDP
see page 50.
Factory settings for print and send data are marked with an arrow. With
active counting function, data marked "count" and with an arrow are
added.
5.13.2 Total recording
A total recording is only possible after a total display was activated, see page 43.
Key Display presentation Process description
Registration process
All total memories are set to 0 (number
of pieces, weight, item counter).
Return to weighing mode.
