7.1 The dialog frame of the transport protocol

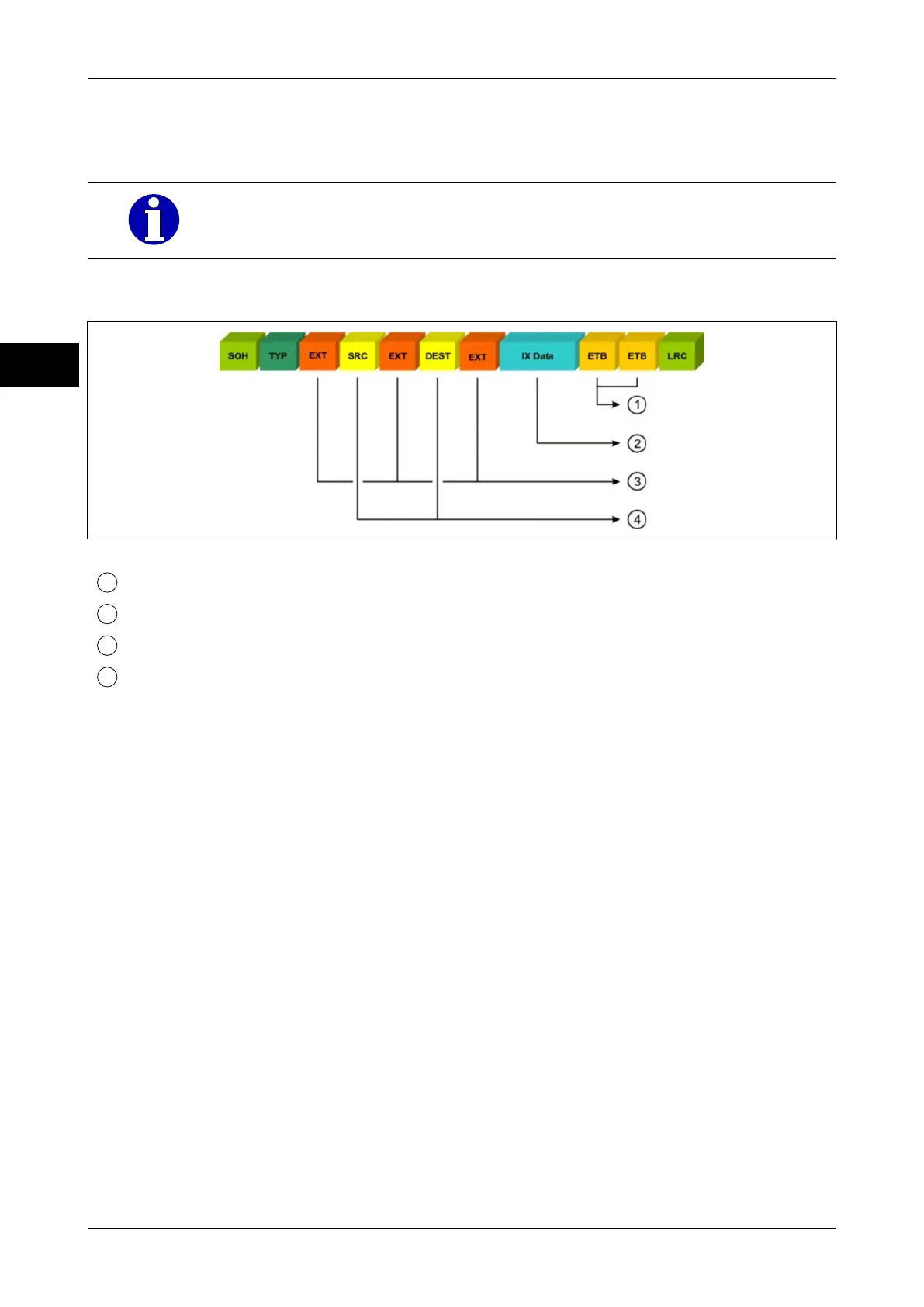

Fig. 19: Dialog context IX/Data
1
End character (...2 byte)
2
User data (max. 1024 bytes): Readable user data in Ix-Net format
3
Separator (3x1)
4
SRC = Source ID (254)
DEST = Destination ID (1-3 bytes)
Start character, end characters and LRC are used in the physical transmission layer in or-
der to guarantee a safe data transfer. These characters form the external frame of a data
record. They include no text.
Example of a typical configuration:
