Operating instructions iS10 / iS20
PC/EDP and printer interface
38019417000 en
53
6

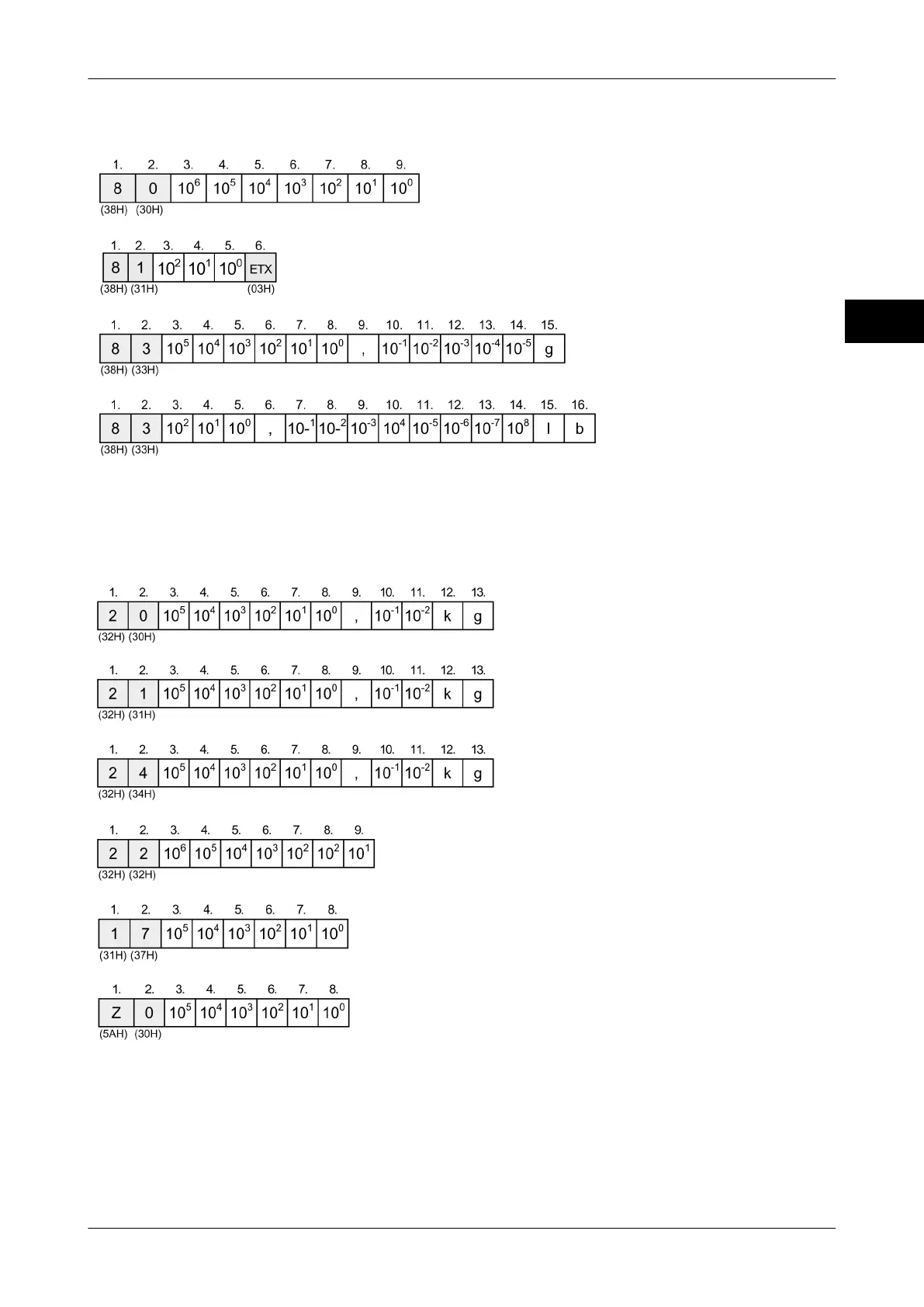

Counting values
Quantity
Reference number
Reference weight for kg
Reference weight for lb
Total values
Identifier = 2 (32H)
* Net weight
* Tare weight
* Gross weight
* Quantity
For item recording adding: Item coun-
ter is set to 1 with total recording.
Consecutive item number
54
