1 Remote Operation
1.1 Interface Connection
RS-232

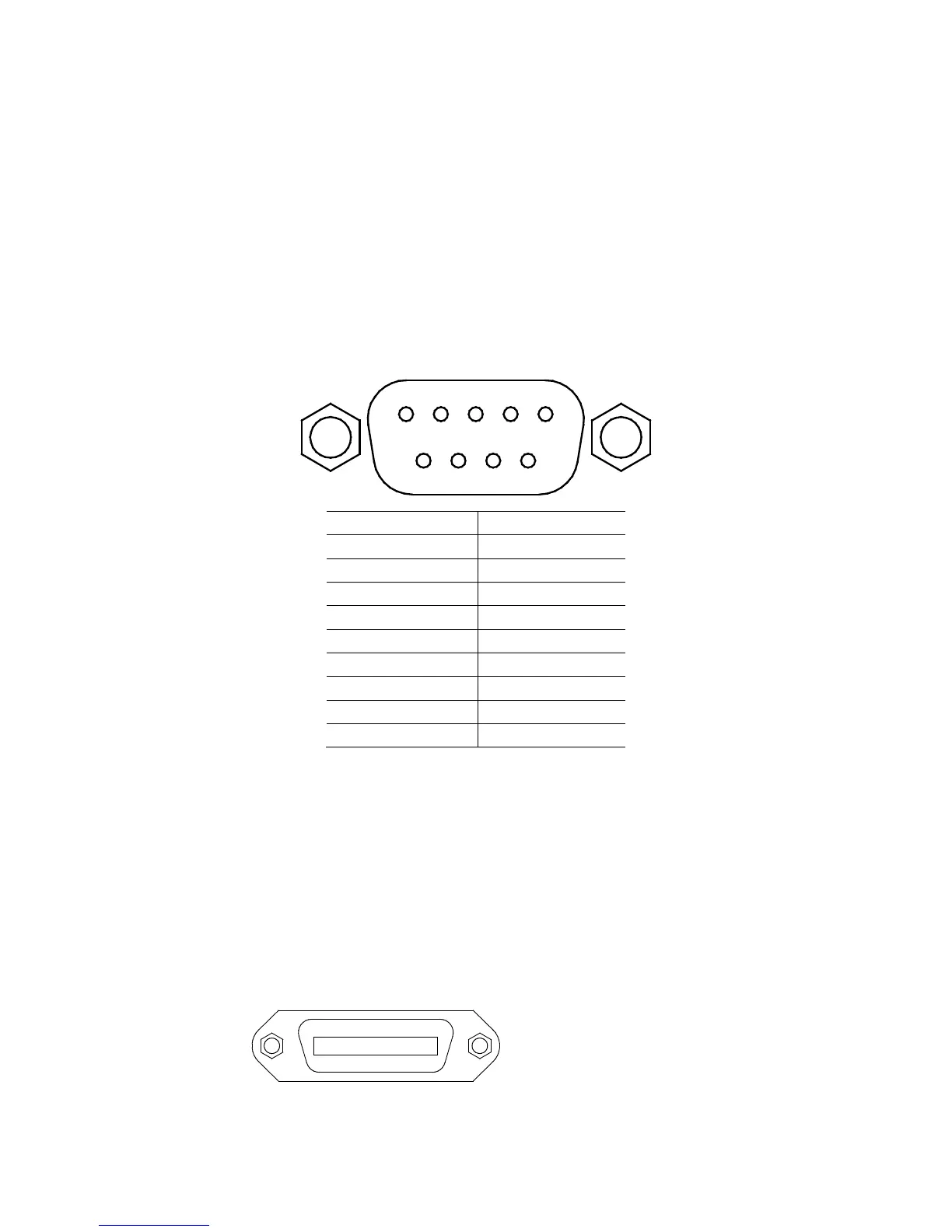

For RS-232 connectivity, refer to the diagram below for pin out information. The RS-232 is
labeled in the rear panel and it is a female DB-9 interface.
PIN
Description
1
-
2
Transmit Data
3
Receive Data
4
-
5
GND
6
-
7
-
8
-
9
-
A straight pin-to-pin DB9 female to DB9 male serial cable is required for using the RS-232
interface. Do not use a null modem or crossover DB9 serial cable.
Refer to the user manual for details on configuring all serial settings as required for RS-232
communication.
GPIB
The power supply can be configured with a GPIB address from 0 – 31. To communicate via GPIB,
connect a GPIB cable to the GPIB interface on the rear panel, as illustrated below.
1
2
3
4
5
6
7
8
9
