Operang Instrucons - BPS2000v2 Monitoring Power Distribuon Unit
x M
Madbus RTU protocol version
Interface: serial transmission port with two RS-485 lines, asynchronous transmission, bidireconal semi-
duplex transmission, the least significant bit will have priority.

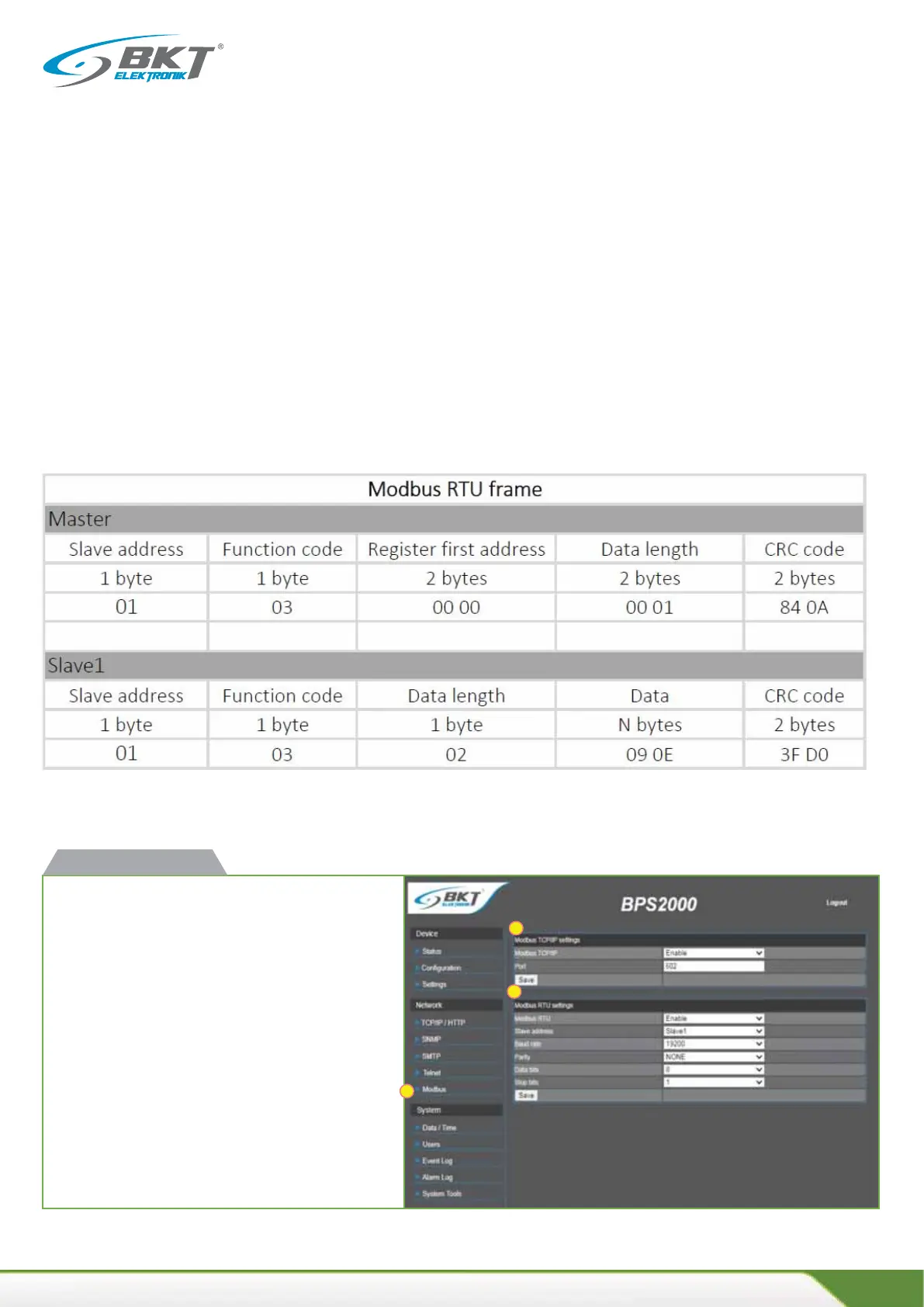

Example of Modbus RTU frame
Default transmission aributes in BPS2000
x Default: 9600bps
x Bits: 8
x Parity: No
x Stop bit: 1
ModBus seƫngs
Slave address: (Slave1-Slave32)
Baud rate : 4800 bps, 9600 bps, 19200 bps, 38400 bps
Parity:
: NONE, ADD, EVEN
Data bits (8 lub 9)
Stop bits (1 lub 2)
BPS2000v2 web interface
1
2
