3.3.4 OPTIONAL LED INDICATOR CONNECTIONS
The optional Freedom LED Monitor module (part number: KV0004A-LED) with four indicators enables you to add LED (Light Emitting
Diode) indicators to each of your video display screens to show which are active.
The optional Freedom LED Monitor module connects to the OPTIONS port of the main Freedom II switch. Each individual LED moni-
tor indicator then connects to one of the ten ports on the Freedom LED Monitor module.
3.3.4.1 TO CONNECT THE FREEDOM LED MONITOR MODULE AND INDICATORS
1. Remove power from the switch. Use the flat cable supplied with the Freedom LED Monitor kit to link the module to the OPTIONS
port of the Freedom II switch. See Figure 3-7.
Link cable
(Included in Freedom LED
Monitor kit)
Freedom LED
Monitor module

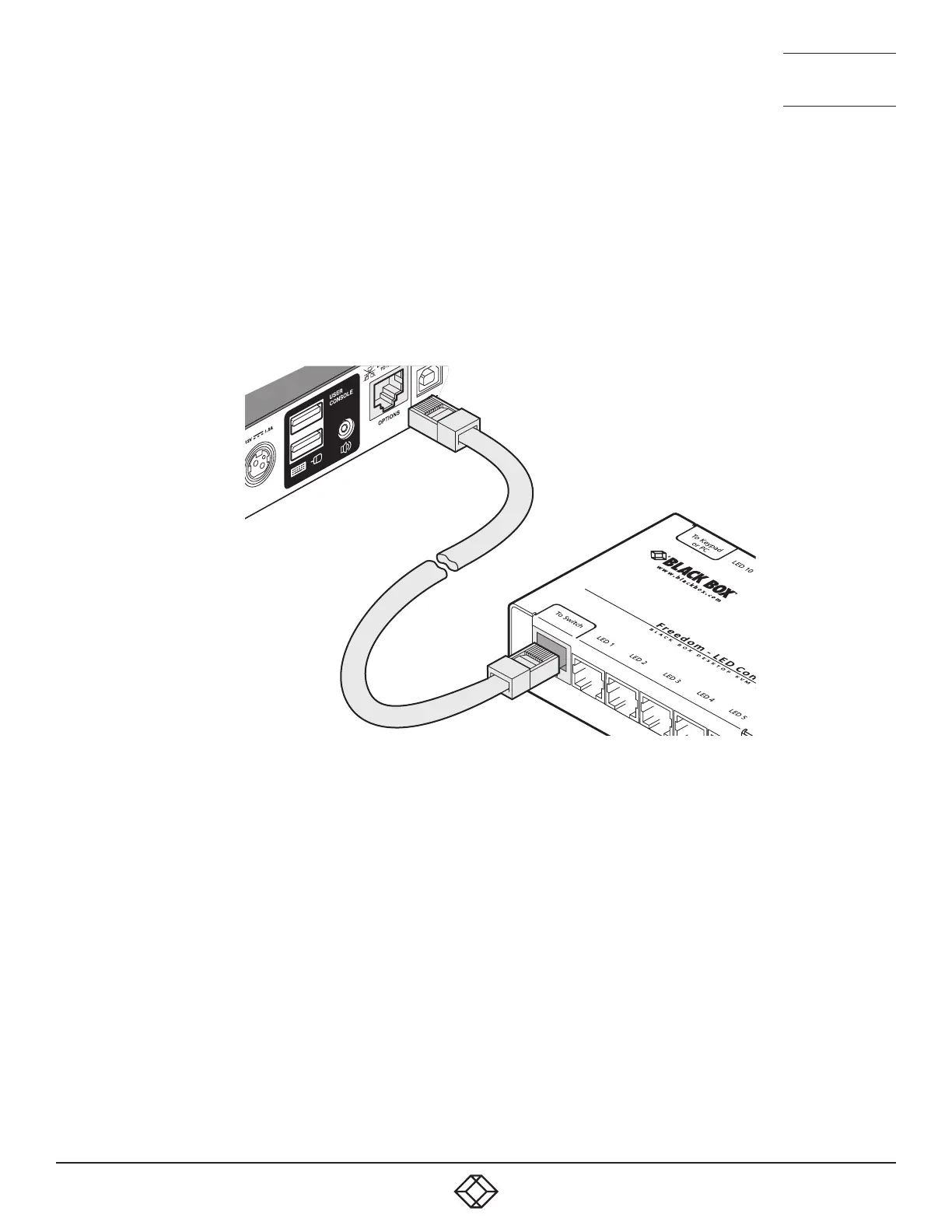

Figure 3-7. Linking the Freedom LED Monitor module to the Freedom II switch.
Note: If a system or an external control is connected to the Options port, remove this first. It can be attached to the Freedom LED
Monitor module later.
IMPORTANT: Do not
connect the OPTIONS
port to any network.
