5.1.2 SELECTING A COMPUTER USING THE FRONT PANEL
The front panel allows you to determine how the various peripherals are switched to one or more computer channels.
MODE
MODE
MODE
MODE
MODE
Will switch all peripherals together
Will switch keyboard, mouse and speakers
Will switch only the keyboard and mouse
Will switch only the speakers
Will switch only USB peripheral 1
Will switch only USB peripheral 2

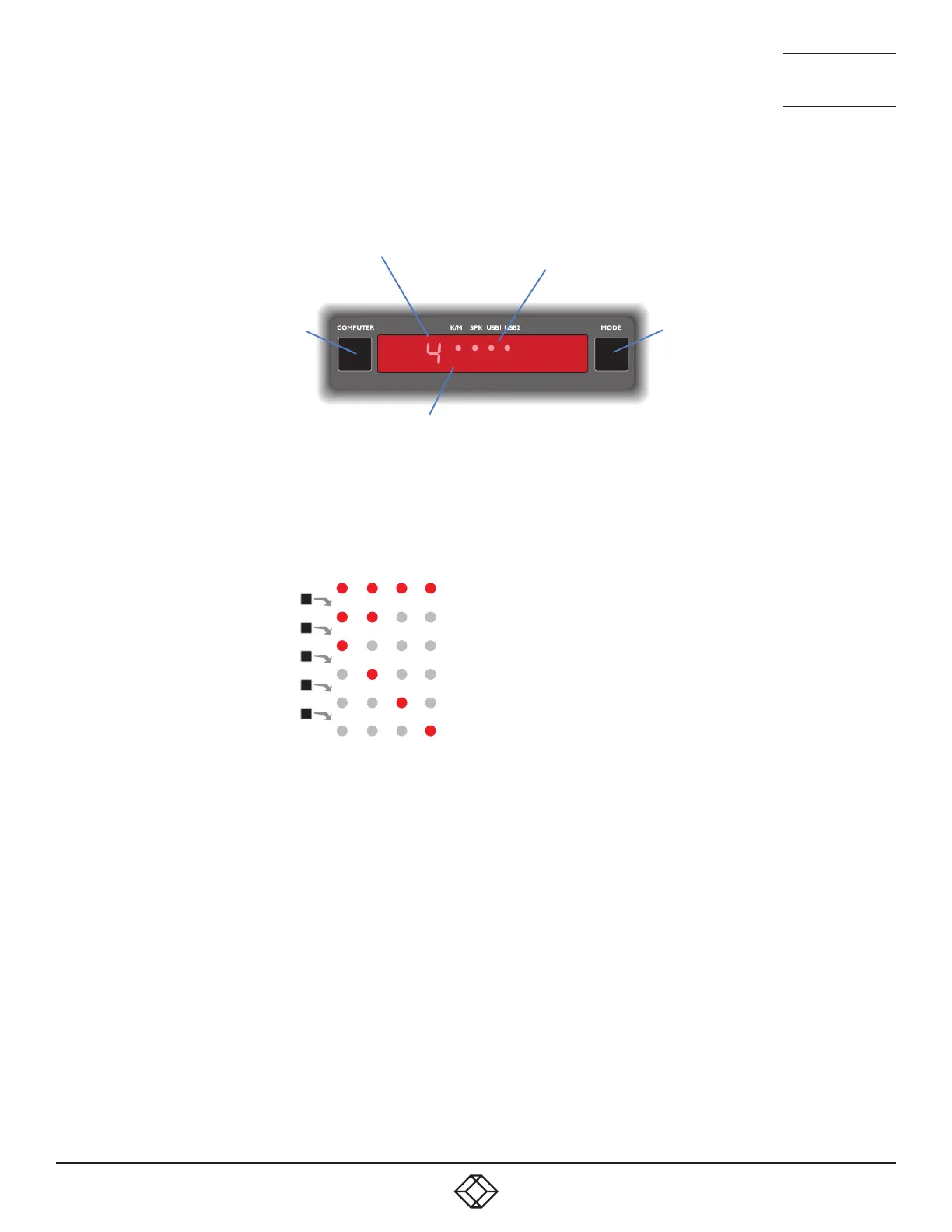

Figure 5-1. Front panel buttons and indicators.
TO SELECT A COMPUTER USING THE FRONT PANEL
1. Optional: If you need to selectively switch some of your peripherals, press the MODE button repeatedly to change the switching
mode:
Figure 5-2. Changing the switching mode using the MODE button.
Note: If an indicator flashes, it signifies that the respective peripheral is currently switched to another computer channel.
The peripherals to be switched using the Glide and Switch method are set independently
2. Press the COMPUTER button repeatedly to select the required computer channel.
Use this button to choose
which peripherals will be
switched
The upper K/M, SPK, USB1, and USB2 indicators show which
peripherals are switched to the current computer channel OR (as
you begin pressing the MODE button) the peripherals that will be
switched during the next press(es) of the COMPUTER button.
Use this button to
choose the next
required computer
Indicates the number of the
currently selected computer
The lower four indicators will intermittently scroll
across whenever Glide and Switch is enabled.
To Next Page
