CHAPTER 5: OPERATION
5.2 KVM SWITCHING
You have the following option to perform switching operations with the Modular KVM Matrix Switch.
OSD
OSD
 Select Switch in the main menu.
Press <F8> to show inactive CPU devices to expand the current view.

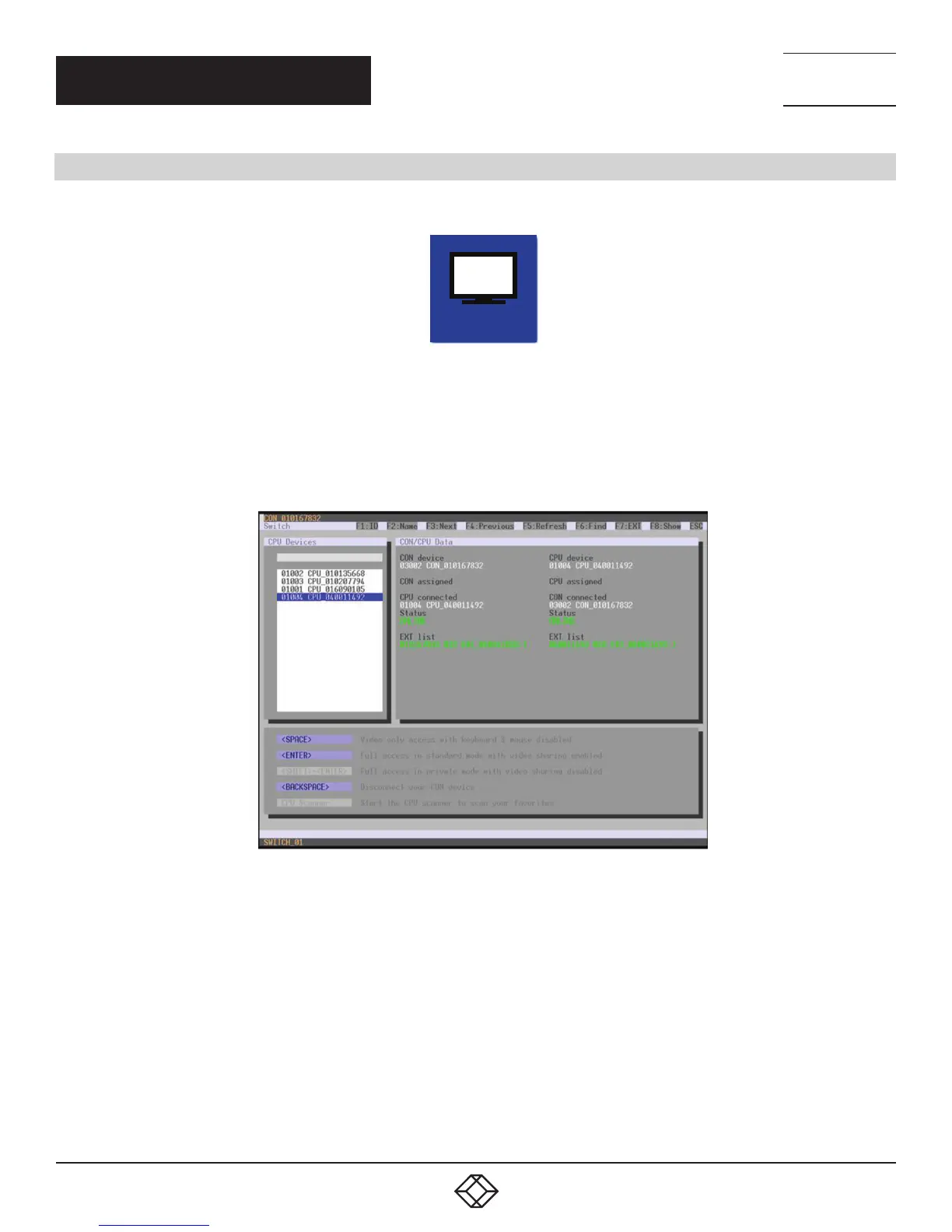

FIGURE 5-1. SWITCH MENU
To switch the console to any available CPU, proceed as follows:
1. Select in the CPU Devices list on the left hand side that one that should be connected to the CON Device.
2. Confirm desired connection type with the appropriate keyboard command.
Switching operations from the own CON Device can only be performed on CPU Devices that are available in the CPU Devices list.
NOTE: Listed CPU Devices highlighted in red color are currently connected in Private Mode and are blocked by the connected CON
Device.
