CHAPTER 4: CONFIGURATION
NOTE: An active filter is indicated by an asterisk in the header.
The filter function is based on the functional principle of common web search engines.
OFFLINE CONFIGURATION
Configuration and system settings via Java Tool can be changed in offline mode without a direct connection between matrix
and Java Tool.
To activate a matrix configuration, proceed as follows:
1. Select File > Upload in the menu bar.
2. Enter the IP address of the matrix (see Section 4.2.3) and the name and password of the user authorization and select the storage
location of the new configuration (default or config01-08) in the Select Configuration menu.
3. Select Matrix > Connect in the menu bar and enter the IP address of the matrix and the name and password for user authorization.
4. Select Administration > Activate Configuration in the task area and select the storage location that has been selected above.
5. Use the Activate button to open the selected configuration within the matrix.
The connection and the open tab will be closed and the matrix will be restarted.
NOTE During the activation of a configuration, the matrix is temporarily unavailable.
ONLINE CONFIGURATION
Configurations and system settings can be also edited via Java Tool in online mode with an active connection between matrix
and Java Tool.

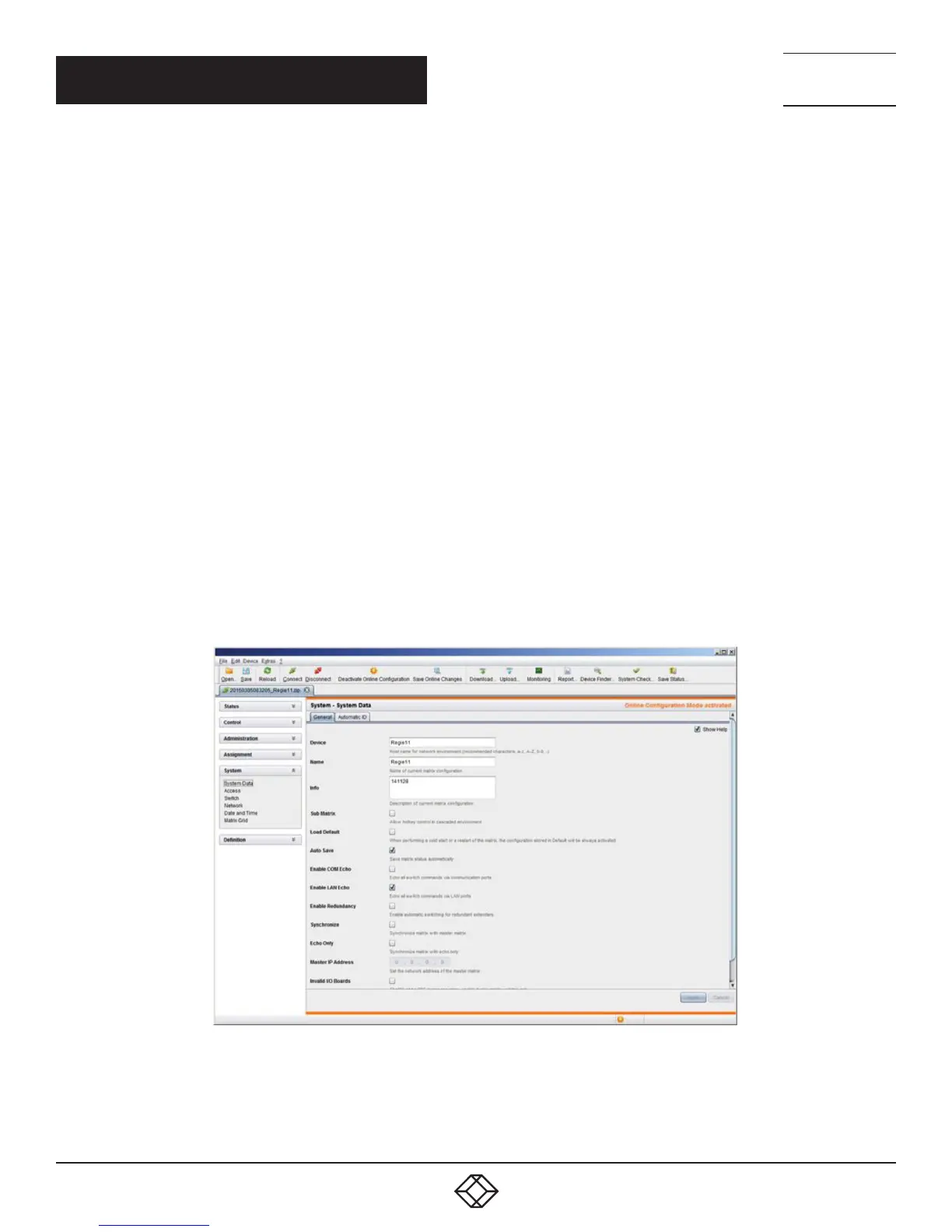

FIGURE 4-5. SYSTEM—SYSTEM DATA
