CHAPTER 4: CONFIGURATION
You can select the following settings.
TABLE 4-13. AUTOMATIC ID SETTINGS
FIELD SELECTION DESCRIPTION
Enable Auto Config
activated
Automatic creation of a new CPU or CON Device if new extender units are connected
(default)
deactivated Function not active
ID Real CPU Device Numerical value Initial value of the automatic ID for real CPUs (default value: 1000)
ID Virtual CPU Device Numerical value Initial value of the automatic ID for virtual CPUs (default value: 2000)
ID Real CON Device Numerical value Initial value of the automatic ID for real CONs (default value: 3000)
ID Virtual CON Device Numerical value Initial value of the automatic ID for virtual CONs (default value: 4000)
OSD
 Select Configuration > System in the main menu.

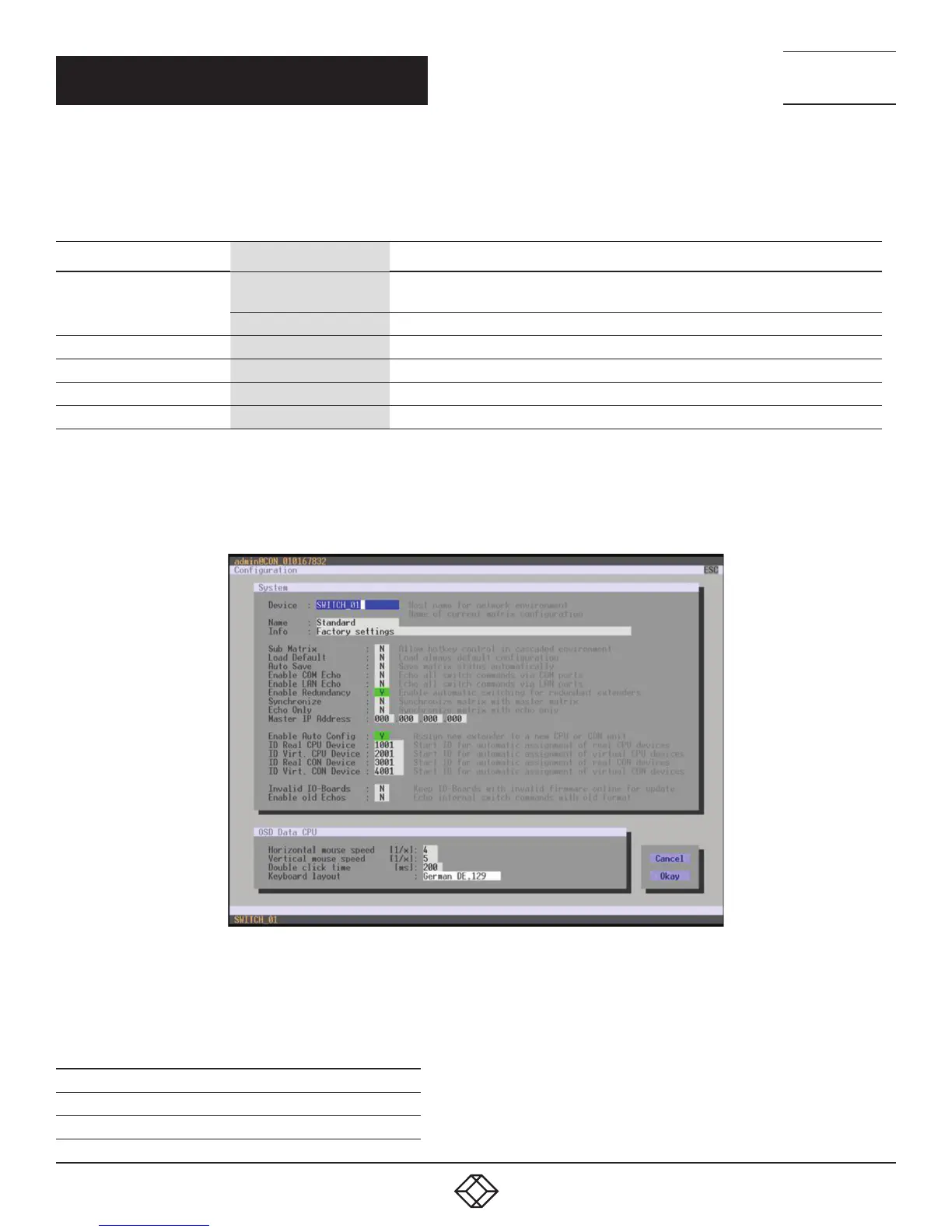

FIGURE 4-13. CONFIGURATION—SYSTEM
You can select the following buttons.
TABLE 4-14. BUTTONS
BUTTON FUNCTION
Cancel Reject changes
Save Save changes
