BLEMO ER12 - Dimensions and Weights

11

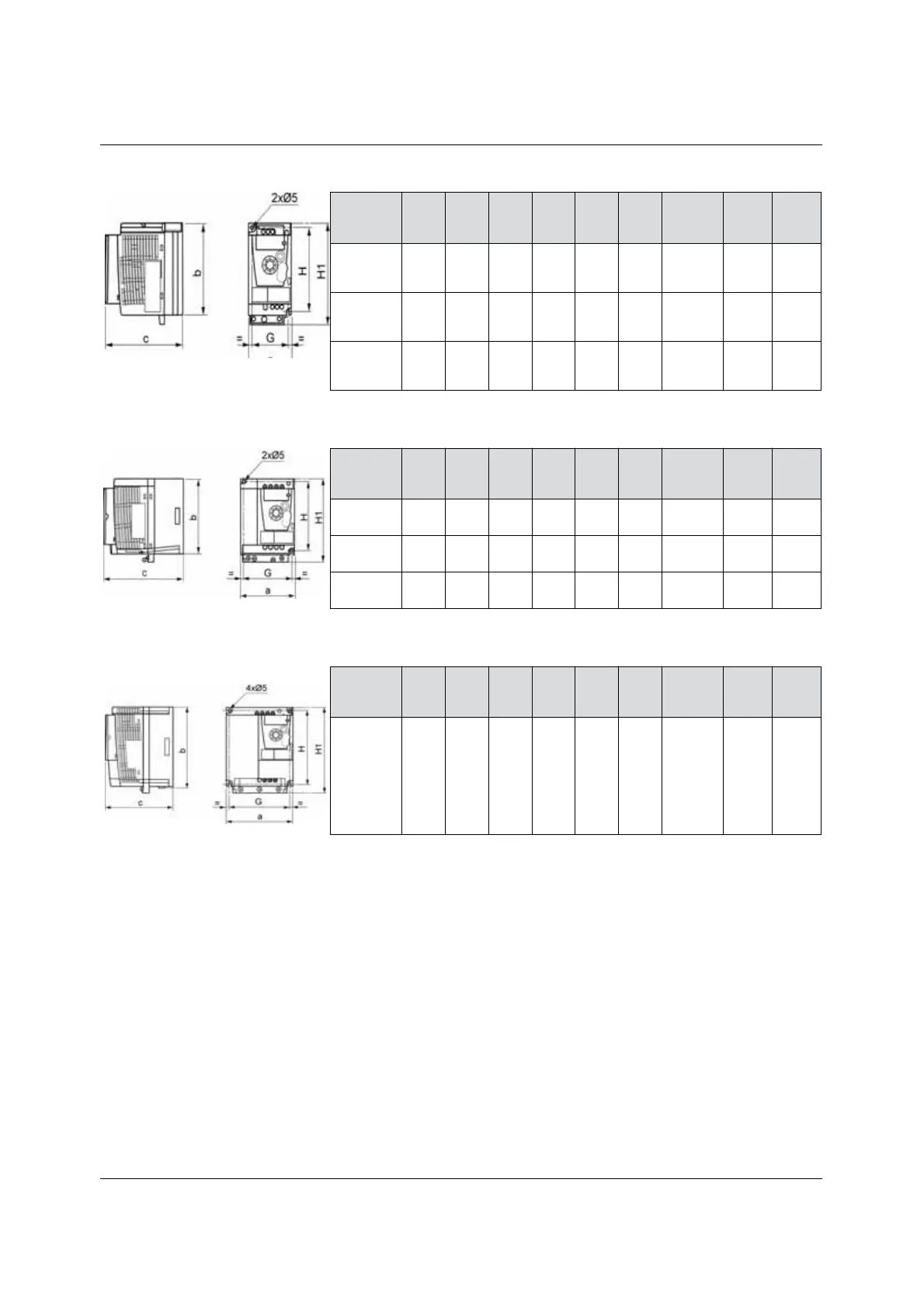

Dimensions and weights
ER12-
a
mm
b
mm
c
mm
(B)
G
mm
H
mm
H1
mm
Ø
mm
For
screws
Weight
kg
(lb)
0.18KU
0.18K
0.18/3K
72 142 102.2 60 131 143 2 x 5
M4
0.7
(1.5)
0.37KU/BU
0.37K/B
0.37/3K/B
72 130 121.2
(102.2)
60 120 143 2 x 5
M4
0.8
(1.8)
0.55K/B
0.75K/B
0.75/3K/B
72 130 131.2
(102.2)
60 120 143 2 x 5
M4
0.8
(1.8)
ER12-
a
mm
b
mm
c
mm
(B)
G
mm
H
mm
H1
mm
Ø
mm
For
screws
Weight
kg
(lb)
0.75KU
105 130 156.2 93 120 142 2 x 5
M4
1.3
(2.9)
1.5K
2.2K
105 130 156.2 93 120 142 2 x 5
M4
1.4
(3.1)
1.5/3K/B
2.2/3K/B
105 130 131.2
(98.2)
93 120 143 2 x 5
M4
1.2
(2.6)
ER12-
a
mm
b
mm
c
mm
(B)
G
mm
H
mm
H1
mm
Ø
mm
For
screws
Weight
kg
(lb)
3.0/3K/B
4.0/3K/B
140 170 141.2
(100.2)
126 159 184 4 x 5
M4
2.0
(4.4)
