Configuration Mode ConF
Configuration mode includes 3 parts:
1. MyMenu includes 11 factory set parameters (among them 9 visible by default). Up to 25 parameters are available for user customization
using software.
2. store/recall parameter set: these 2 functions are used to store and recall customer settings.
3. FULL: This menu provides access to all other parameters. It includes 6 sub-menus:
- Macro-configuration CFG- page 46
- Input Output menu I_O- page 47
- Motor control menu drC- page 56
- Control menu CtL- page 60
- Function menu FUn- page 62
- Fault detection management menu FLt- page 77
- Communication menu COM-page 83.

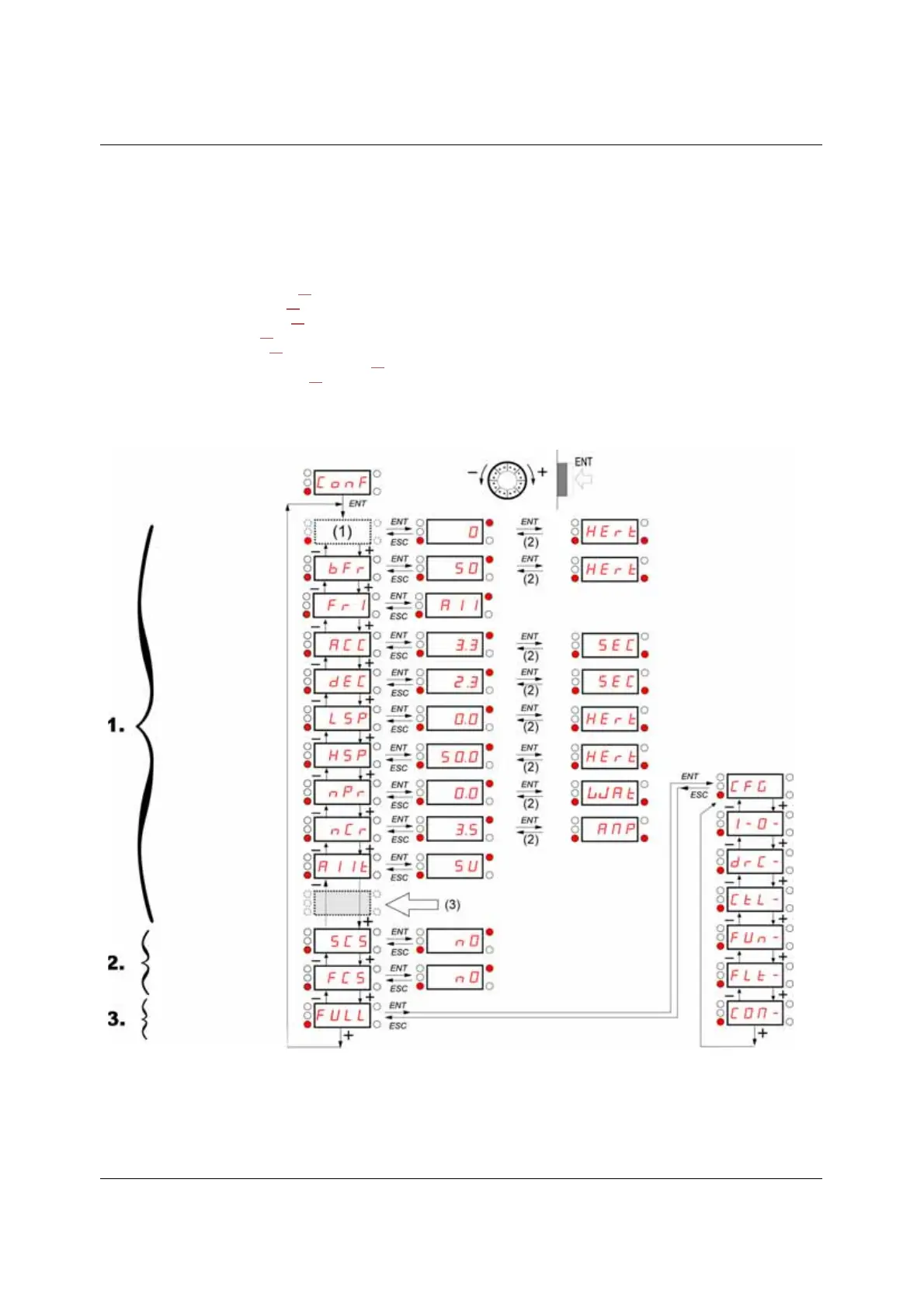

Organization tree
Motor frequency
Reference channel 1
Acceleration
Deceleration
Low speed
High speed
Motor rated power
Motor rated current
AI1 type
Store customer
parameter set
Factory / recall
customer parameter set
FULL
Displayed parameter values are given as examples only
(1) Depending on reference channel
active.
Possible values: LFr or AIU1
(2) 2 seconds or ESC. (3) plus 14 other customizable parameters selectable (in "FULL" list)
using software.
