Mounting
Installing the EMC plates
EMC mounting plate: to be ordered separately

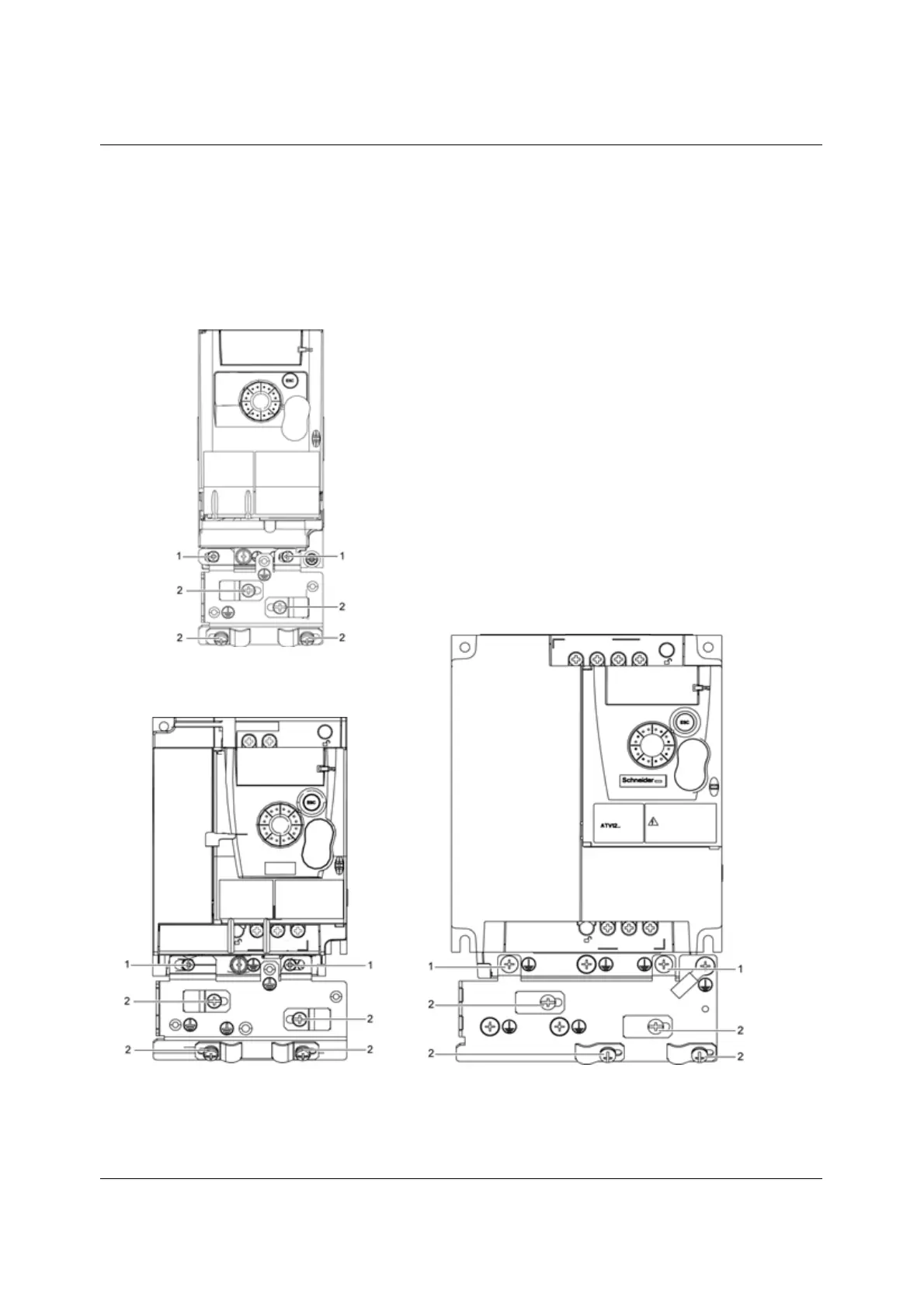

Mount the EMC mounting plate to the holes in the ER12 using the 2 screws supplied, as shown in the drawings below.
1. 2 fixing screws
2. 4 x M4 screws for attaching EMC clamps
Size 3:
ER12
-3.0/3K/B, ER12-4.0/3K/B
Size 2:
ER12-0.75KU, ER12-1.5K, ER12-2.2K,
ER12-1.5/3K/B, ER12-2.2/3B/B
Size 1:
ER12-0.18KU, ER12-0.18KU/BU, ER12-0.18K,
ER2-0.37K/B to ER12-0.75K/B
ER12-0.18/3K to ER12-0.75/3K/B
ER12-0.37KU/BU
