Control terminals

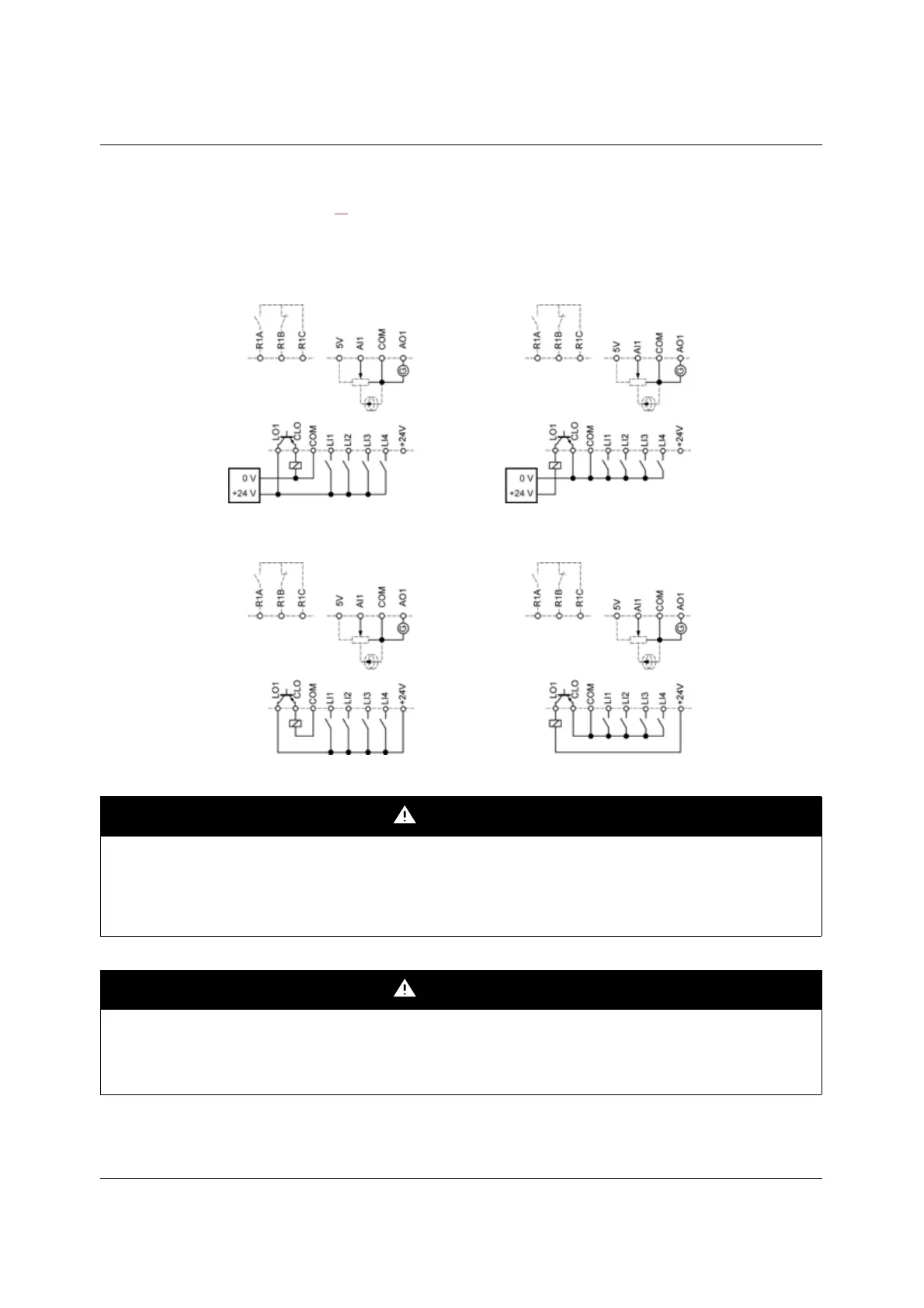

Control connection diagrams
The Logic inputs type nPL parameter page 50 is used to adapt the operation of the logic inputs to the technology of the programmable
controller outputs.
• Set the parameter to POS for Source operation.
• Set the parameter to nEG for Sink operation.
DANGER
UNINTENDED EQUIPMENT OPERATION
• The accidental grounding of logic inputs configured for Sink Logic can result in unintended activation of drive functions.
• Protect the signal conductors against damage that could result in unintentional conductor grounding.
• Follow NFPA 79 and EN 60204 guidelines for proper control circuit grounding practices.
Failure to follow these instructions will result in death or serious injury.
DANGER
UNINTENDED EQUIPMENT OPERATION
• Do not used a PLC to command the logic input of the drive in sink mode
• If this behaviour is required, contact Schneider Office for additional information.
Failure to follow these instructions will result in death or serious injury.
Source - using external supply Sink - using external supply
Source - using internal supply Sink - using internal supply
