47

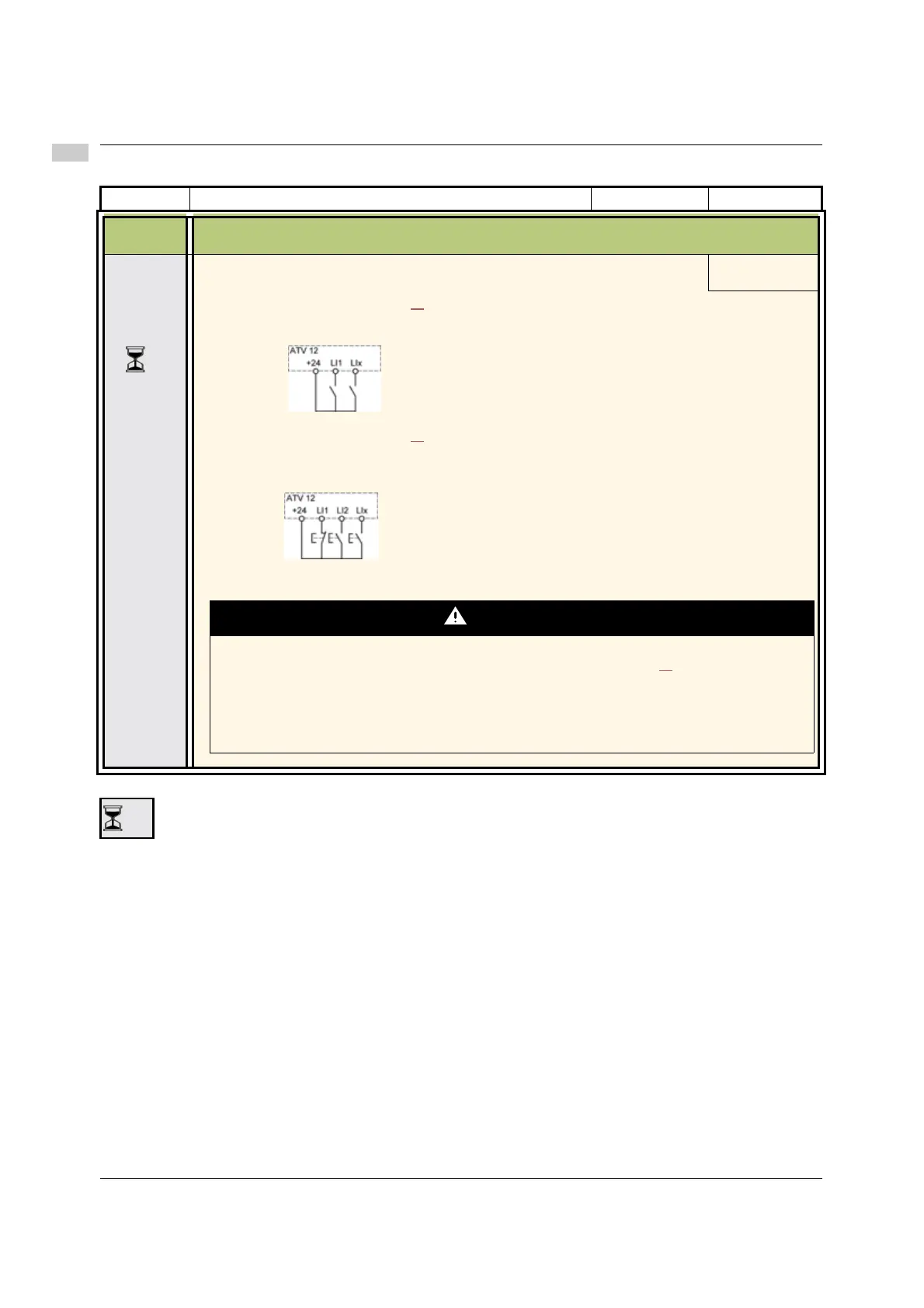

Configuration Mode - Complete menu (FULL)
Code Name/Description Adjustment range Factory setting
I_O-
Input Output menu
tCC
• Type of control
2C
2C
3C
• 2-wire control (see page 50)
The open or closed state of the input controls the running or stopping.
Example of "source" wiring:
LI1: forward
LIx: reverse
• 3-wire control (see page 50)
"forward" or "reverse" pulse is sufficient to command starting, a "stop" pulse is sufficient to command
stopping
Example of "source" wiring:
LI1: stop
LI2: forward
LIx: reverse
DANGER
UNINTENDED EQUIPMENT OPERATION
The following function will be returned to factory settings: 2 wire type control tCt page 50 as will all functions which
assign logic inputs.
The macro configuration selected will also be reset it if has been customized (loss of custom settings).
Check that this change is compatible with the wiring diagram used.
Failure to follow these instructions will result in death or serious injury.
To change the assignment of this parameter press the “ENT” key for 2 s.
I-O-
drC-
CtL-
FUN-
FLt-
COM-
2 s
2 s
