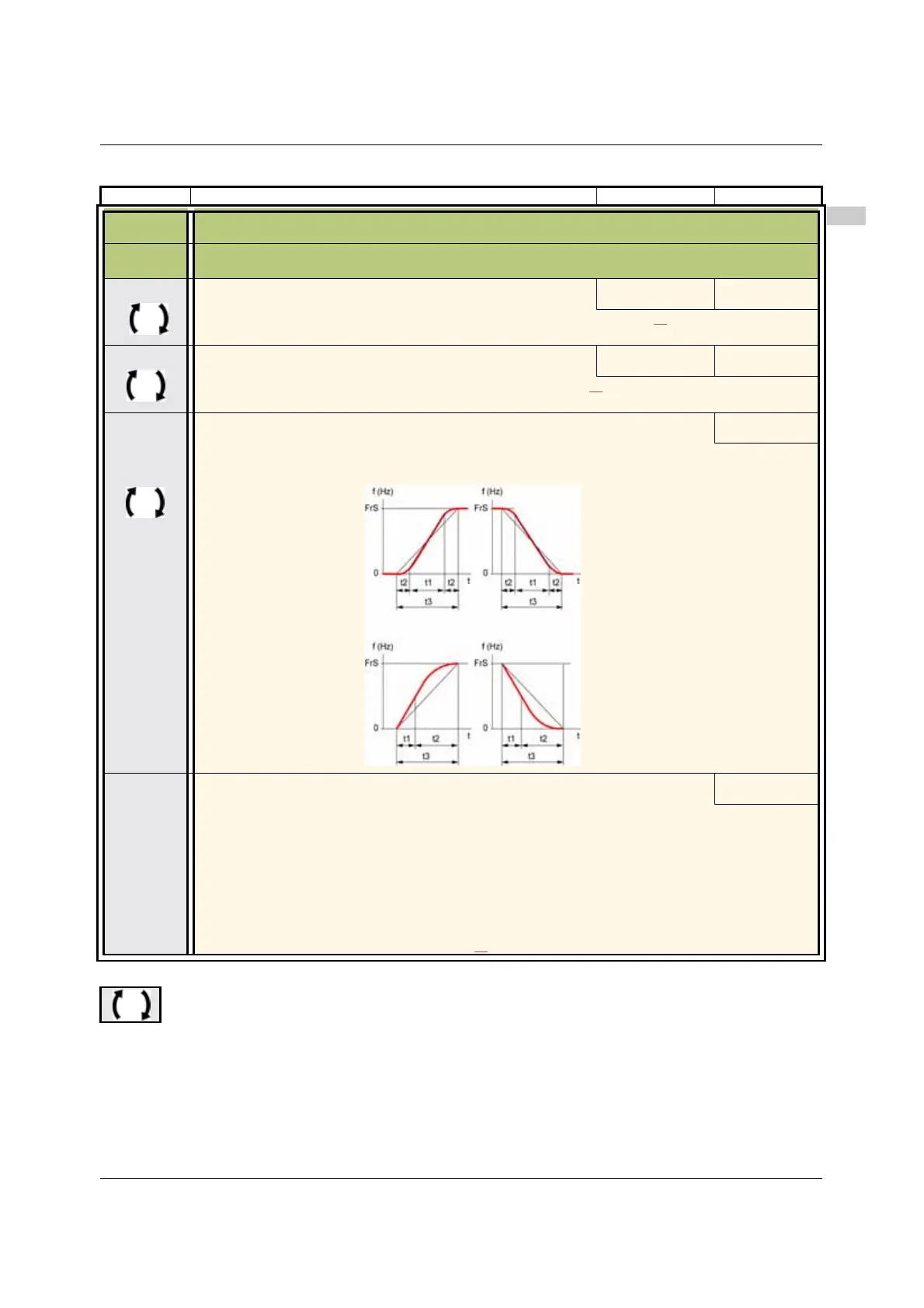

Configuration Mode - Complete menu (FULL)
Code Name/Description Adjustment range Factory setting
FUn-
Function menu
rPt-
Ramp menu
ACC
• Acceleration
0.0 s to 999.9 s
3.0 s
Acceleration time between 0 Hz and the Rated motor frequency FrS page 55.
Make sure that this value is compatible with the inertia being driven.
dEC
• Deceleration
0.0 s to 999.9 s
3.0 s
Time to decelerate from the Rated motor frequency FrS page 55 to 0 Hz
Make sure that this value is compatible with the inertia being driven.
rPt
• Ramp shape assignment
Lin
LIn
S
U
• Linear
• S shape
• U shape
S shape
U shape
The rounding coefficient is fixed,
t1 = 0.6 set ramp time (linear)
t2 = 0.4 set ramp time (round)
t3 = 1.4 set ramp time
The rounding coefficient is fixed,
t1 = 0.5 set ramp time (linear)
t2 = set ramp time (round)
t3 = 1.5 set ramp time
rPS
• Ramp switching commutation
nO
nO
LIH
L2H
L3H
L4H
LIL
L2L
L3L
L4L
• Not assigned
• L1H: LI1 active High
• L2H: LI2 active High
• L3H: LI3 active High
• L4H: LI4 active High
• L1L: LI1 active low
• L2L: LI2 active low
• L3L: LI3 active low
• L4L: LI4 active low
See LI assignment information on page 45.
