3.5 Installation Procedure

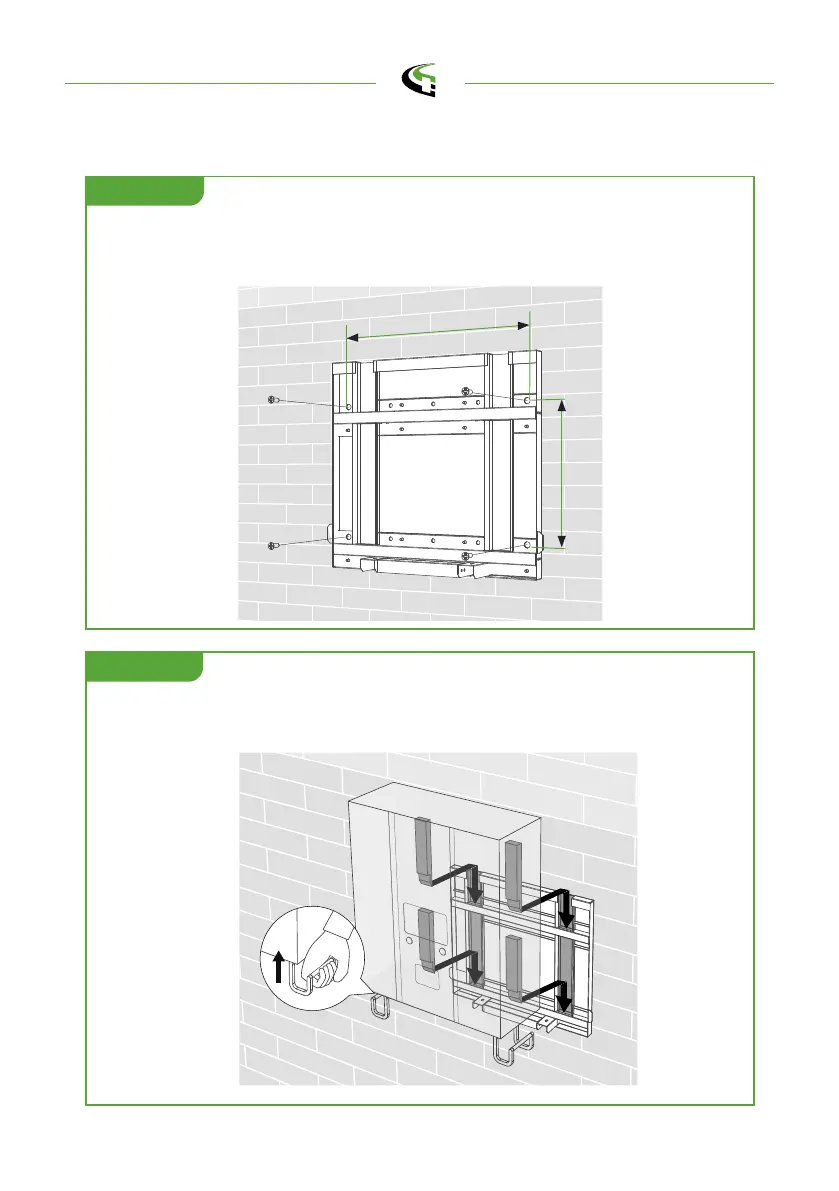

Place the wall-mounted bracket between 600mm (24 inches) and 1.2m (4
feet) above the floor, and then attach 4 pcs 3/8 ” expansion screws to the
wall-mounted bracket. (Unit: mm)
Unit: mm
STEP 1.
STEP 2.
Install the four tenons on the rear side of the charger into the grooves on the
wall-mounted bracket.
510
345
SCALE 0.500
