18

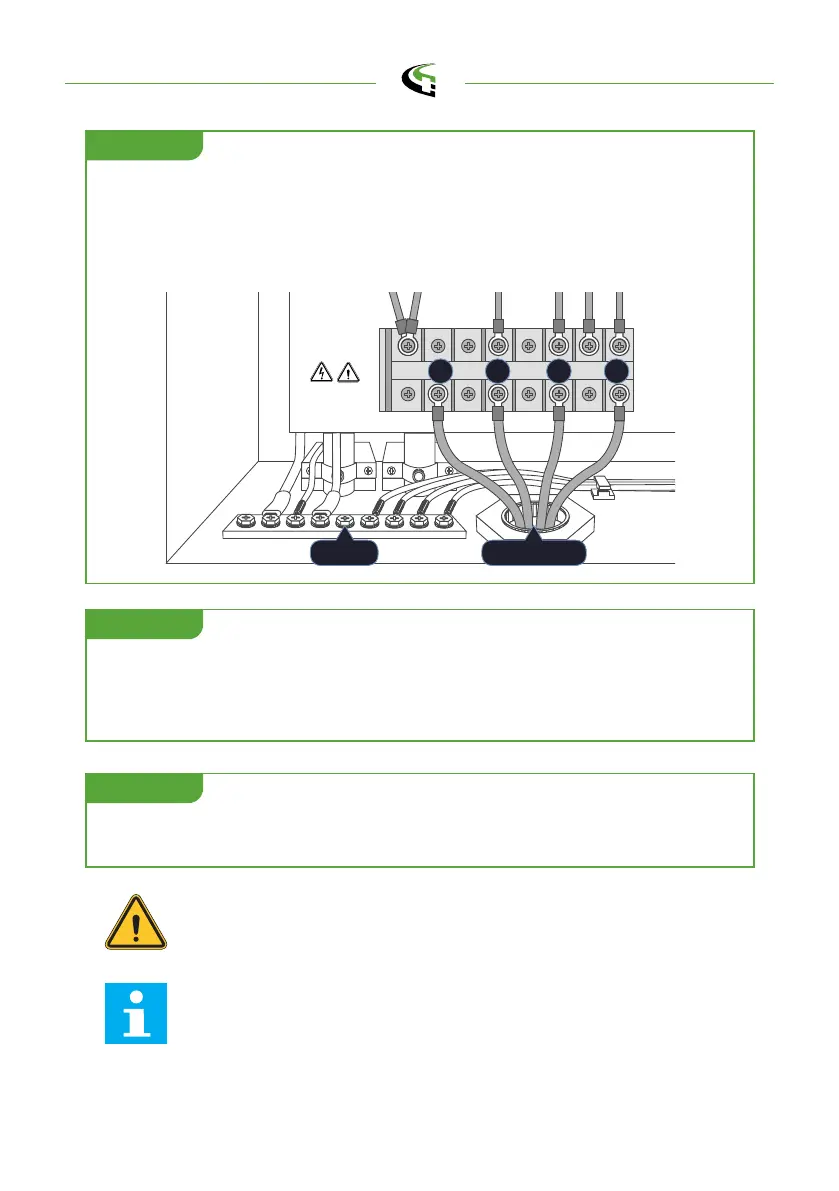

Fasten L1, L2, L3 and N wires onto the 4P terminal with M6 screws, torque
,wercs 5M htiw rabsub eht ot eriw EP netsaF .sces 51-5/mc.fgK03 :ecrof
torque force: 27Kgf.cm/5-15 secs. Keep proper length of each wires then fas -
ten cable grand.
Fasten L1, L2, L3 and N to an external beaker. Recommended breaker spec.:
rated current shall be 50A, B Curve type; with max. Residual leakage current
(RCD) shall be 30mA, type A.
STEP 3.
STEP 4.
L1L2L3N
PE AWG#4 x 4
Turn on the power source and operation screen will be ready within 30
seconds.
STEP 5.
Not following installation instruction will cause charger damage.
A 50A NFB with 30mA RCD-Type A is recommended.
