BLU-JET AT6020 - GDI Lift Kit

153
AT6020
NH3 Ground Drive Injection Pump Model GDI 200
Parts (Optional Lift Kit)
NOTE: Restrictor
(19) must be installed
between hydraulic
hose and adapter (18).

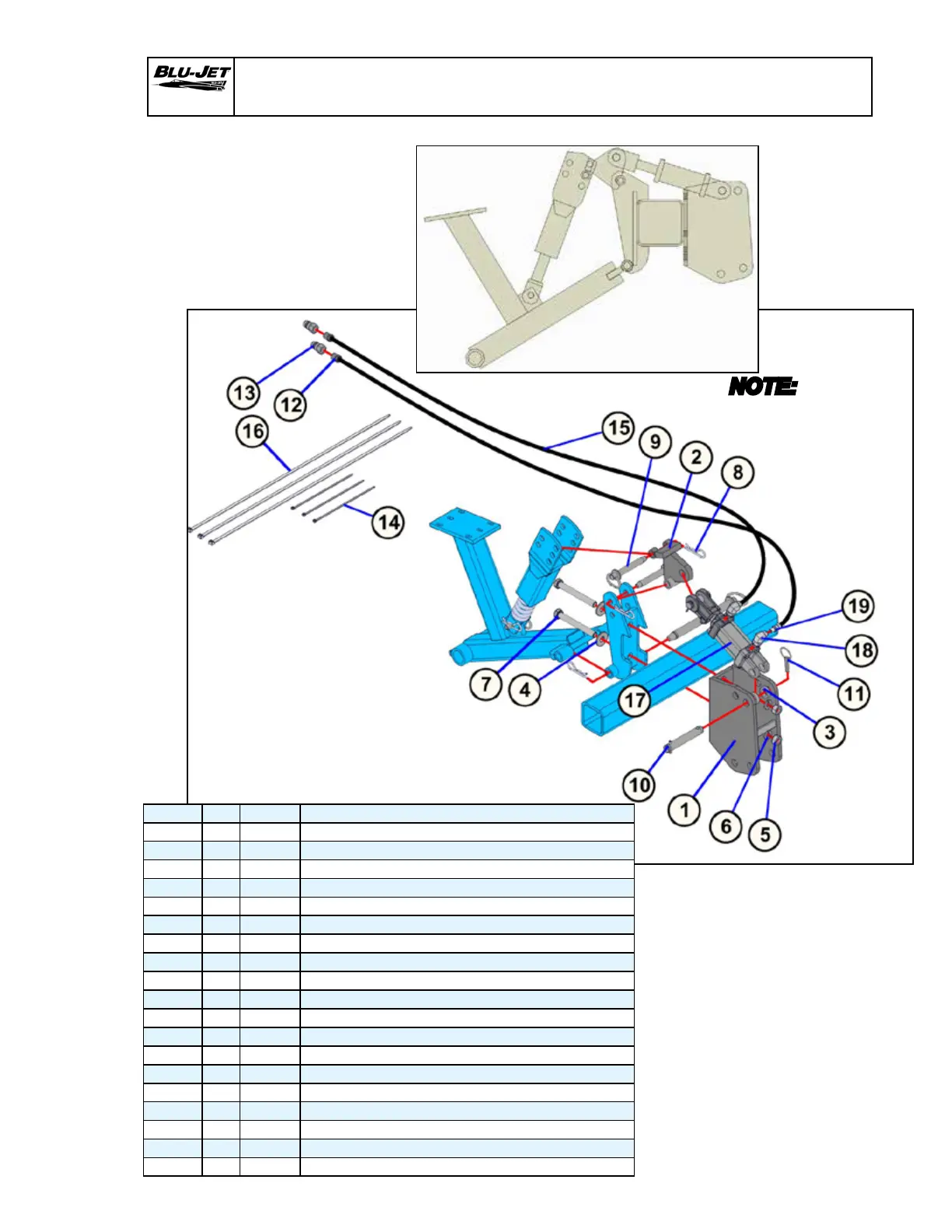

Lift Kits, 20200100,(20200101 less hoses), 6”x 6” Bar
BOM ID Qty Item No Description
1 1 AM4569 BRACKET, UNIVERSAL MOUNT GDW HYDRAULIC LIFT
2 1 AM4571 BRACKET, CYLINDER LINKAGE PIVOT GDW HYDRAULIC LIFT
3 2 AM4596 BUSHING, 1-1/2” X 1.024” X 1/2” OAL
4 2 BP3033 WASHER, FLAT, 3/4”, PLATED
5 2 BP3034 NUT, HEX, 3/4”-10, GRADE 2, PLATED
6 2 BP3035 WASHER, LOCK, 3/4”, PLATED
7 2 BP3095 HEX CAP SCREW, 3/4”-10 X 8”, GRADE 5 PLATED
8 1 BP3500 PIN, HAIR CLIP, 3/16”
9 1 BP3502 PIN, HITCH, 3/4” X 4-1/2”
10 1 BP3508 PIN, CATEGORY II TOP LINK, 1” X 4-5/8”
11 1 BP3517 LYNCH PIN, 7/16”
12 2 DP4006 ADAPTER, 8MP-4FP, 5406-8-4
13 2 DP4007 MALE TIP 1/2” QUICK COUPLER 8FP
14 3 DP4086 CABLE TIE 11-3/8”
15 2 DP4096 HOSE, HYDRAULIC, 1/4” X 264” (22’) 4MP-4MP
16 3 DP4296 CABLE TIE 33”
17 1 DP4311 2” X 2” HYDRAULIC CYLINDER
18 2 DP4400 ELBOW, 8MSAE-4FPX, 90°
19 1 DP4401 ADAPTER, 4MP-4FPX, W/ 0.031 RESTRICTOR
