Task Procedures Illustrations
262
AT6020

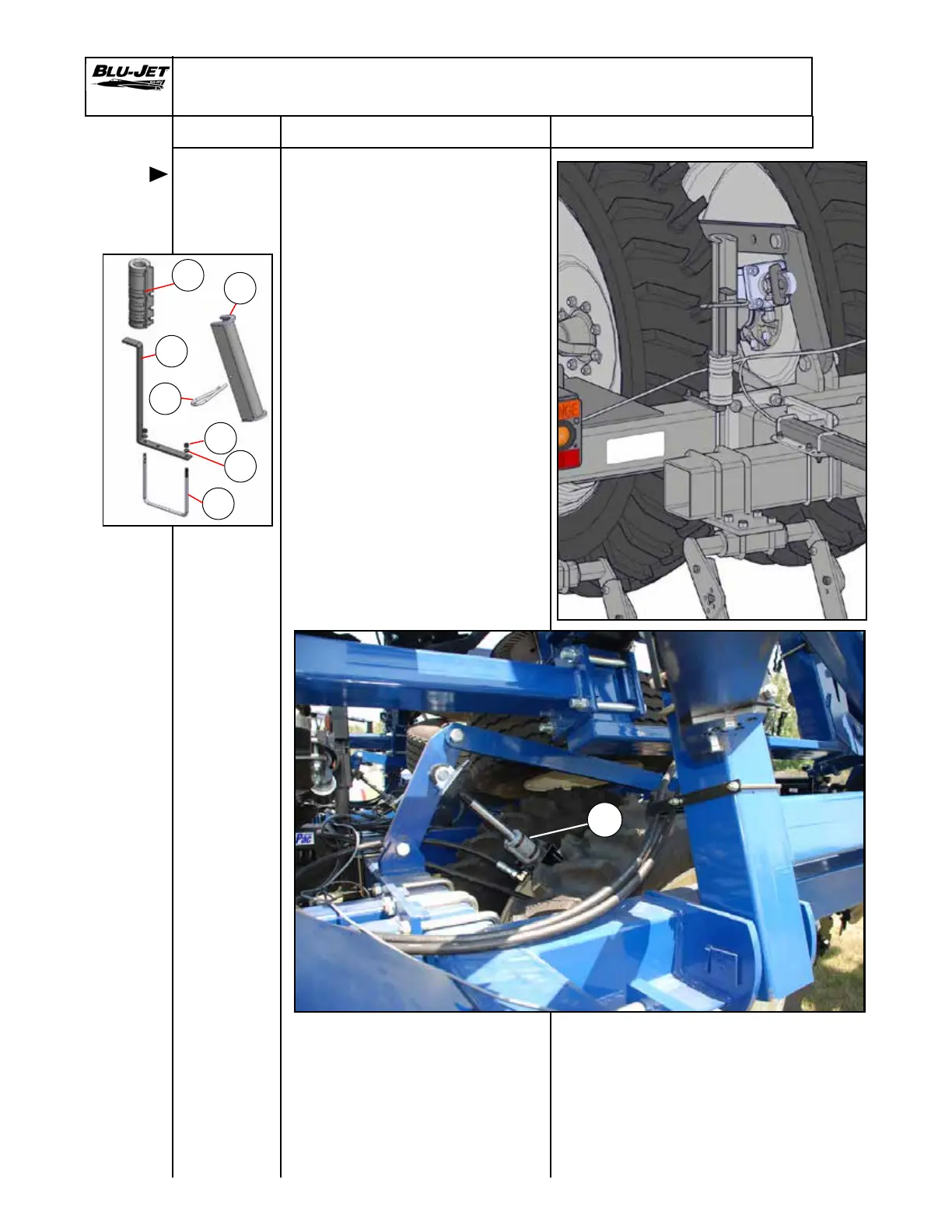

Depth Collar Mounting
Mounting
depth
collar
brackets
1. Attach (a) (AM2090) depth
collar & storage lockup
bracket to rear main frame
center section near the wheel
lift linkage. Secure with (b)
(BP3351) 3/8” x 6” x 7” u-bolt,
(d) (BP3002) 3/8” lock washers
and (c) (BP3001) 3/8” hex
nuts.
Place (e) (BP3076) 1-1/4” to
1-1/2” winged depth collar sets,
(f) (AM6200) transport cylinder
lock, 1-3/8” rod with (g) (BM3520)
5/16” clip pins, on storage
brackets.
e
a
c
d
e
b
g
f
