235
Task Procedures Illustrations
Task Procedures Illustrations
AT6020
Mounting
bolt-on
nurse
tank hitch
mounting
bracket

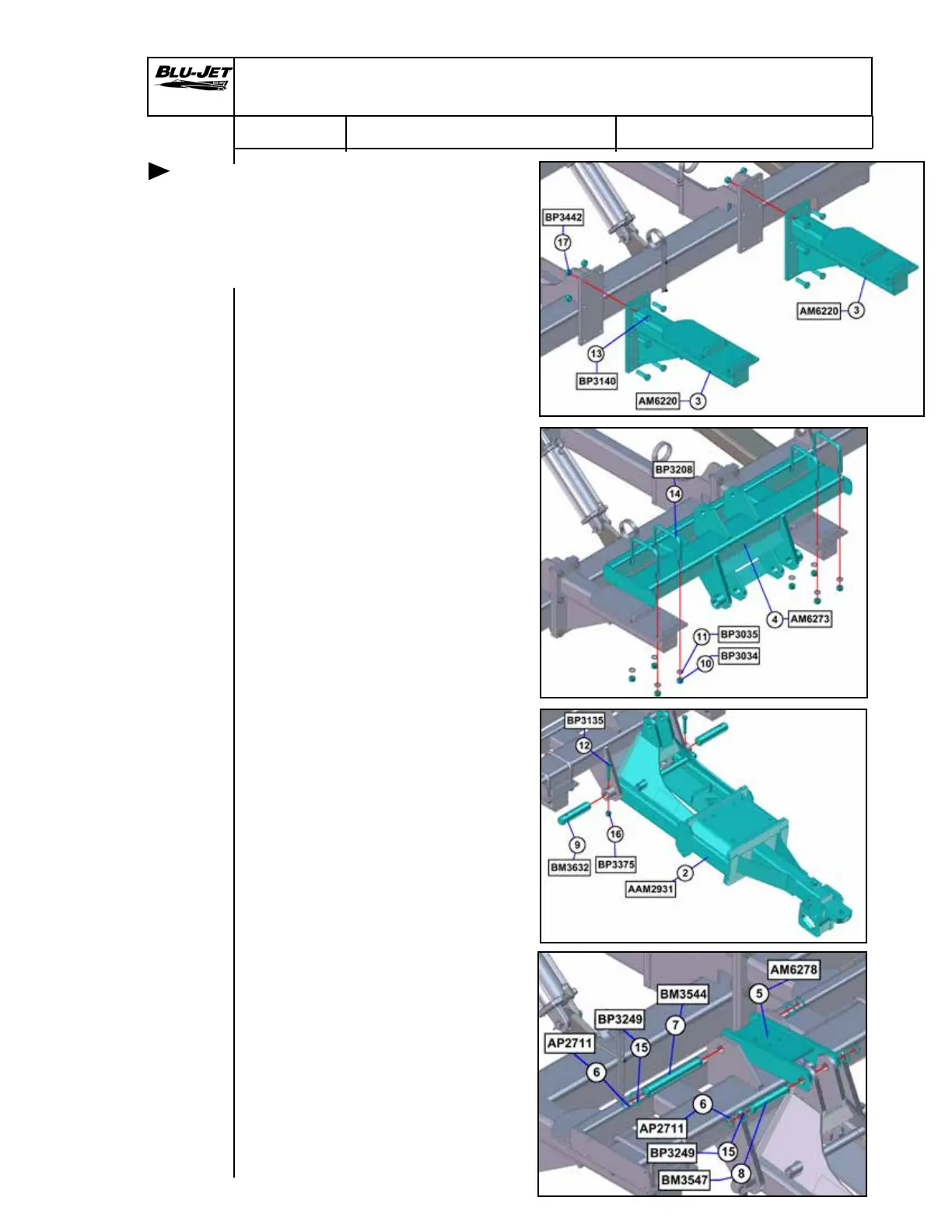

1. Mount (3) (AM6220) nurse
tank mounting brackets to
main frame with (13) (BP3140)
3/4” x 2-1/2”, grade 5, hex cap
screws and (17) (BP3442) 3/4”
hex lock nuts.
2. Position (4) (AM6273) nurse
tank hitch mounting bracket
on (3) between stops.
Secure with (14) (BP3208)
3/4” x 6” x 5-11/16” u-bolts,
(11) (BP3035) 3/4” lock washers,
and (10) (BP3034) 3/4” hex
nuts.
3. Attach (2) (AAM2931) hitch
assembly, Auto-lock nurse
tank with (9) (BM3632) upper
link category IV pins. Secure
with (12) (BP3135) 5/8” x 3-1/2”
grade 5, hex cap screws and
(16) (BP3375) 5/8” hex lock,
Nylock.
4. Mount (5) (AM6278) nurse tank
hitch linkage 12-3/4” to (4)
(AM6273) nurse tank hitch
mounting bracket, center
weldments with (7) (BM3544)
1-1/4” x 9” pin. Secure with
(15) (BP3249) 1-7/8” OD x
1-1/4” ID machinery bushings
and (6) (AP2711) 1-1/4” external
snap rings on both ends.
5. Raise (2) (AAM2931) hitch
assembly, Auto-Lok nurse
into (5) (AM6278 nurse tank
hitch linkage 12-3/4”.
Secure with (15) (BP3249)
1-7/8” OD x 1-1/4” ID machinery
bushings and (6) (AP2711)
1-1/4” external snap rings on
both ends.
PKG00234 Nurse Tank Hitch Assembly Parts
