Task Procedures Illustrations
Task Procedures Illustrations
AT6020

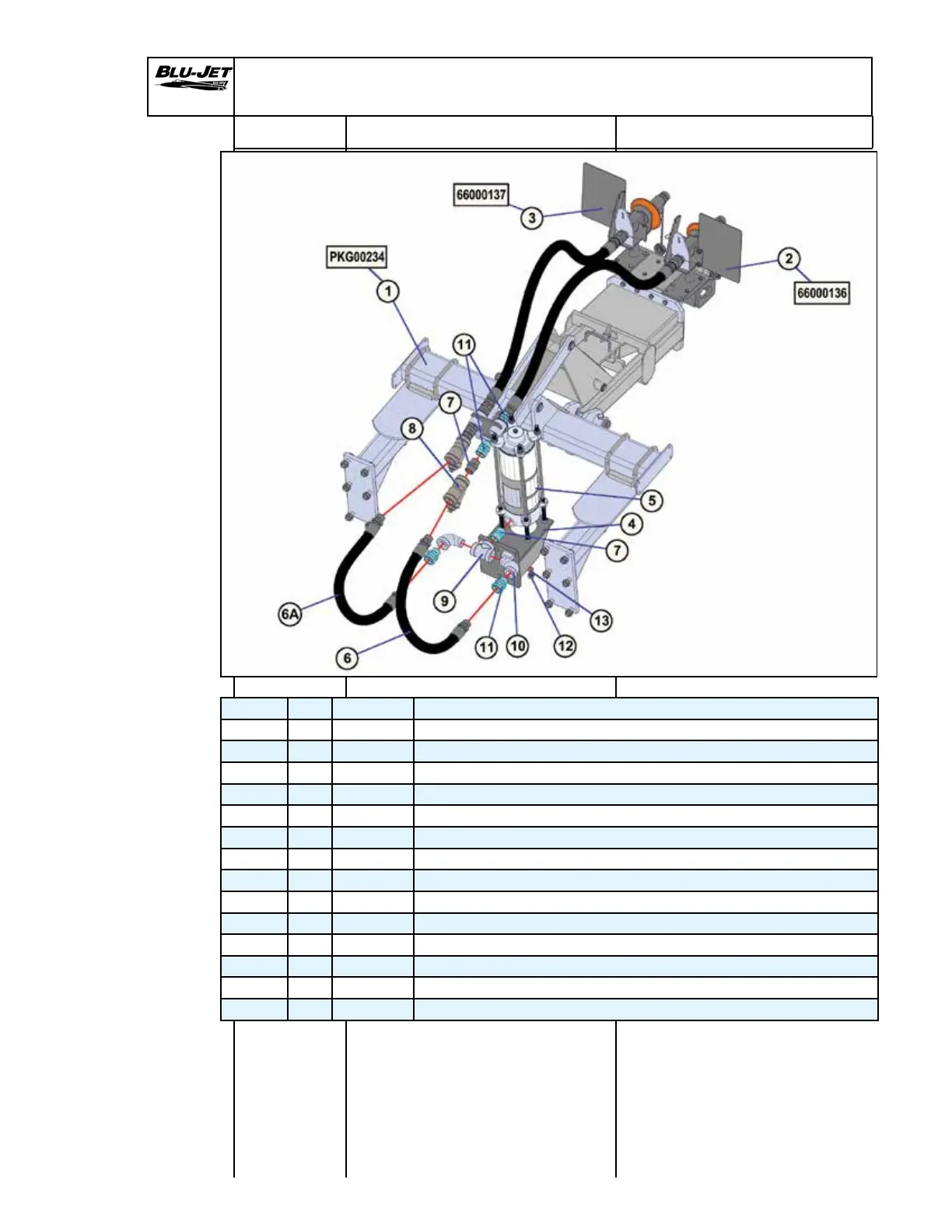

GDI 200 With Twin Pump Distribution (Rear Mount)
Parts (Bundle 20200121)
BOM ID Qty Item No Description
1 1 PKG00234 NURSE TANK HITCH ASSEMBLY
2 1 66000136 SUPERSHOOTER III SINGLE ASSEMBLY
3 1 66000137 DUAL SUPERSHOOTER III ADD-ON ASSEMBLY, WITH HARDWARE & HOSE
4 1 AM4553 HEAT EXCHANGER MOUNTING
5 1 CCP2755 HEAT EXCHANGER ASSEMBLY
6 1 CP2520 HOSE, NH3, 1-1/4” X 36”
6A 1 CP2520 HOSE, NH3, 1-1/4” X 36”
7 2 CP2522 NIPPLE, HEX, 1-1/4” NPT, 3000 PSI
8 1 CP2870 STRAINER, NH3, 1-1/4” FPT 20 MESH, CONTINENTAL
9 1 DP4037 TEE, 1-1/4”
10 2 DP4041 ELBOW, STREET, 1-1/4”
11 4 DP4397 SWIVEL, 1-1/4” MP X 1-1/4” FP
12 8 BP3038 NUT, HEX, 5/8”-11, GRADE 2
13 4 BP3039 WASHER, LOCK, 5/8”, PLATED
Generic Assembly
